Detex V40 ER - Manual

- Glass Bead Kit
- Sex Nuts
- Tamper Kit
- Double Door Strike Kit
- Key Stop Kit
- Narrow Stile Kit
See
Optional Accessories
For:
V40
V40NS
Mortise cylinder not included with device.
Standard Yale type cam required.
* Note:
Parts listed above will vary
according to product
configuration.
*Narrow Stile "NS" option
DETEX
Power Supply
See Accessories
on Page 13
P/N: ED 102457-X
Centercase Cover
P/N: 101805-1
ER 102458-X
INSTALLATION INSTRUCTIONS FOR ARCHITECTURAL VALUE SERIES®
ELECTRIC DOGGING / ELECTRIC LATCH RETRACTION AND "H" MODELS (HURRICANE)
ED Electric Dogging
ER ELECTRIC LATCH RETRACTION
P/N: 100408-11 (3-0)
P/N: 100518-11 (3-0 EXT)
P/N: 100417-11 (4-0)
P/N: 100554-11 (4-0 EXT)
P/N: 100480 P/N: 100482
98 Strike *, P/N: 100855-1
P/N: 100234-1 P/N: 100088
Mortise Strike
Mortise
Strike Shim Non-Roller Strike Strike Shim
P/N: 101899 P/N: 100212
2" Narrow Stile
Plastic Template Plastic Template
Standard

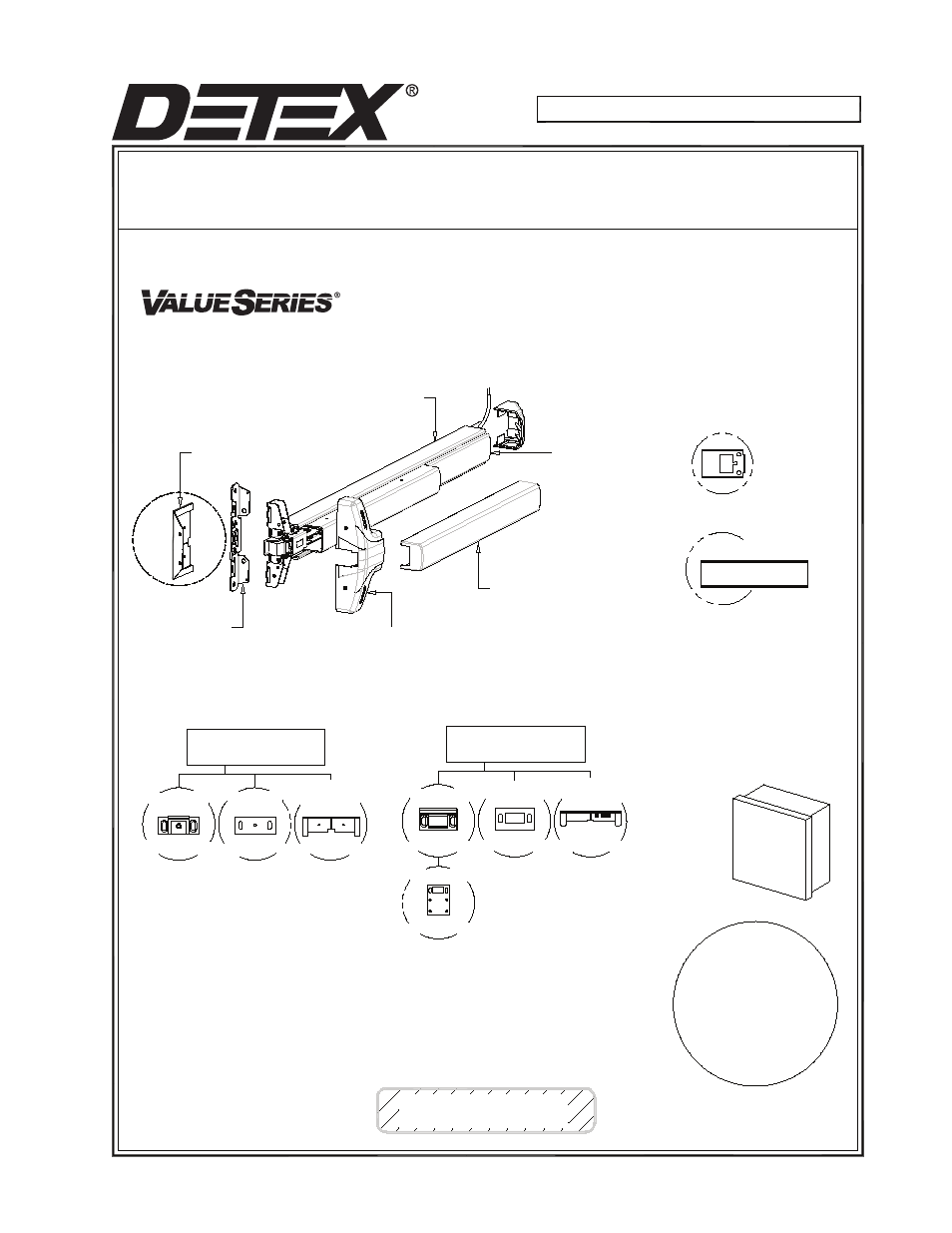

Parts Check List
Centercase/Pushpad/Module SubAssembly
Mounting plate
Subassembly
P/N: 100696-1
Use for ease of installation
Plastic Template
P/N: 101822
Endcap
Endcap Bracket
Fillerplate (ER/ED)
P/N: 100481
Strike Shield
103104 PAGE 1
Owner's Copy
U.S. PATENT NUMBERS:
6009732
6205825B1
6532777B2
INTERNATIONAL PATENT NUMBER:
PCT6009732
Fillerplate SubAssembly
P/N: 101815-2 (4-0)
P/N: 101810-2 (3-0)
Pushpad Wrap
99 Strike *, P/N: 100855-2
P/N: 101821
RIM
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com
V40
103104 January 20, 2009
