Carrier Access 770-0015 AM - Manual (Page 41)

IP Router - Release 1.8 3-11
Profile Directory: Router Card Profile
SNMP

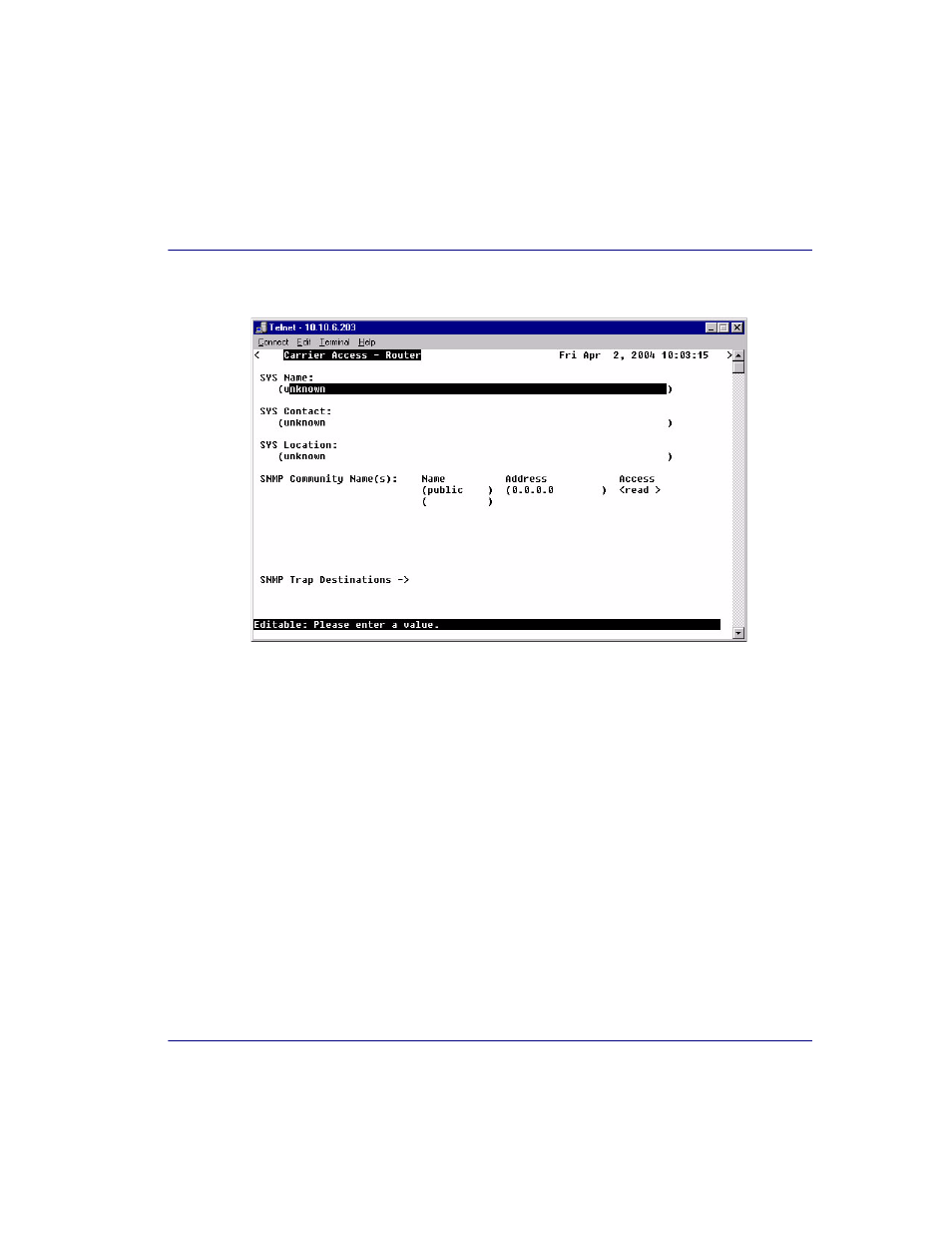

Use the SNMP setup window to setup SNMP configurations.
SYS Name
Set the value of sysName. Value has a maximum of 64 ASCII characters.
SYS Contact
Set the value of sysContact. Value has a maximum of 64 ASCII characters.
SYS Location
Set the value of sysLocation. Value has a maximum of 64 ASCII characters.
SNMP Community Name(s)
Use these fields to specify the community name, address and access privileges of devices
needing to communicate with the Local (LAN) Unit through SNMP. If no IP Addresses is
defined on this screen, any device may access the local unit using the IP Address assigned on
the Local (LAN) Profile Setup screen, regardless of the specified community name. The values
entered in these fields will be used by the SNMP program as verification of entry into the IP
Router.
SNMP
Setup
Window
