IP Router - Release 1.8 6-7
Basic Configuration
WAN Interface Connections
WAN Interface Connections

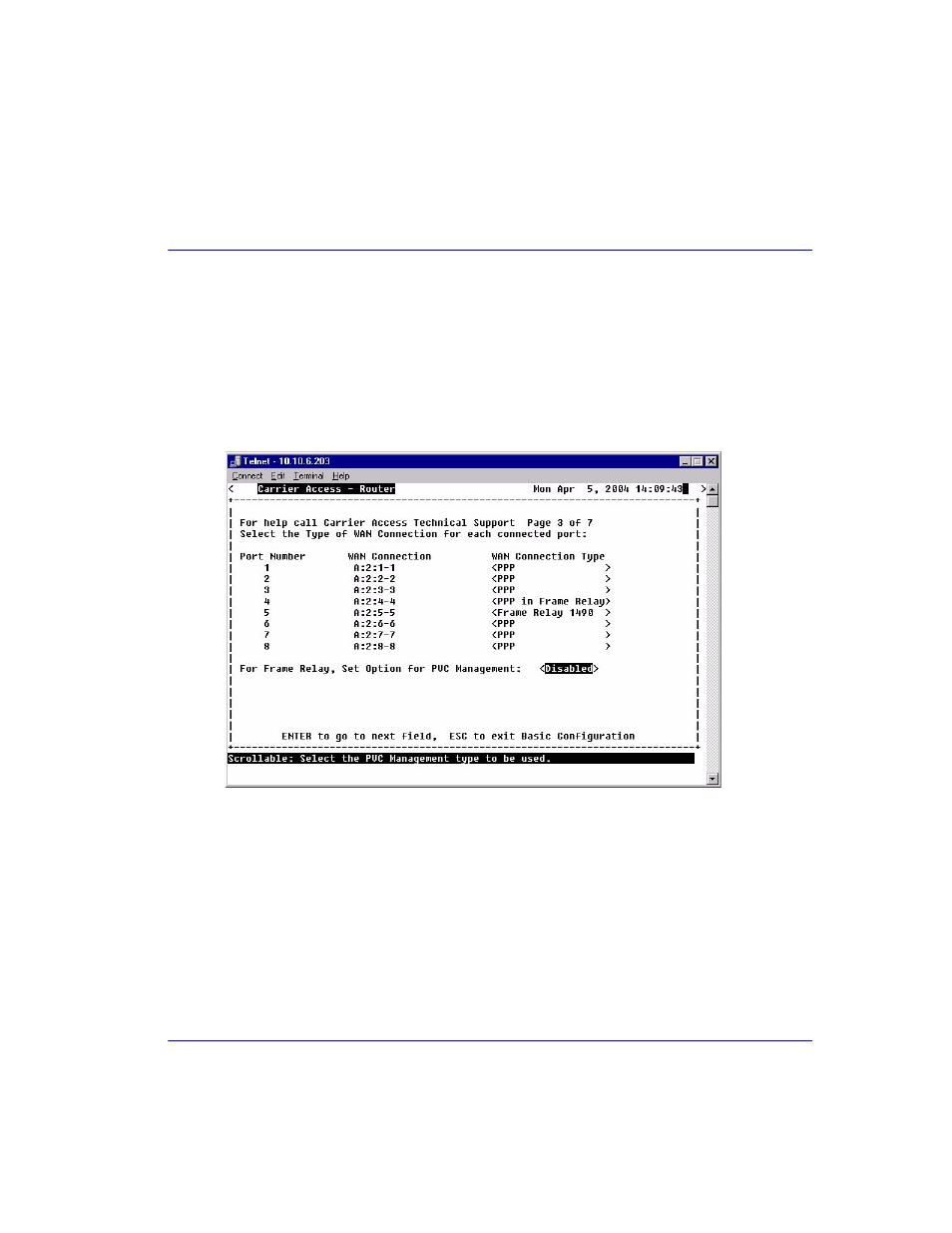

This screen will display the Port Number and connection information of existing
WANs.Whe window displays one WAN initially, as you set the connection type and
then hit [E
NTER ] the next WAN will display.
Note: You are not allowed to back up to the previous WAN on the list. This screen will
only hold 8 WANs on a page, additional pages are added as needed.
Port Number
Displays the Port Number of the WAN (1-24).
WAN Connection
Displays the connection {slot:port:channel} of each existing WAN.
WAN Connection Type
Selection is: , and .
