IP Router - Release 1.8 7-3

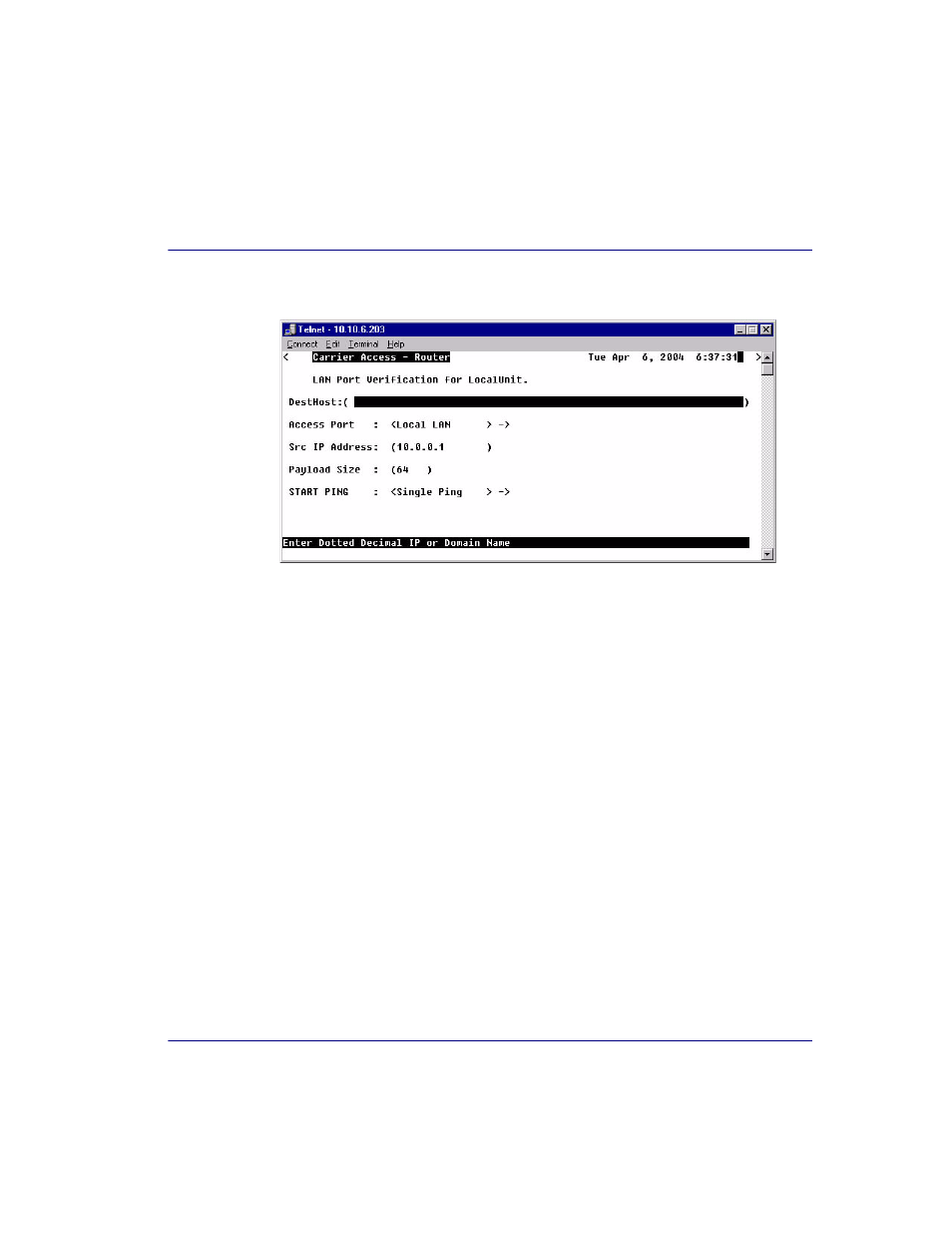

Verification Window
Ping Utility
2. Press [E NTER ]. The Ping Utility window will display.
3. To initiate a Ping, select START PING , scroll to
if desired and press [E NTER ]. The Ping process will
begin.
LAN Port Tests Fields
Dst Host
Destination Host. The Destination Address of the host to be tested.
Access Port
This is the local or remote profile of the network used during the test. The operator can scroll
(with the
[S PACEBAR ] ) through the selections of the Access Port: to select the
Local LAN or any of the defined Remote Unit(s). All defined Remote Profiles will be in this
selection.
Src IP Address
Source IP Address. This is one of the multiple IP addresses assigned to the Ethernet LAN port
and will override the IP address that will be used as the source IP address. Default is to use the
IP address of the interface from which the ping is sent.
Payload Size
This optional parameter sets the number of bytes to send in the ICMP echo request payload.
Range is 0 to 8000, default is 56.
