5-20 IP Router - Release 1.8
Profile Directory:Remote Profile
Static/VPN Networks
5. Press [C TRL A] to add a Static IP Network. Enter Network Address, Subnet
Mask and Metric value. Note: this window displays additional fields
depending on the field setting for GRE Tunnel (on the Remote Profile
window).
Static/VPN Networks Fields
Setup Static
Enter the Subnet IP Address. Note: The host bits should all be zero.
Enter the Hexidecimal Address. Note: The host bits should all be zero.
Network
Enter the Subnet IP Address. Note: The host bits should all be zero.
Subnet Mask
Enter the Subnet Mask of the Network IP Address.
Metric
Enter the distance, in hops, to the network. Value must be between 1-15.
VPN Features
GRE Tunnel
Displays the Tunnel Name defined on the VPN setup window.
Encrypt
Not supported in this release.

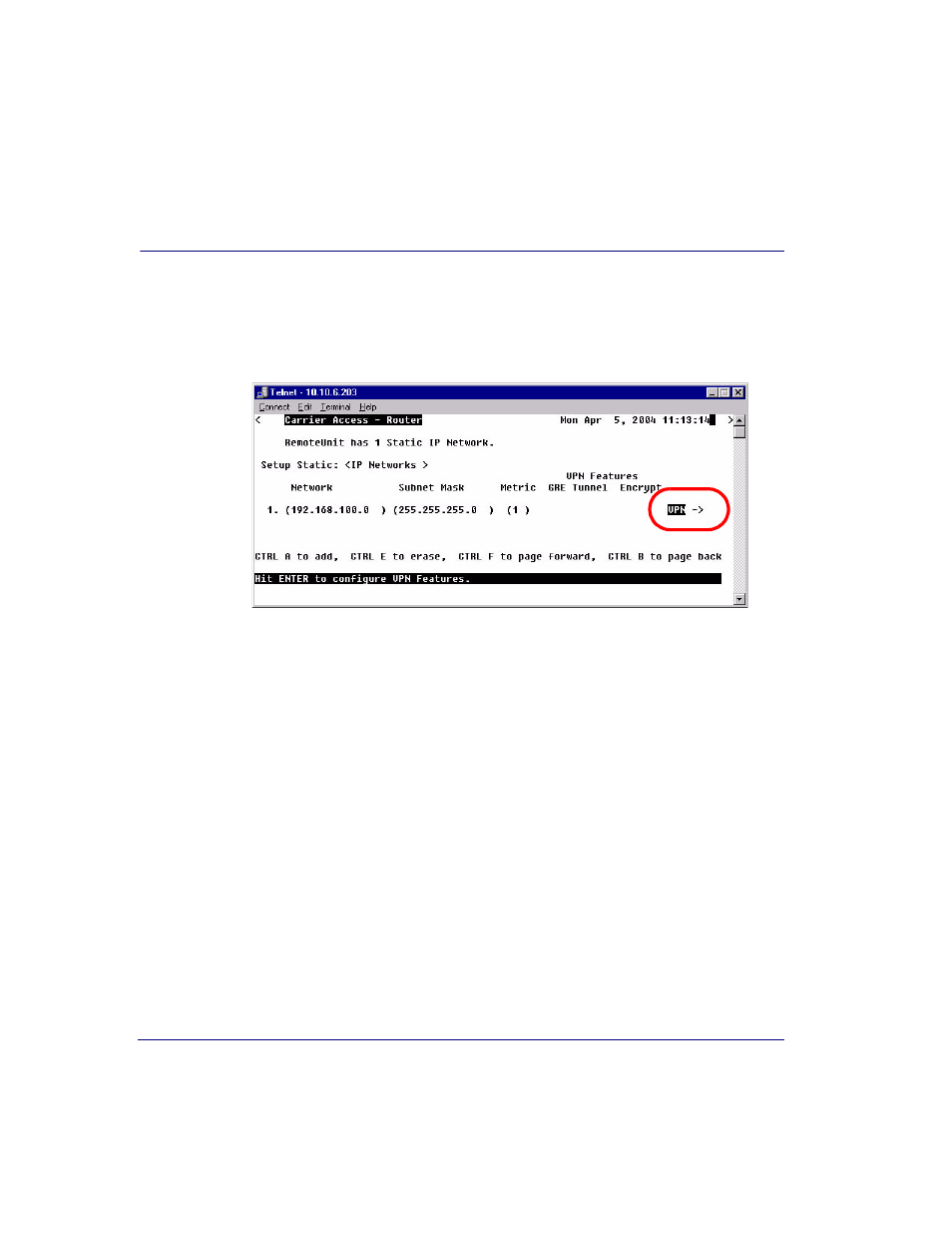

Static/
VPN
Networks
Window
