6-4 IP Router - Release 1.8
Basic Configuration

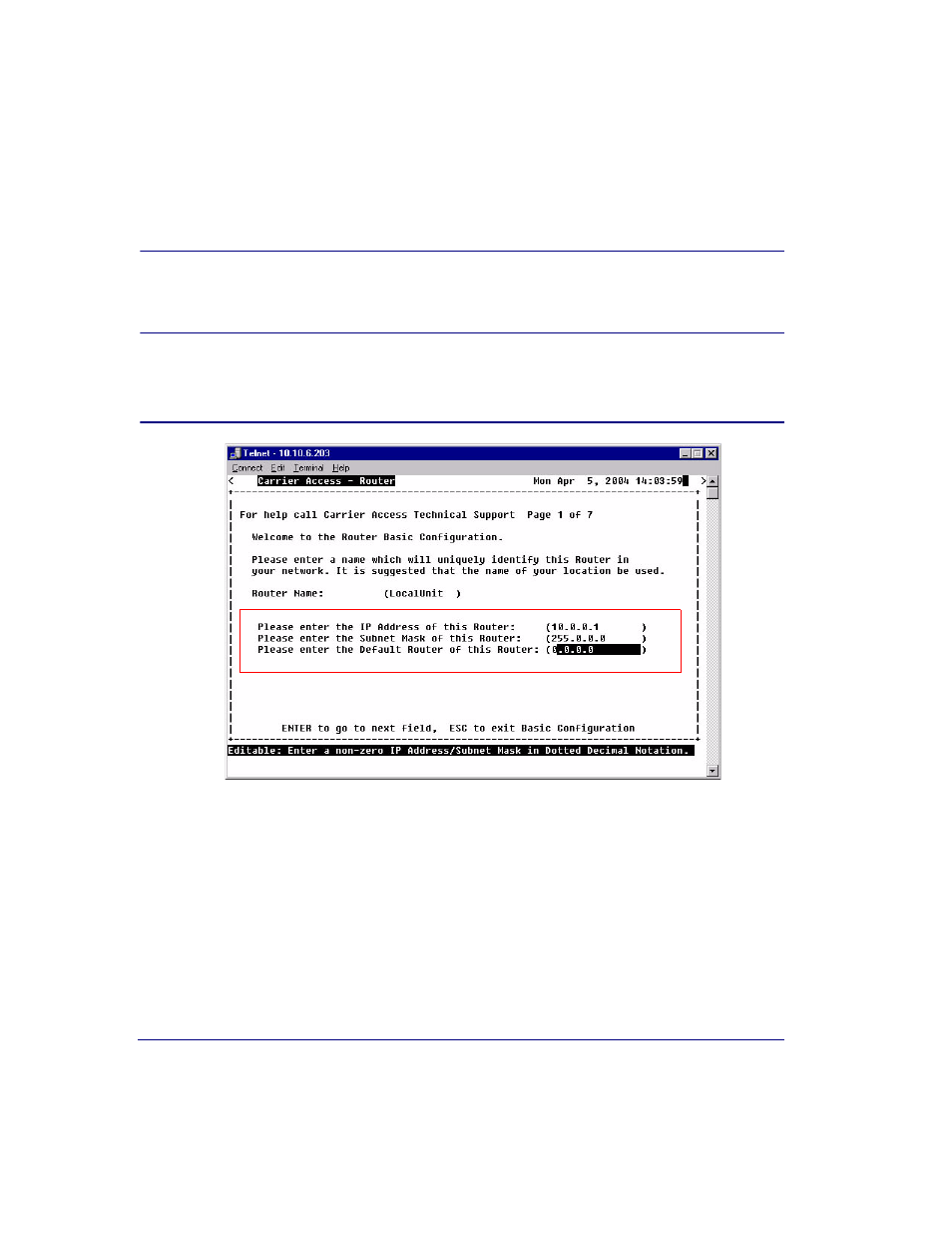

Router Identification
Router Identification
NOTE: When this window is opened the items below in the box are not
displayed. As you fill in information or accept the current (default)
information (by hitting
[E NTER ] ) the next line will display. This is the same
process that you will find on all of the windows in the Guide.
Router Name: (LocalUnit )
Enter a unique name for the Local Unit. Name can be up to 11 characters.
Router IP Address
Enter the IP Address of the Router.
Router Subnet Mask
Enter the Subnet Mask of the above IP Address.
Router Default Router
Enter a default Router IP Address.
