9-10 IP Router - Release 1.8
System Reports Window
Address Tables

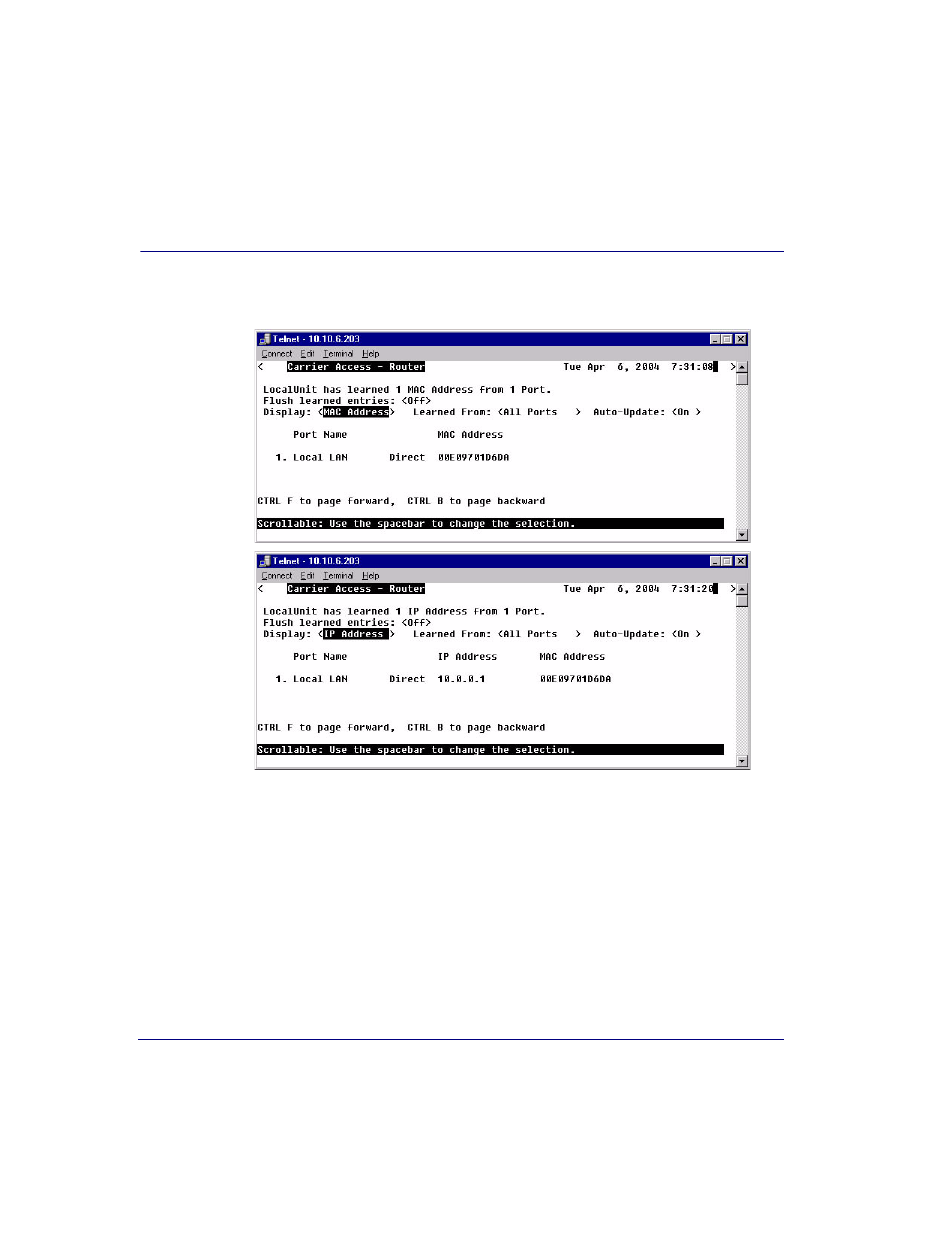

3. Press [E NTER ]. The Address Tables window will display. These windows
will change as different options are selected.
Flush Learned Entries
This field will eliminate all the learned entries from either the table or the
table when the field is changed from to . Use the
[S PACEBAR ] to
scroll to the selection.
Display
Use this field to select to view the address table by or . Use the
[S PACEBAR ] to select the appropriate view. The screen will update accordingly as you scroll
between options. When the view by IP Address is selected, the table may also display the
corresponding MAC Address for locally learned devices. Corresponding MAC Addresses are
only displayed if the Router has encountered an ARP/RARP packet.
MAC
Address
IP
Address
