Installing the 2H22-08R
2H22-08R SmartSwitch 2208 User’s Guide
Page 3-5

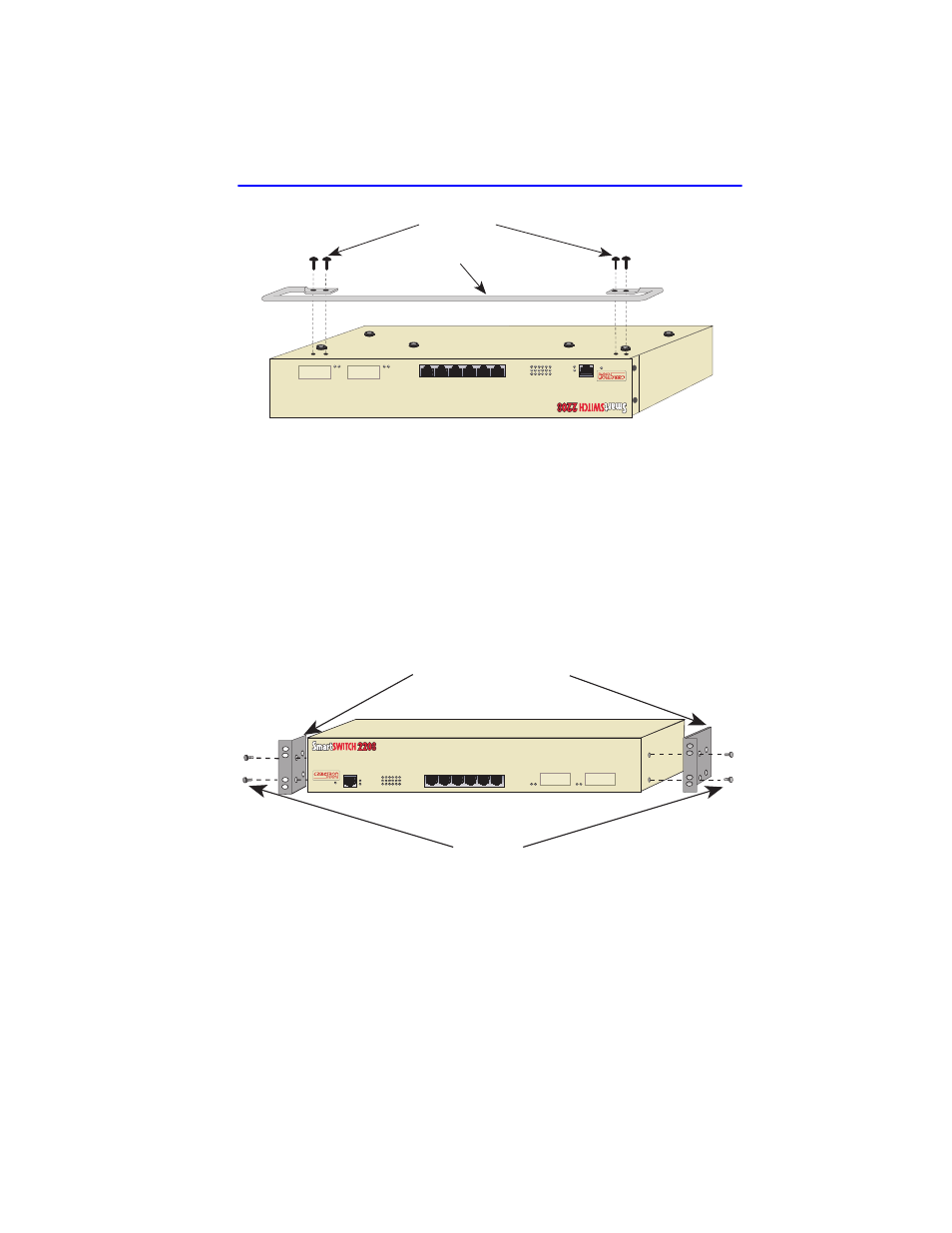

Figure 3-2
Attaching the Strain-Relief Bracket
Rack Mounting the 2H22-08R
Proceed as follows to install the 2H22-08R into a 19-inch rack.
1.
Remove and discard the four cover screws (two from each side)
located along the front edges of each side of the 2H22-08R.
2.
Locate the four 6-32 x 3/8-inch flathead cover replacement screws in
the rackmount kit. Use these screws to attach the rackmount brackets
to the 2H22-08R as shown in
Figure 3-3
Installing the Rackmount Brackets
3.
With the mounting brackets installed, position the 2H22-08R between
the vertical frame members of the 19-inch rack and fasten it securely
with user supplied mounting screws as shown in
Strain-Relief Bracket
Screws (4)
2251-47
7
8
1X
5X
6X
4X
3X
2X
2
1
6
5
4
3
PWR
CPU
COM
RESET
2H22-08R
Screws (4)
Rackmount Brackets (2)
2251-04
7
8
1X
5X
6X
4X
3X
2X
2
1
6
5
4
3
PWR
CPU
COM
RESET
2H22-08R
