106 Removing and Installing Parts
www
.dell.com | support.dell.com

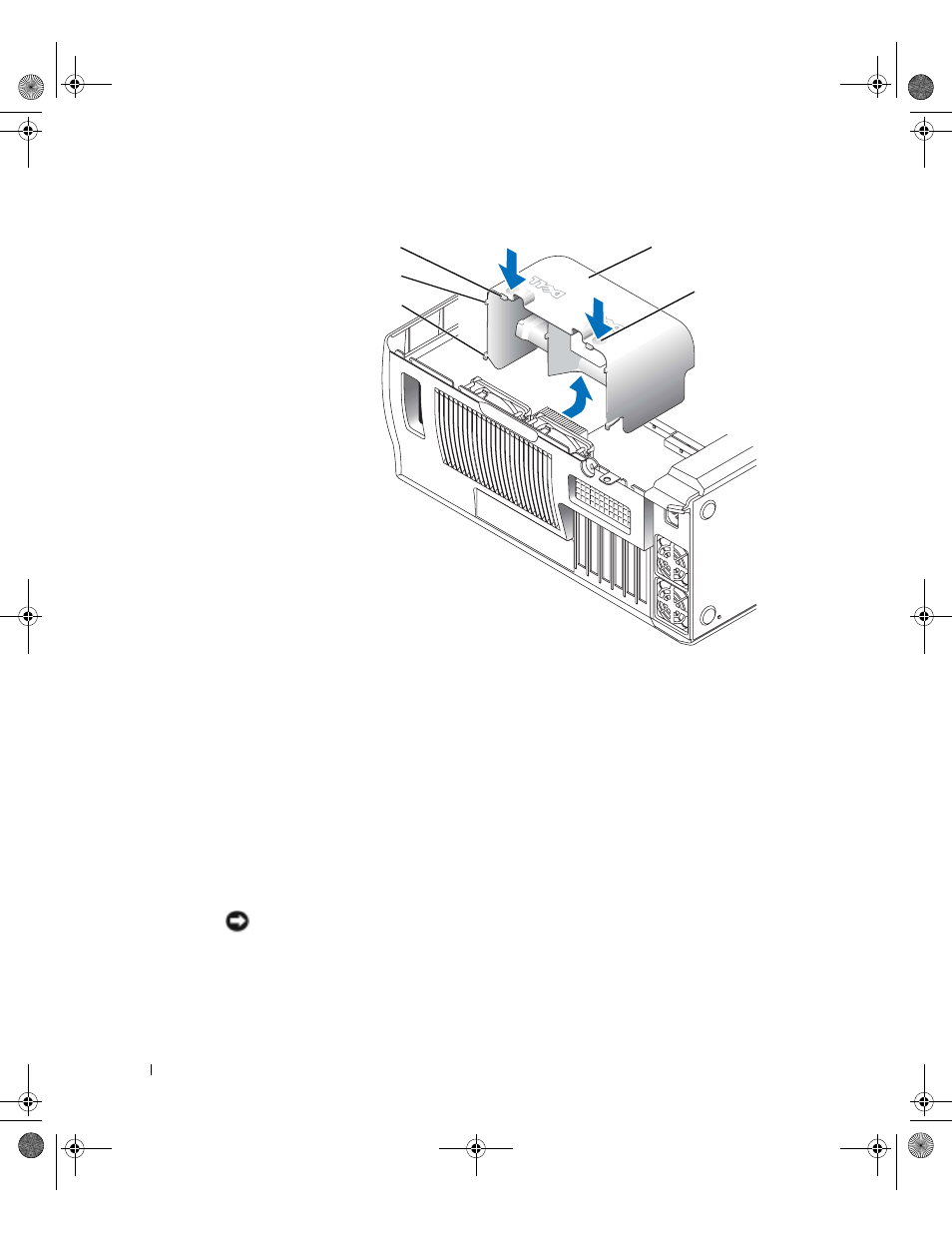

Installing the Microprocessor Airflow Shroud
1 Follow the instructions in "Before You Begin" on page 80.
2 Open the computer cover (see page 82).
3 Insert the bottom anchor tabs into the anchor slots.
4 Align and insert the side anchor tabs into the anchor slots.
5 Press the indentations until the top anchor tabs on the shroud snap securely into
place.
6 Close the computer cover (see page 117).
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then
plug it into the computer.
7 Connect your computer and devices to electrical outlets, and turn them on.
top anchor tabs (2)
bottom anchor tabs (2)
side anchor tabs (2)
airflow shroud
indentations
