5 Holding the card by its edges, position the card so that the card-edge
connector aligns with the expansion-card connector on the expansion-card
riser.
6 Insert the card-edge connector firmly into the expansion-card connector
until the card is fully seated.
7 Close the expansion-card latch. See Figure 3-8.

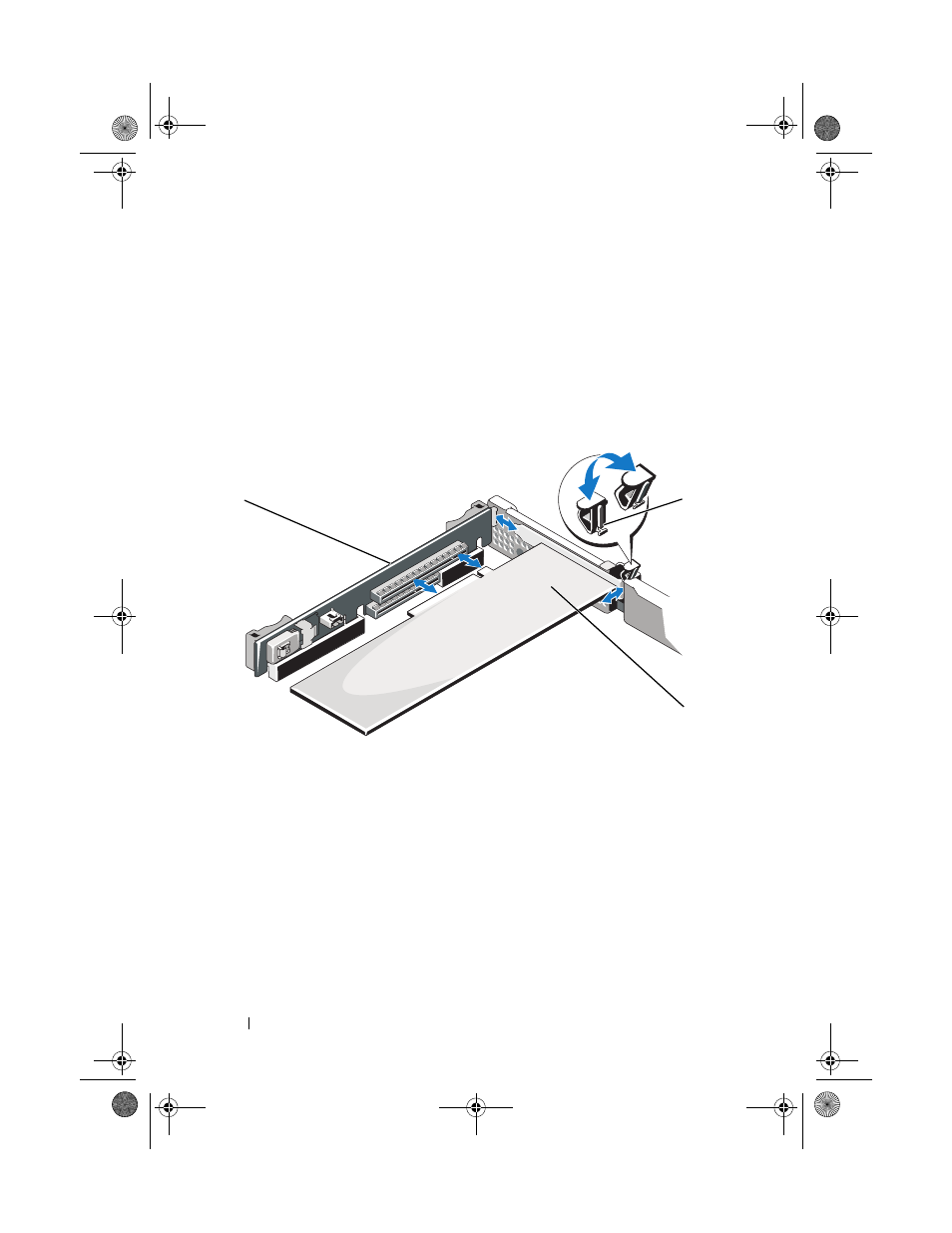

Figure 3-8. Removing and Installing an Expansion Card
8 Connect any cables to the expansion card.
9 Close the system. See "Closing the System" on page 81.
10 Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.
1 expansion-card latch 2 expansion card
3 expansion-card riser
