Installing System Components 99

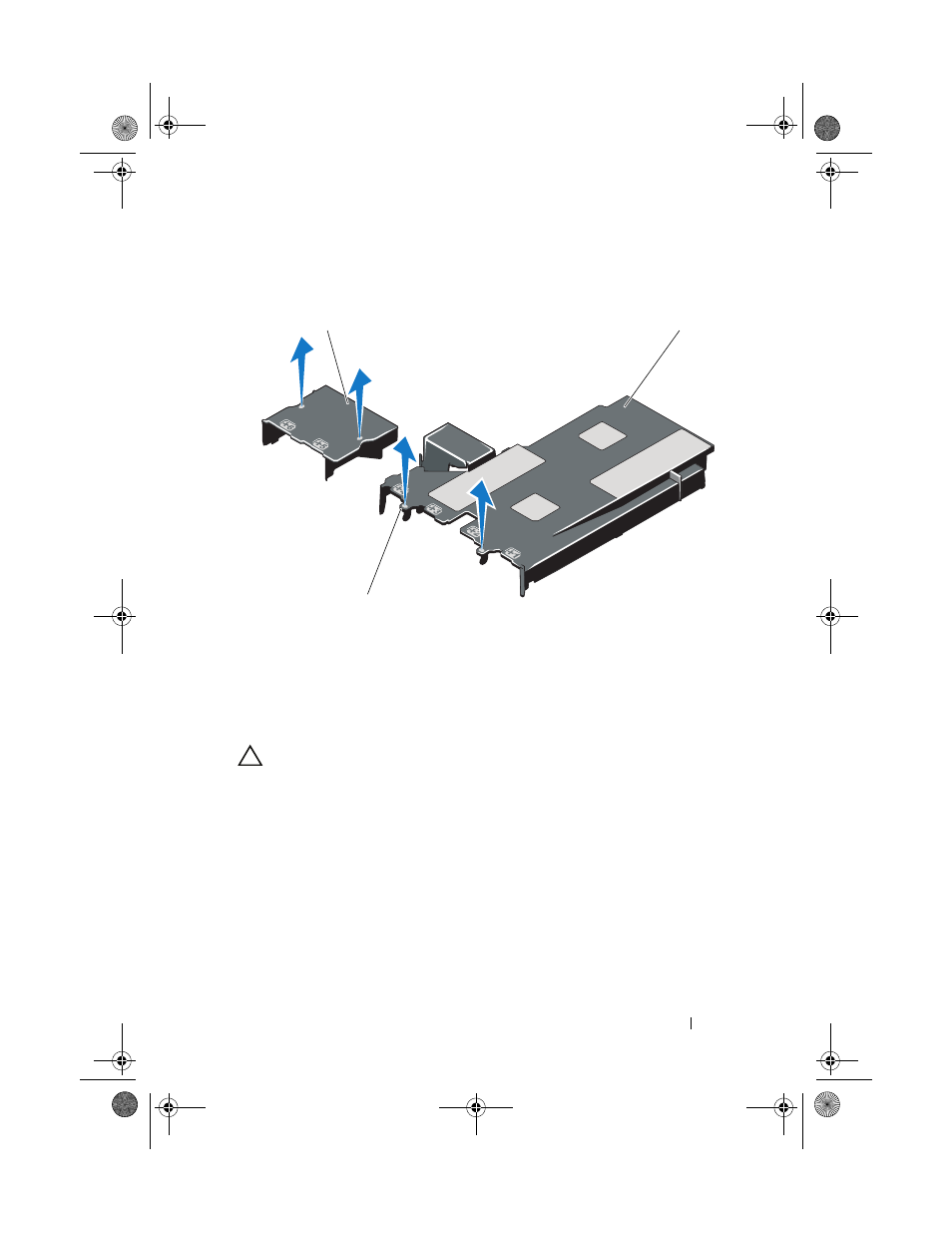

Figure 3-12. Removing and Installing the System Board Shroud
Installing the System Board Shroud
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 Align the shroud using center of the numbered fan bays as a guide and
locate the tab projection on the left side of the fan module numbered 3.
See Figure 3-12.
2 Push the system board shroud down until all edges are seated in the slots,
securing the shroud to the system board.
3 Close the system. See "Opening and Closing the System" on page 80.
1 power distribution board shroud 2 system board shroud
3 tabs (2)
1
3
2
