Figure 5-2 ).

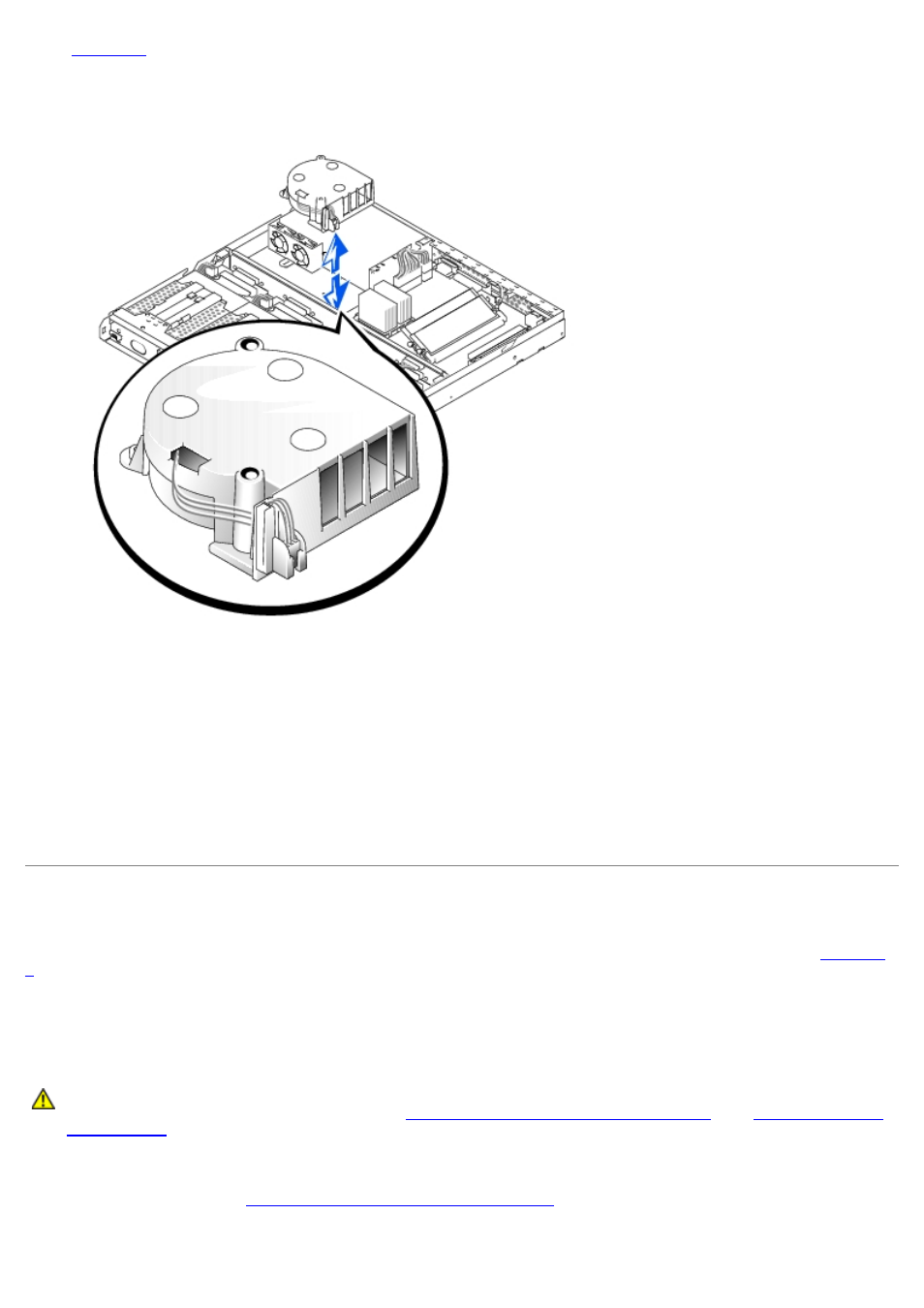

Figure 5-2. Removing the Fan Assembly
Replacing the Fan Assembly
1. Align the fan assembly with its connector on the system board and the peg on the chassis.
2. Push down on the fan assembly until it is connected to the system board.
3. Replace the system cover.
4. Turn on the system.
Expansion Card
The system has capacity for one, low-profile PCI expansion card. You install the card by using a riser card (see Figure 5-
3 ).
Installing an Expansion Card
To install an expansion card, perform the following steps.
CAUTION: Before you perform this procedure, you must turn off the system and disconnect it from its
power source. For more information, see " Safety First—For You and Your System " in " Troubleshooting
Your System ."
1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.
2. Remove the cover (see " Removing and Replacing the System Cover " in "Troubleshooting Your System").
