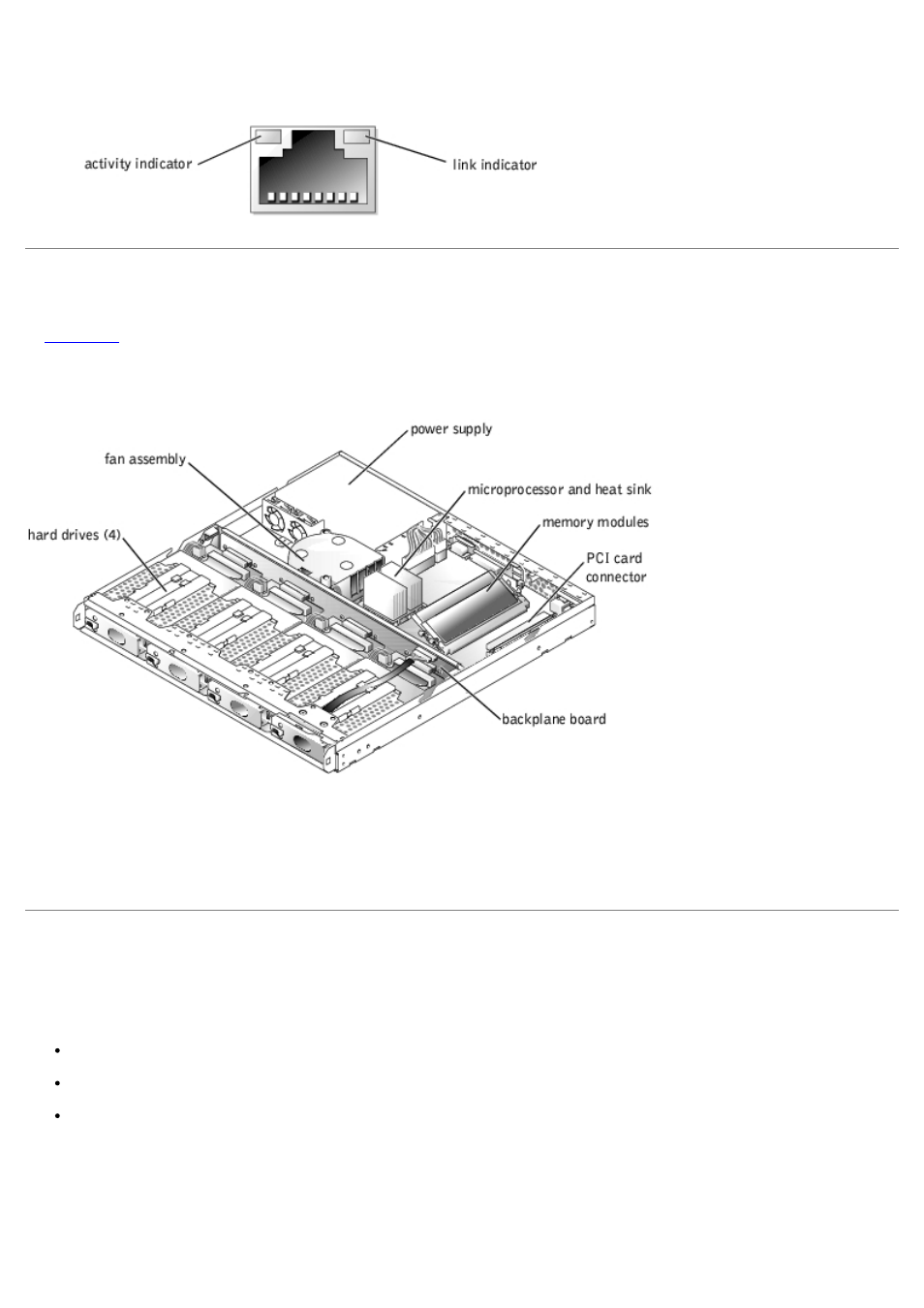

Figure 4-4. NIC Indicators
Inside the System
In Figure 4-5 , the system cover and front bezel are removed to provide an interior view of the system.
Figure 4-5. Inside the System
The system board holds the system's control circuitry and other electronic components. Several hardware options such as
the microprocessors and memory are installed directly on the system board. The system board can accommodate one PCI
expansion card.
The hard drive bays provide space for up to four drives. Power is supplied to the backplane board, the system board, and
internal peripherals through a power supply.
Troubleshooting a Wet System
Problem
Liquid spills.
Splashes.
Excessive humidity.
Action
1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.
