Installing System Board Options
Dell™ PowerVault™ 715N Systems Installation and Troubleshooting Guide
Removing and Replacing the Fan Assembly
Expansion Card
Adding Memory
Microprocessor Upgrades
Replacing the System Battery
This section describes how to install the following options:
Fan assembly
Expansion card
Memory upgrades
Microprocessor upgrades
System battery
Use Figure 5-1 to locate the system board features.
CAUTION: Before you perform this procedure, you must turn off the system and disconnect it from its
power source. For more information, see " Safety First—For You and Your System " in " Troubleshooting
Your System ."

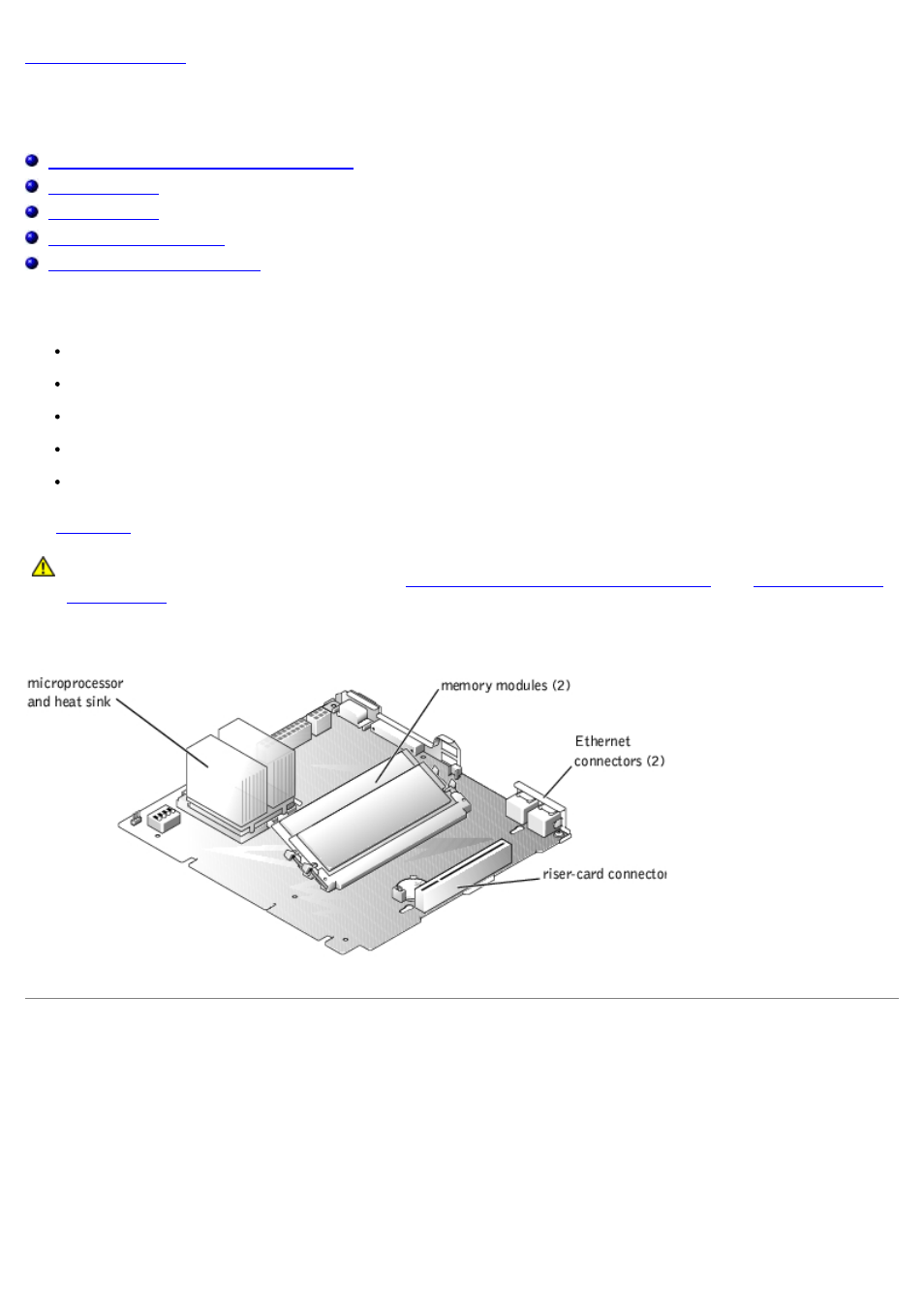

Figure 5-1. System Board Features
Removing and Replacing the Fan Assembly
The fan assembly, which is located behind IDE hard drive 1, contains one fan.
Removing the Fan Assembly
1. Turn off the system.
2. Remove the system cover.
3. Lift the fan out of the chassis carefully, making sure that the connector disconnects from the system board (see
