162
Removing and Installing Parts

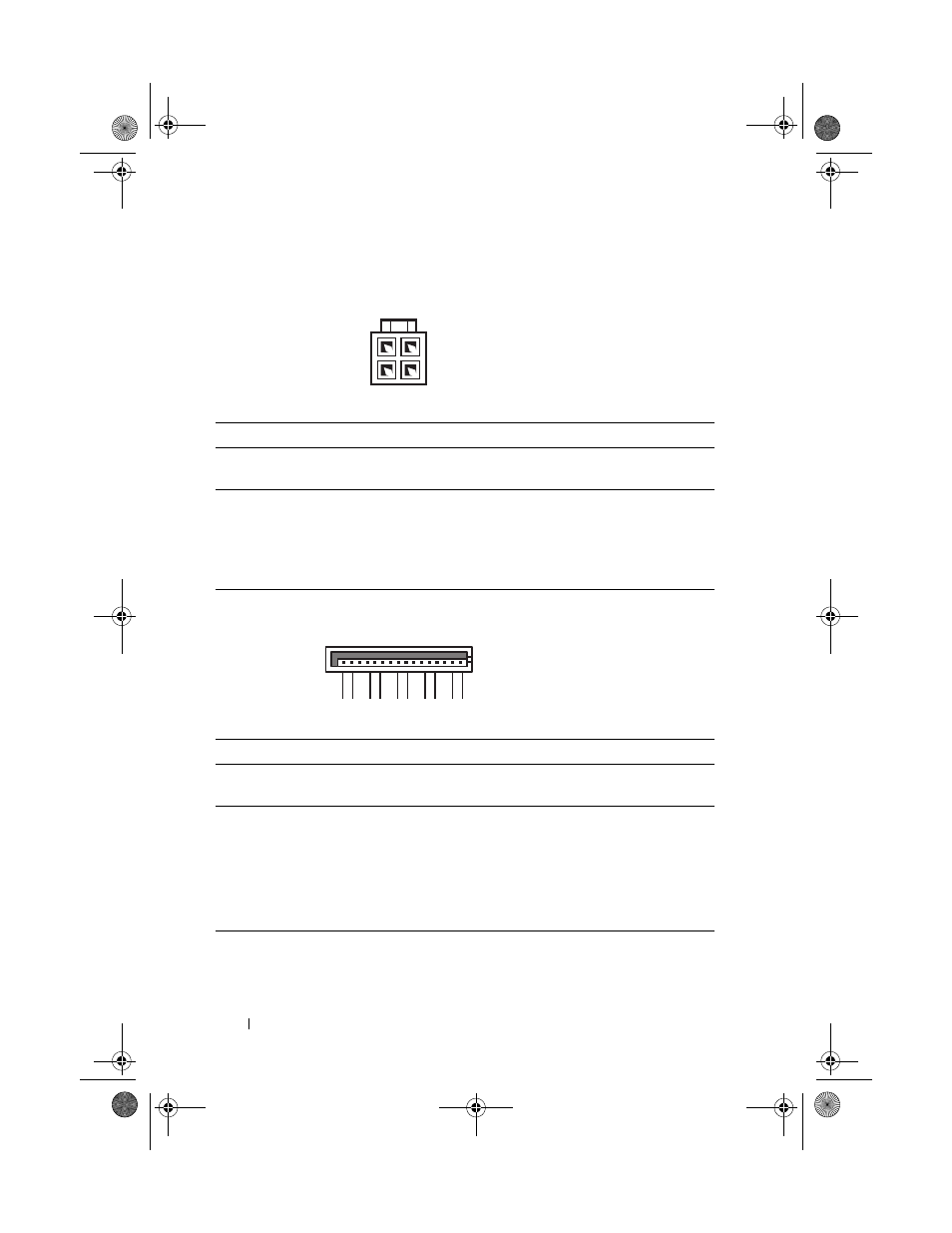

DC Power Connector P2
DC Power Connector P3 and P5
375-W Power Supply 425-W Power Supply
Pin Number Signal name 18-AWG Wire
Color Signal name 18-AWG Wire
Color
1 COM Black COM Black
2 COM Black COM Black
3 +12 VA DC Yellow +12 VA DC Yellow
4 +12 VA DC Yellow +12 VA DC Yellow
375-W Power Supply 425-W Power Supply
Pin Number Signal name 18-AWG Wire
Color Signal name 18-AWG Wire
Color
1 +3.3V DC Orange +3.3V DC Orange
2 COM Black COM Black
3 +5 V DC Red +5 V DC Red
4 COM Black COM Black
5 +12 VA DC Yellow +12 VA DC Yellow
1 2
3 4
1 2 3 4 5
