Removing and Installing Parts

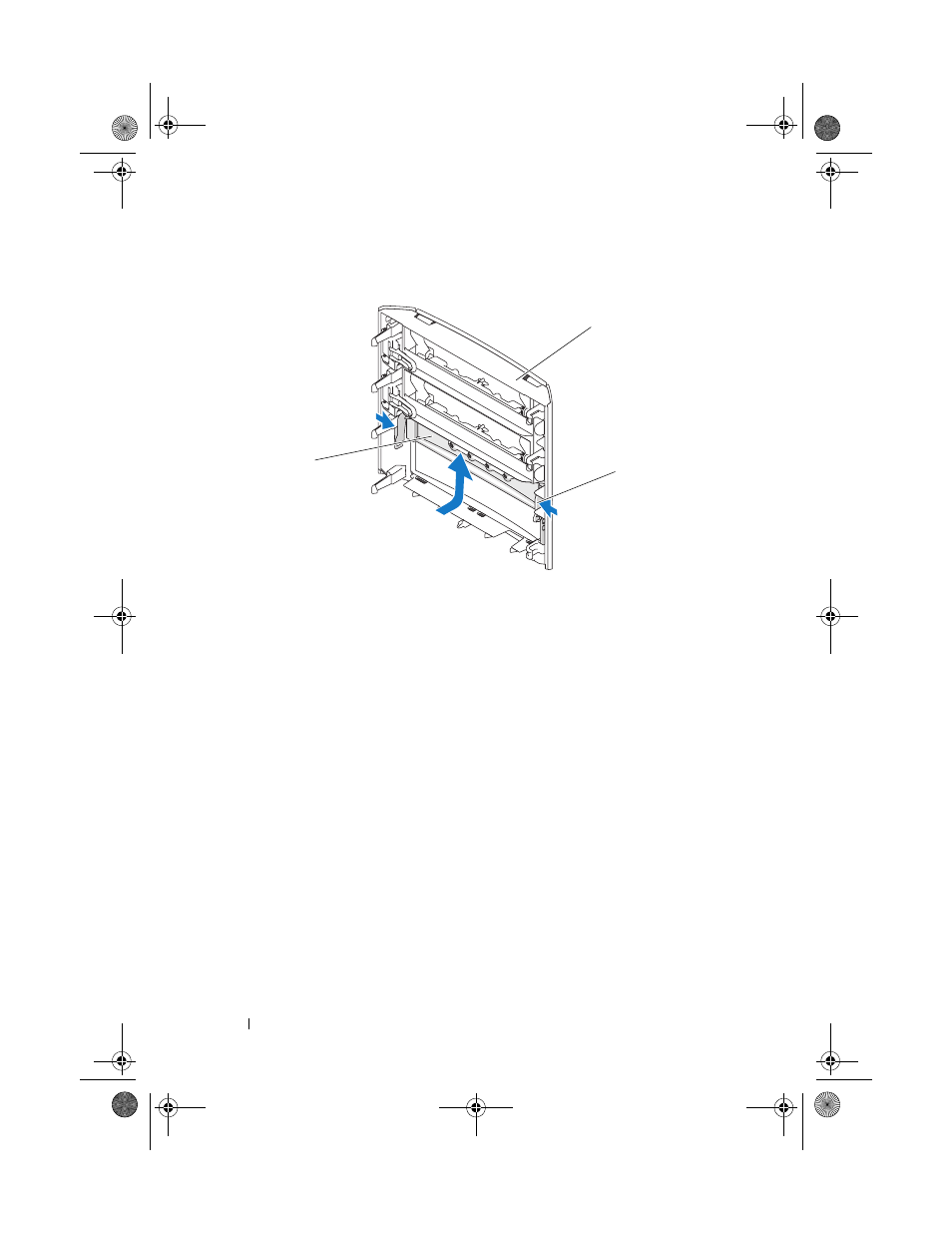

Replacing the Drive-Panel Insert
1 Align the notches on the drive-panel insert to the corresponding slots on
the drive panel and snap into place.
2 Ensure that the drive-panel insert is correctly seated in the drive panel.
1 drive panel 2 drive-panel insert tab 3 drive-panel insert
1
2
3
