Removing and Installing Parts
Drive Panels
CAUTION:
Before you perform any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CAUTION:
To guard against electrical shock, always unplug your computer from
the electrical outlet before removing the cover.
Removing the Drive Panel
1 Follow the procedures in "Before You Begin" on page 99.
2 Remove the computer cover (see "Removing the Computer Cover" on
page 101).

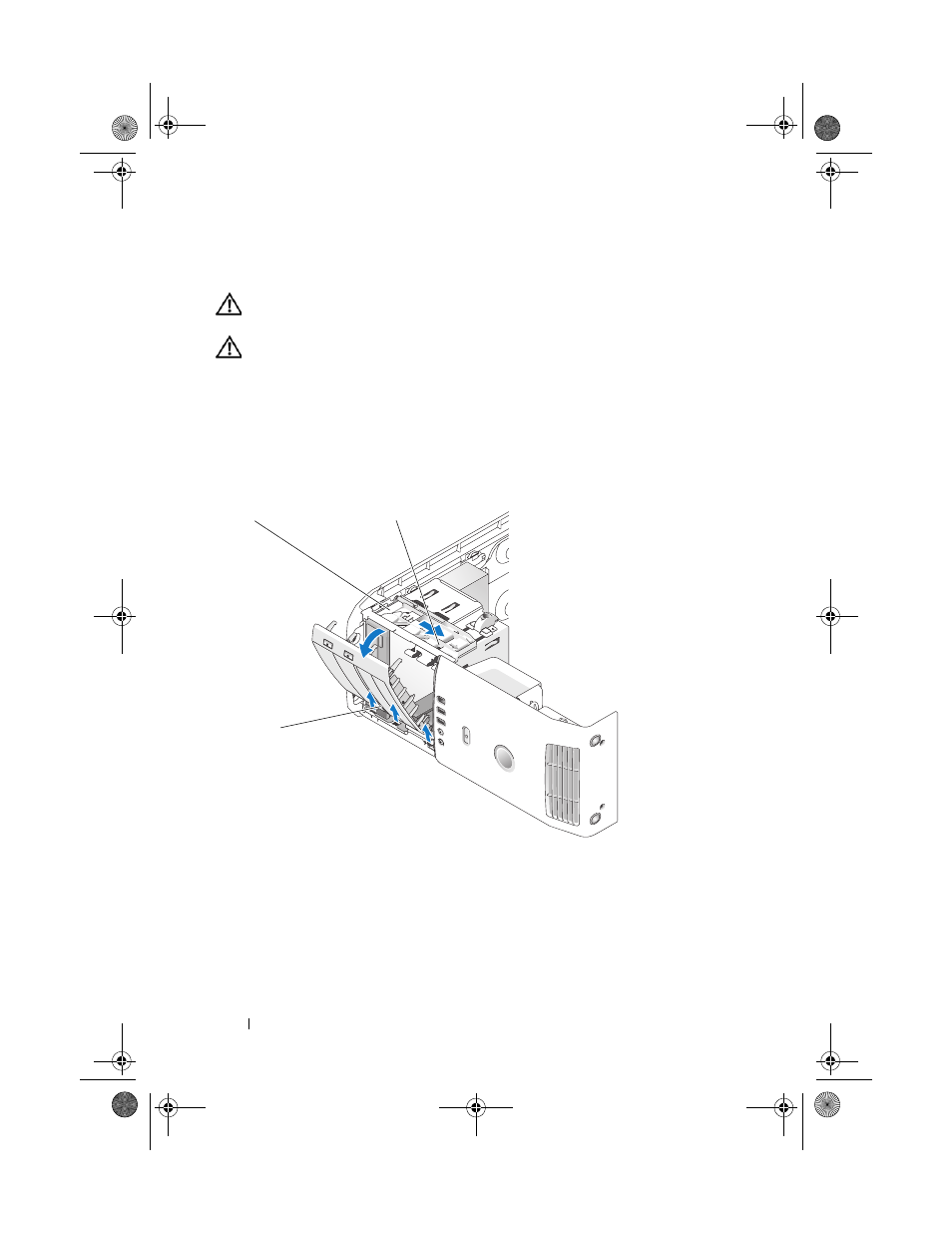

1 sliding plate lever 2 sliding plate 3 drive panel
2
1
3
