Removing and Installing Parts
133
5 Snap the hard-drive bracket onto the new hard drive.
NOTICE:
Do not install any drive into the lower hard-drive bay until you have
removed the hard-drive bracket from the inside of the hard drive bay.
6 Slide the new hard drive into the empty bay and click it into place.
7 Connect the power and hard drive cables to the drive.
8 Check all connectors to be certain that they are properly cabled and firmly
seated.

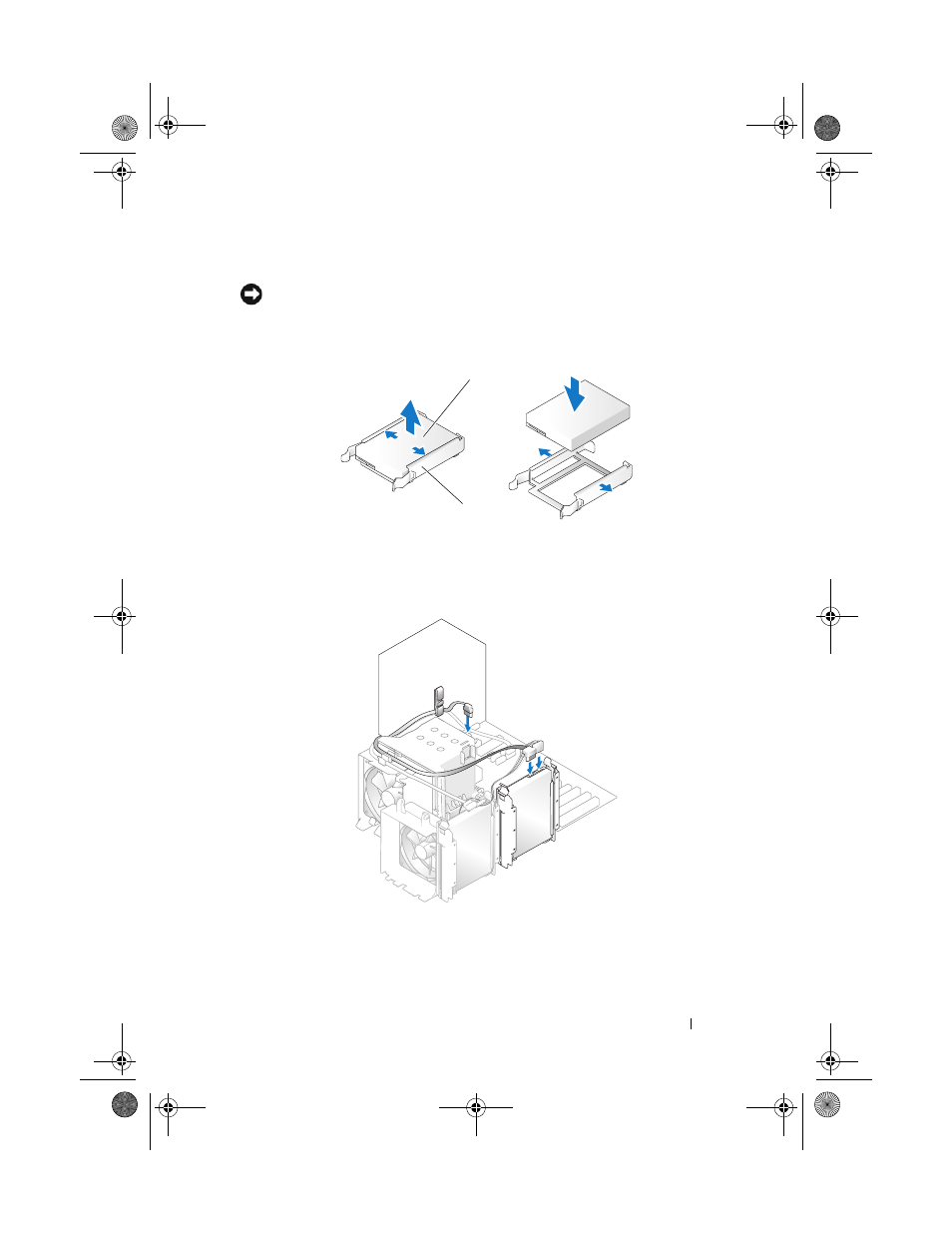

1 hard drive 2 hard-drive bracket
