Removing and Installing Parts
153
6 One by one, carefully pull on each corner of the fan to detach the four
rubber grommets securing the fan to the fan cage.

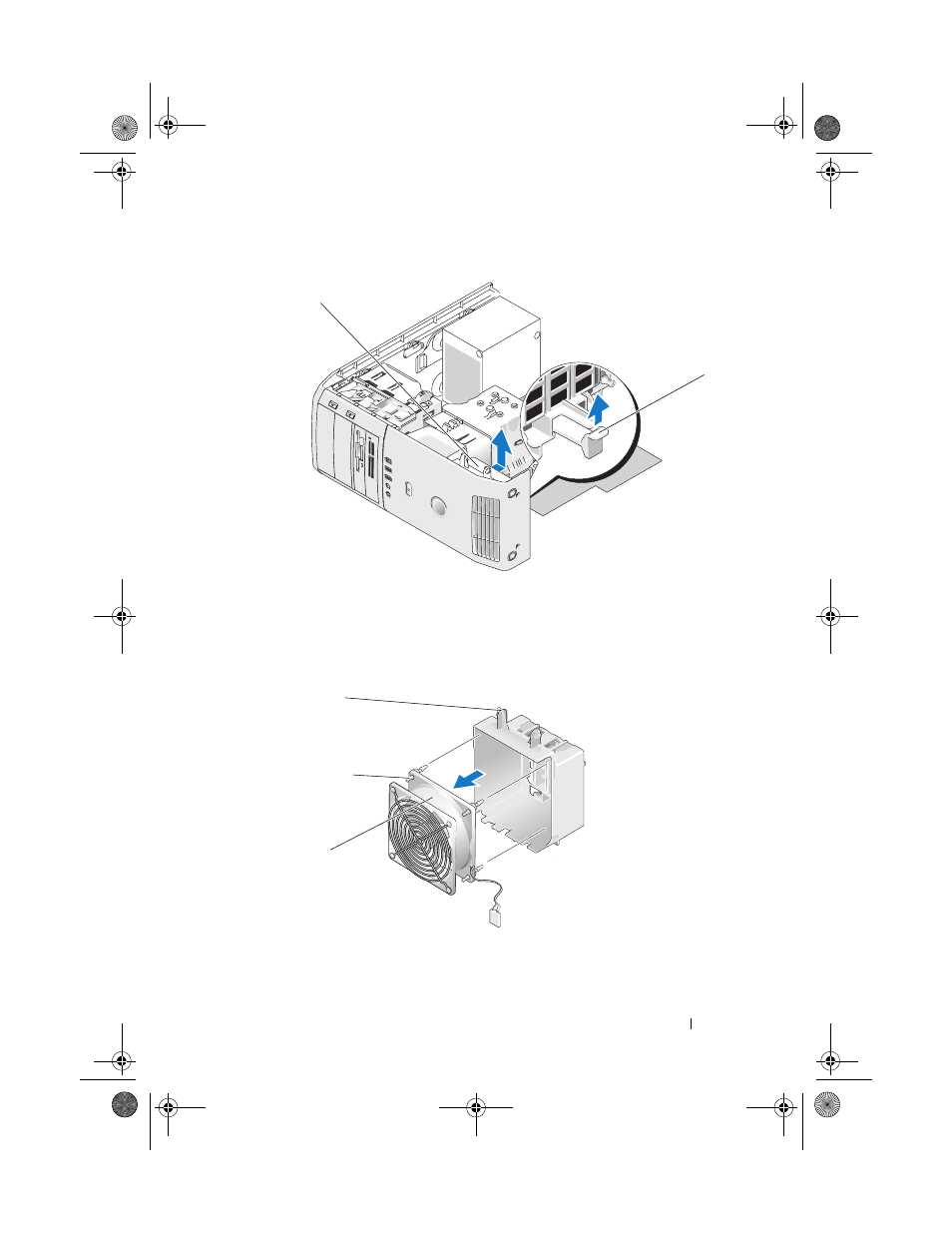

1 fan cage 2 tab
1 card fan 2 rubber grommet (4) 3 card fan cage
