Removing and Installing Parts
143
8 Gently slide the drive into place till it clicks in securely.
NOTE:
Ensure that the Media Card Reader is installed before connecting the
USB cable.
9 Connect the USB cable to the back of the Media Card Reader and to the
USB connector on the system board (see "System Board Components" on
page 103).
10 Route the USB cable through the cable routing clip.
11 Replace the drive panel (see "Replacing the Drive Panel" on page 127).
12 Replace the computer cover (see "Replacing the Computer Cover" on
page 172).
13 Turn on the system and enter system setup (see "System Setup" on
page 178). Set the USB for FlexBay value to ON.

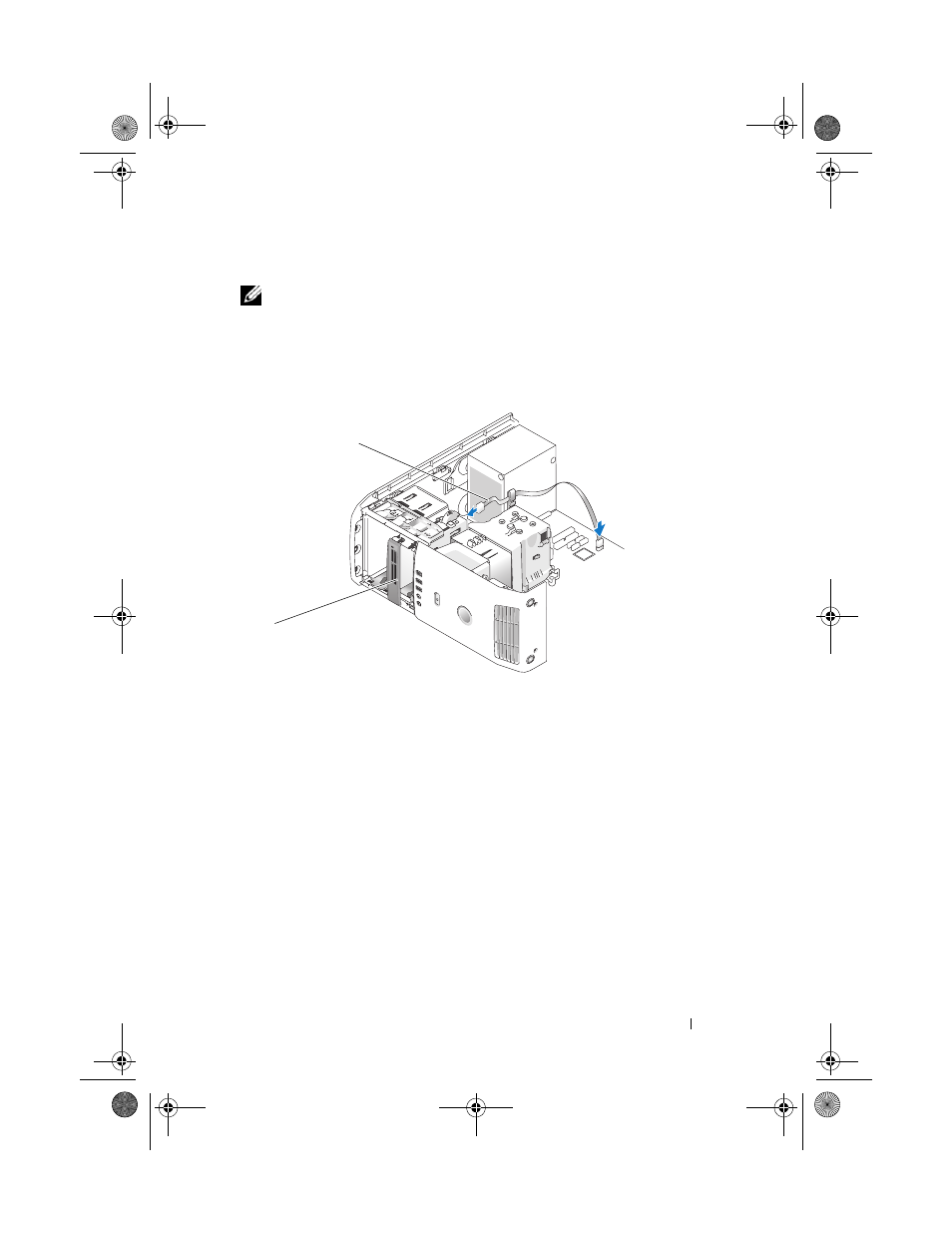

1 Media Card Reader (optional) 2 USB cable
2
1
