Commissioning

Dockside

Rudder Feedback

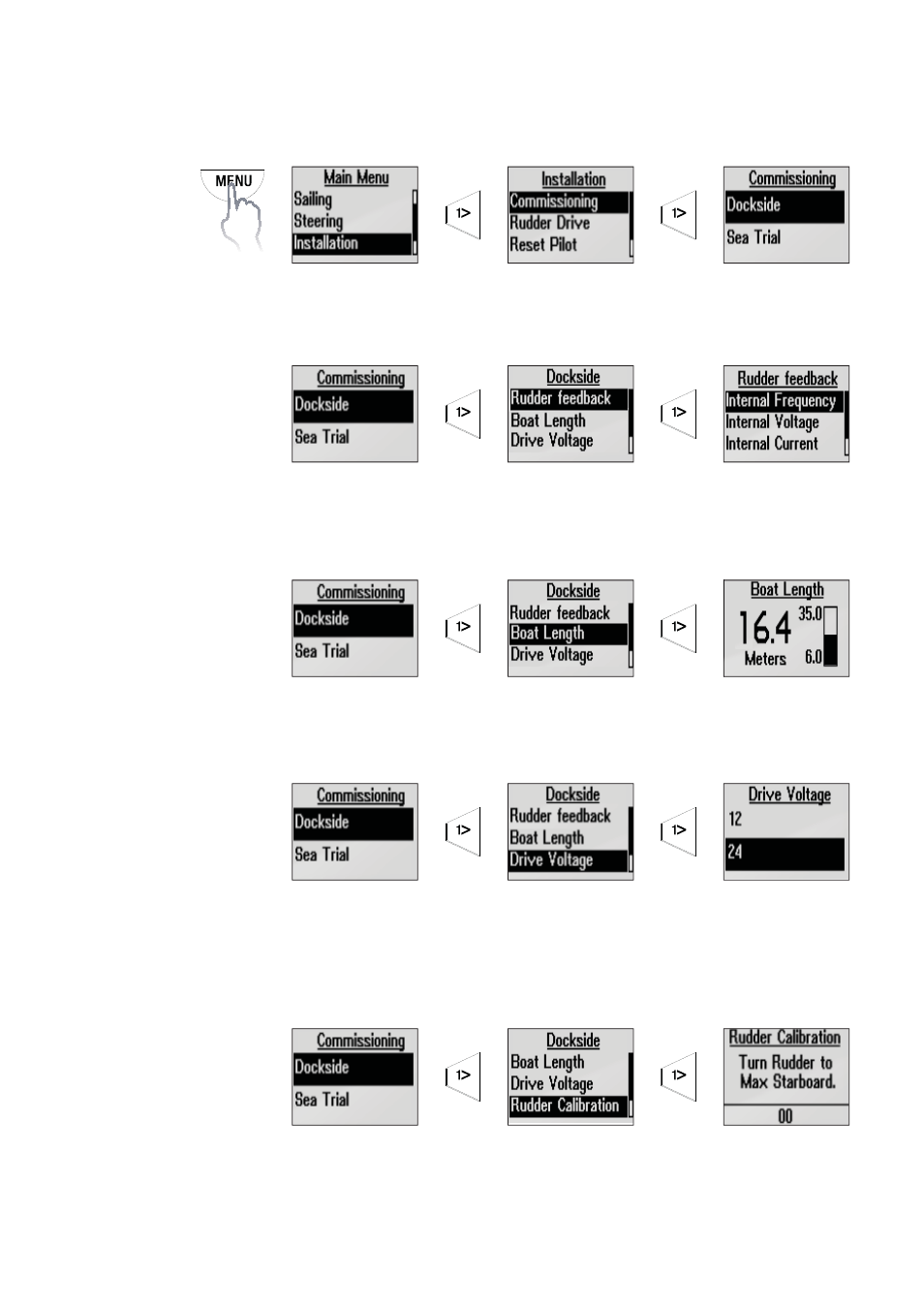

Set the rudder feedback type. It is important that the relevant rudder feedback unit is ﬁ rst
selected via source selection.

Note:

Select External for network sources or Internal frequency for RF300 sensors.

Boat length
Set the length of the vessel. Press the 1º LEFT key to return to the dockside menu.

Drive voltage
Select the drive voltage 12 or 24 Volts. Press the 1º PORT key to return to the dockside
menu.

Rudder calibration
Make sure the rudder feedback unit is installed and aligned as per it’s installation manual. The
rudder calibration will set the correct relationship between the physical rudder movement
and the rudder angle readout.

Follow the rudder calibration procedure:
