24 | Operation | H5000 Operation Manual

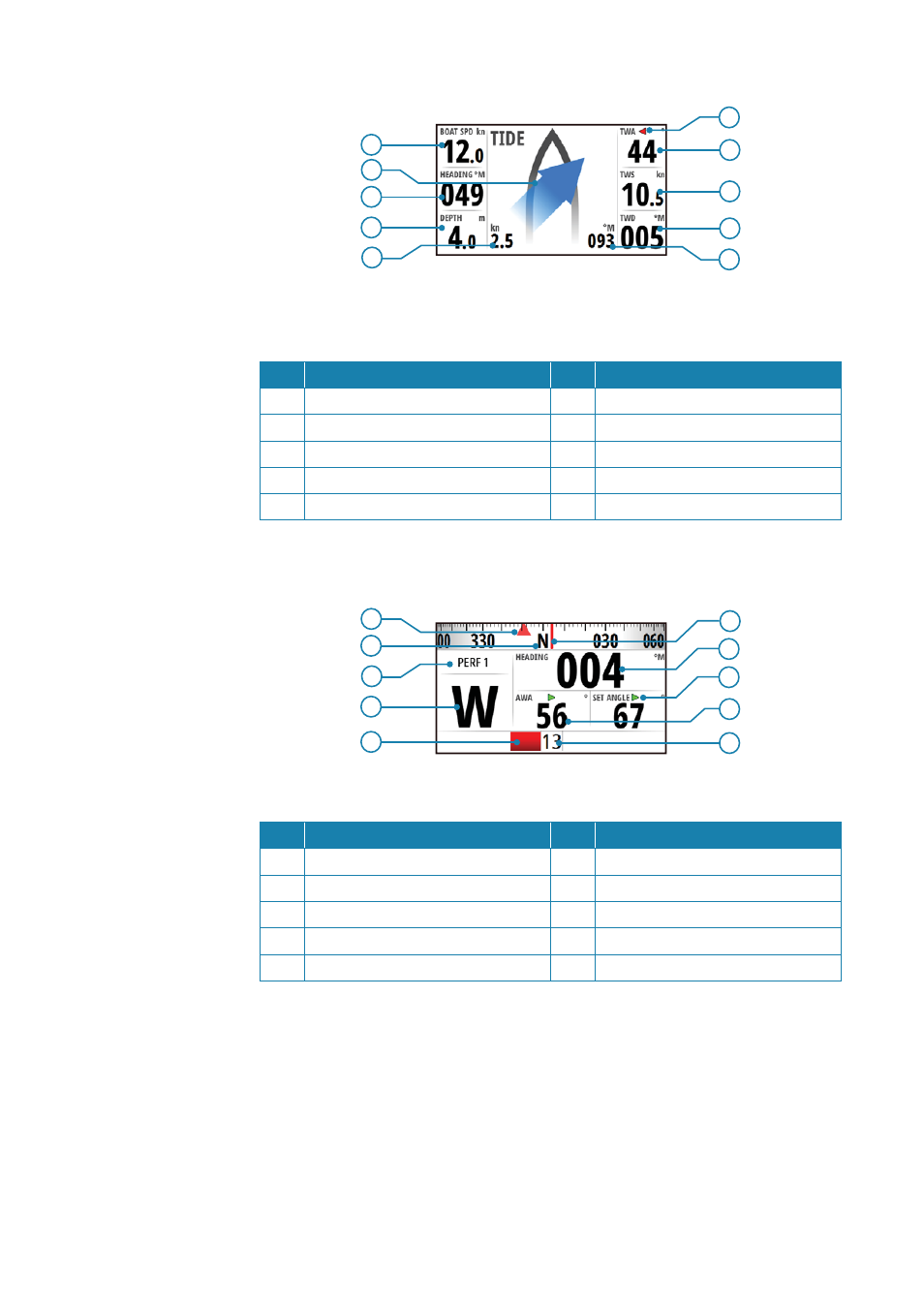

Tide
3
1
4
7
8
9
6
10 5
2
Displayed data
No. Description No. Description
1 Boat speed 6 TWA Port / Starboard indicator
2 Tide angle relative to vessel 7 True Wind Angle
3 Heading 8 True Wind Speed
4 Depth 9 True wind direction
5 Tide rate 10 Tide direction
Autopilot
4
5
9
10
3 8
7 2
6 1
Displayed data
No. Description No. Description
1 Set heading / Wind angle 6 Heading indicator
2 Compass scale 7 Heading
3 Performance level 8 Set heading / Wind / Rudder angle
4 Autopilot mode indicator 9 Wind angle
5 Rudder angle indicator 10 Rudder angle
