18 | Operation | H5000 Operation Manual
Standby
All of the displays can be placed in Standby mode via any display Setup dialog.
¼ Note:
Once in Standby mode a single press of the MENU key will turn the displays back on.

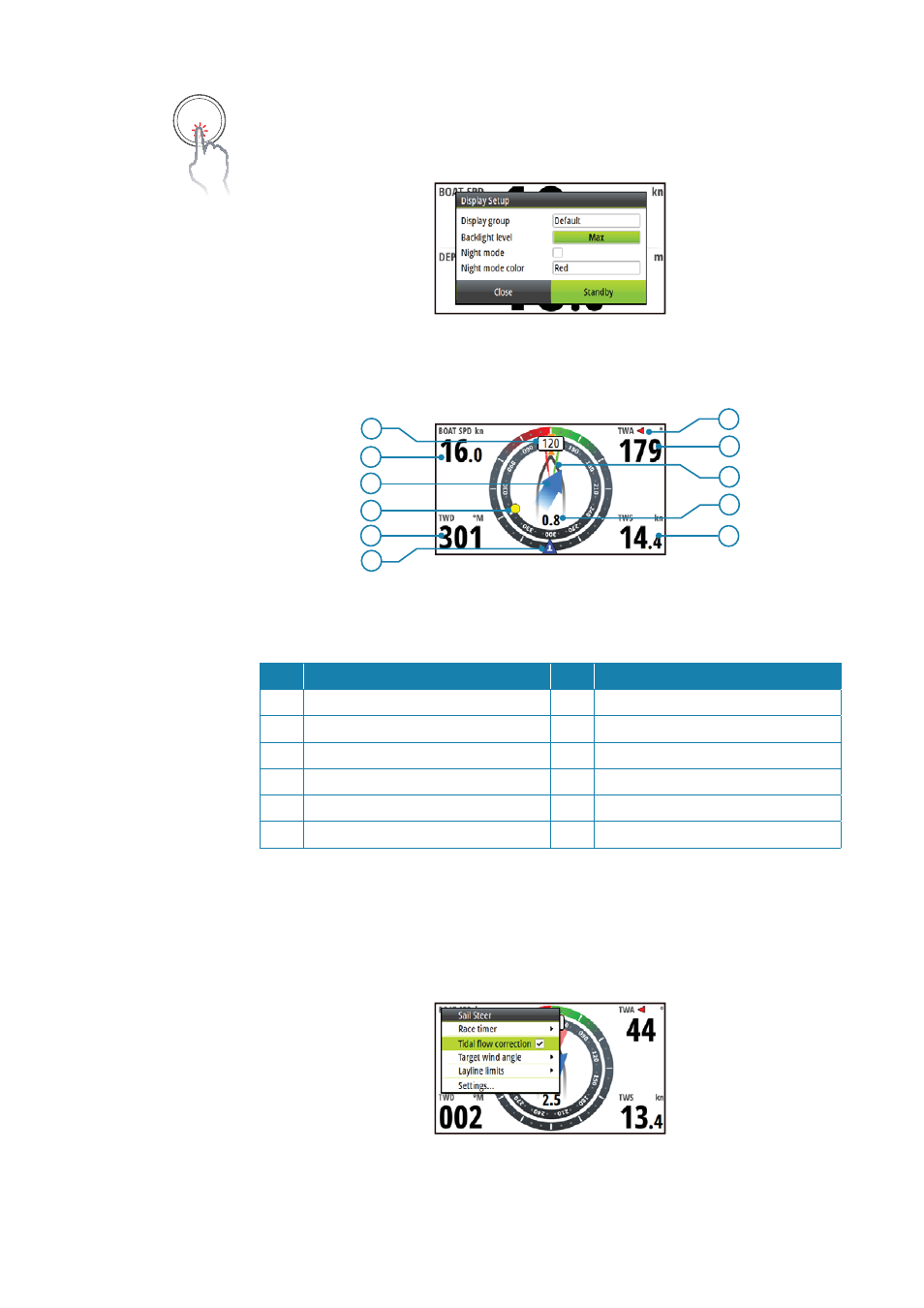

Default graphic display pages
Sail Steer
1
2
3
4
10
11
9
7
8
6
5
Displayed data
No. Description No. Description
1 Course / Heading 7 Port / Starboard indicator
2 Boat speed 8 True Wind Angle
3 Tide set 9 Laylines
4 Waypoint 10 Tide rate
5 True wind direction 11 True Wind Speed
6 True wind indicator
¼ Note:
See confi guring the Sail Steer page for more information on using this page
Confi guring the Sail Steer page
When navigating to a waypoint you can confi gure the Sail Steer page to show laylines to aid
navigation.
Tidal fl ow correction
Tidal fl ow correction will calculate the tidal fl ow and off set the laylines accordingly.
MENU
3sec
