20 | Operation | H5000 Operation Manual

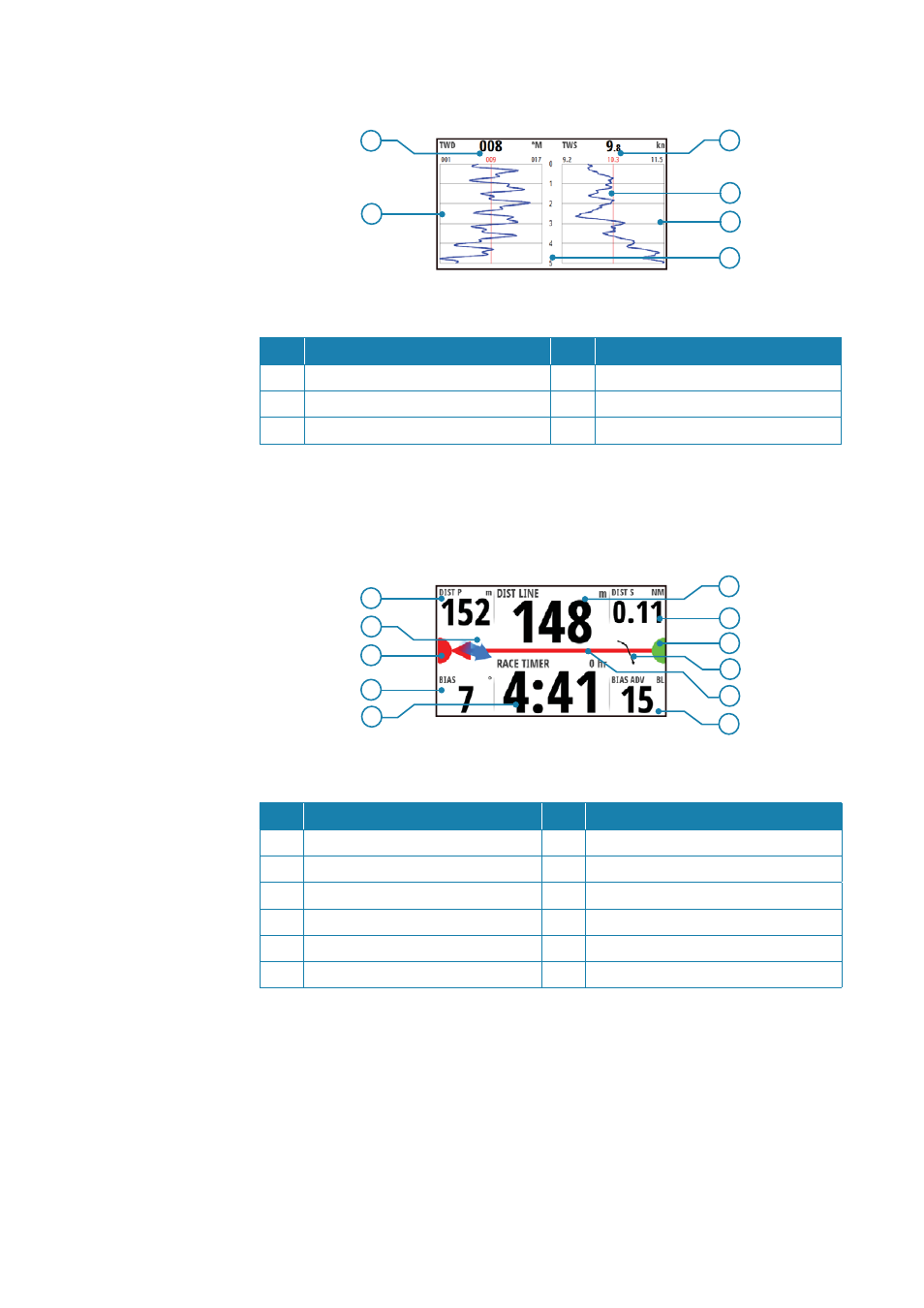

Wind plot
2
5
4
6
3 1
Displayed data
No. Description No. Description
1 True wind direction 4 Mean value
2 True wind direction histogram 5 True Wind Speed histogram
3 True Wind Speed 6 Time period (5 to 60 minutes)
¼ Note:
Wind histogram time periods can be set to show 1, 5, 10, 30 or a 60 minute history.
Toggle between the time periods using the UP/DOWN keys.
Start line
3
4
1
7
8
6
11
9
10
2
5
Displayed data
No. Description No. Description
1 Distance to port end of start line 7 Distance to starboard end of start line
2 Tide direction indicator 8 Starboard end start line indicator
3 Port end start line indicator 9 Wind indicator (wind barb)
4 Start line bias angle 10 Start line - Arrow points to favored end
5 Race timer 11 Bias advantage (boat lengths)
6 Distance to start line (perpendicular)
