ADS XiLog+ System User Manual
53
C H A P T E R 4
Battery Replacement
1. Carefully unscrew the yellow cover of the XiLog+ counter-clockwise
1/8 of a turn and lift it off the housing.

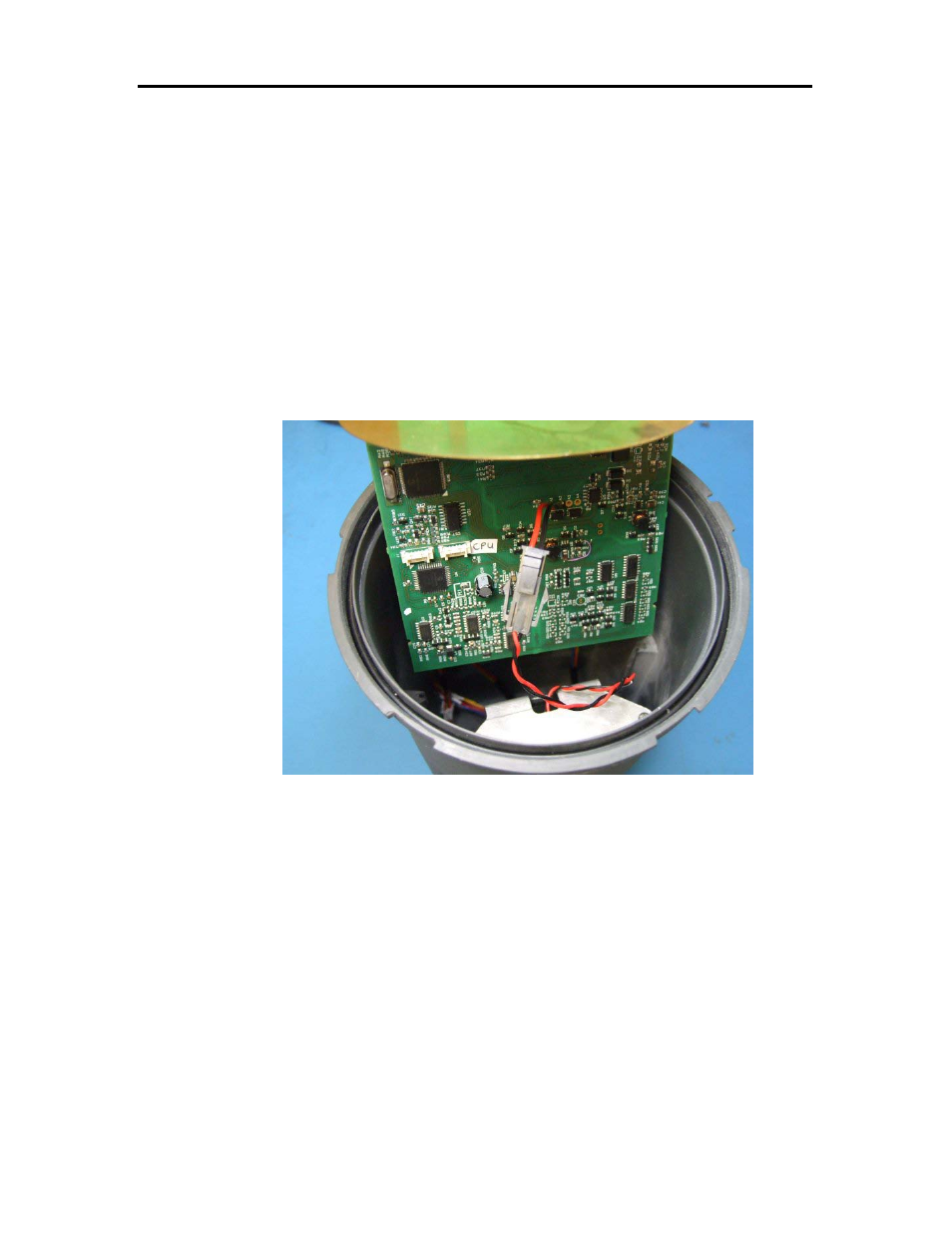

2. Carefully lift out the antenna and circuit board from the housing.
3. Disconnect or unplug the battery from the board.
4. Remove the screws securing the battery holder to the housing.
