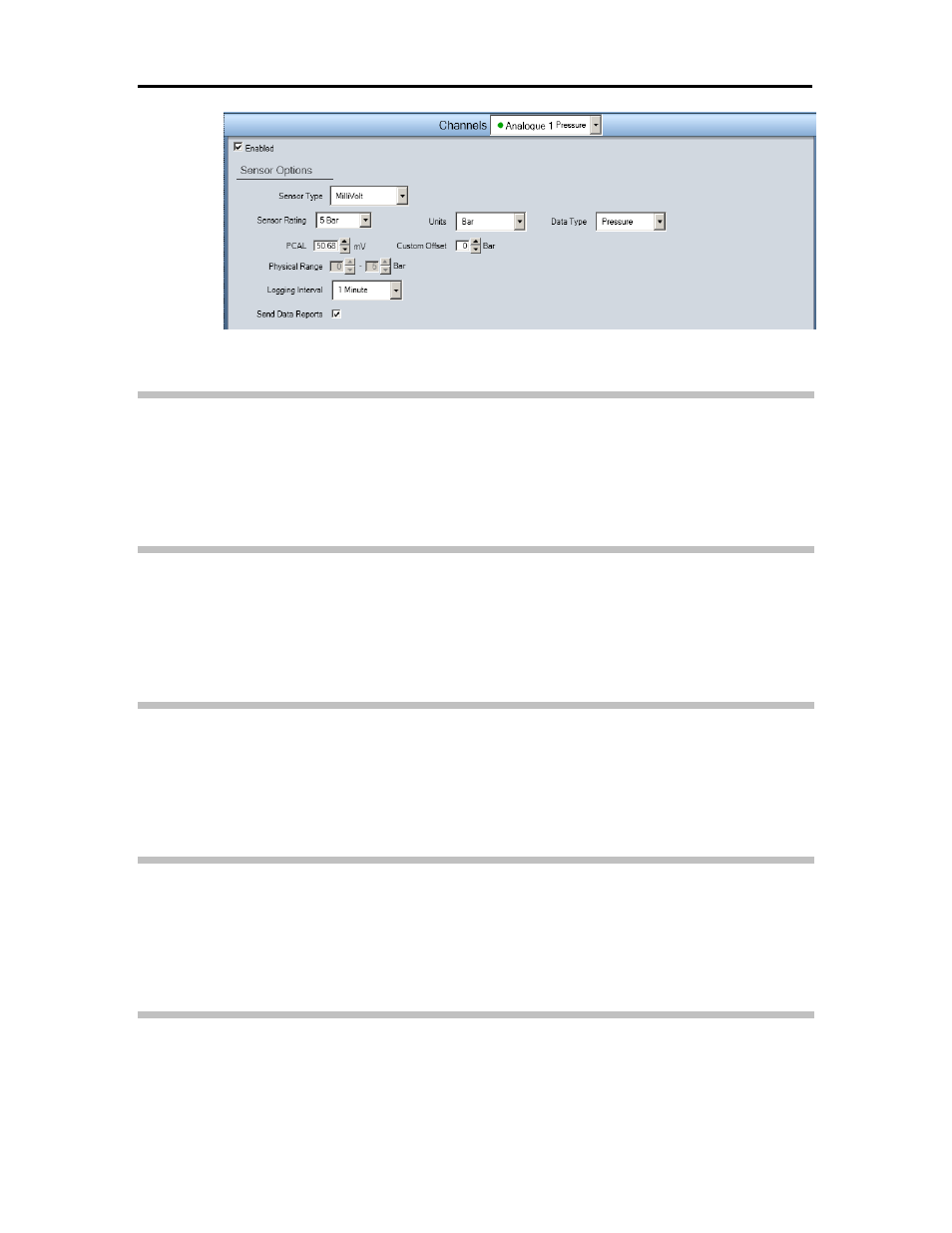

Generic Analog – MilliVolt example
Enable Channel
Selecting this checkbox enables the channel on the logger. Not all channels
on the logger must be enabled when the logger is in use. Disabled channels do
not use power.
Sensor Type
This drop-down includes the options for selecting the sensor type (Current,
MilliVolt, or Voltage). Selecting the Voltage or Current also requires
selection of the Electrical Range. Refer to Electrical Range on page 36.
Sensor Rating
(applicable only to the MilliVolt sensor type) This drop-down list includes the
options for selecting the range of the pressure transducer. The Physical
Range represents this rating converted to the selected units.
Units
This drop-down list contains the options for selecting the units of measure
corresponding to the designated data type. The options available depend on
the selected data type.
Data Type
This drop-down list contains the options for selecting the type of data to log
(e.g., pressure, depth, flow, or temperature).
