Removing the SIM Card from the SIM Holder (applies only to replacement)
1. Without touching the contacts on the SIM card, gently push an object
through the hole in the SIM holder.
2. Remove the SIM card.
Inserting a SIM Card into the SIM Holder
Without touching the SIM card contacts, insert the SIM card into the SIM
holder, aligning the beveled edge of the card with the keyed corner of the SIM
holder and facing the gold contacts on the card outward.
Installing the SIM Holder into the Logger
1. Carefully slide the SIM holder into slot in the logger housing until it
clicks into place.
2. Verify that the seal is in the sealing groove and undamaged.
3. Replace the cover plate onto the logger, and secure the plate to the
logger with the four screws.

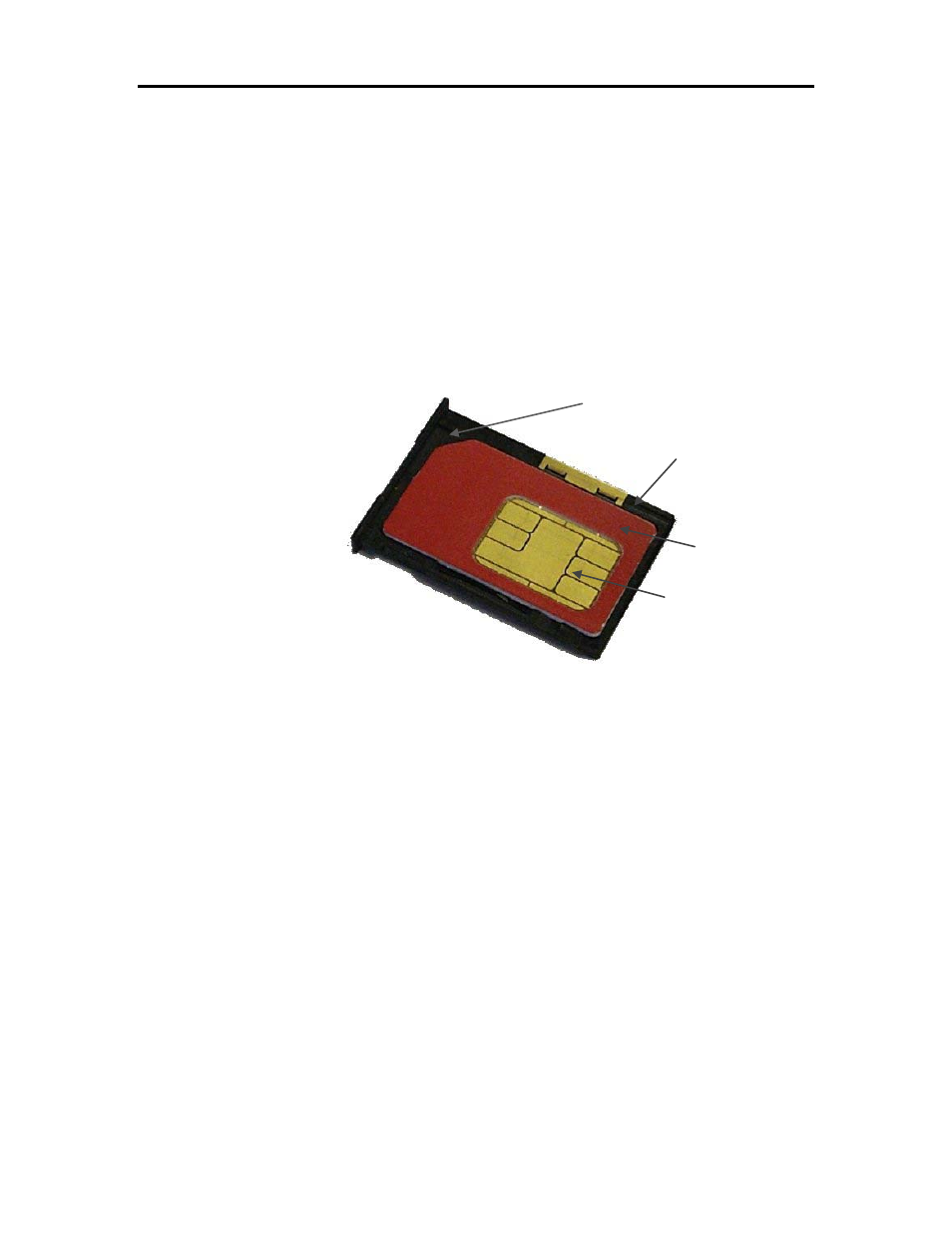

Keyed Corner
SIM Holder
SIM Card
SIM Card Contacts
