Tank Cart Hitching
If using a fertilizer cart, consult the cart manual for:
• hitching cart tongue to planter
• connecting pump control electronics to planter
• connecting fertilizer feed hoses to planter
Complete the tractor-planter hook-up before making any
tank cart connections.
Material Loss Risk:
Open hose and inlet valves when ready to begin planting.
Close them when not in use. Damage to hoses when not
applying material can result in rapid tank depletion.
Fertilizer Connection Types
Making Fertilizer Connections
Type Description
2
2-section, planter manifold and pump:
Starter inlet only
3
3-section, cart manifold and pump:
Left, Center, Right inlets & Gauge line
PFC2000 tank cart, YP4425A Planter with Type 2 and Type 3 Manifolds, & Ground Drive Pump
Planter Inlet
Left Type 3 Center Type 3 Right Type 3 Type 2 Gauge Line
a
a. Gauge Line is supplied with PFC1600 or PFC2000 tank cart
PFC1600 or PFC2000 tank cart, YP4425A Planter with Type 3 Manifold (only)
Planter Inlet
Left Type 3 Center Type 3 Right Type 3 Gauge Line
a

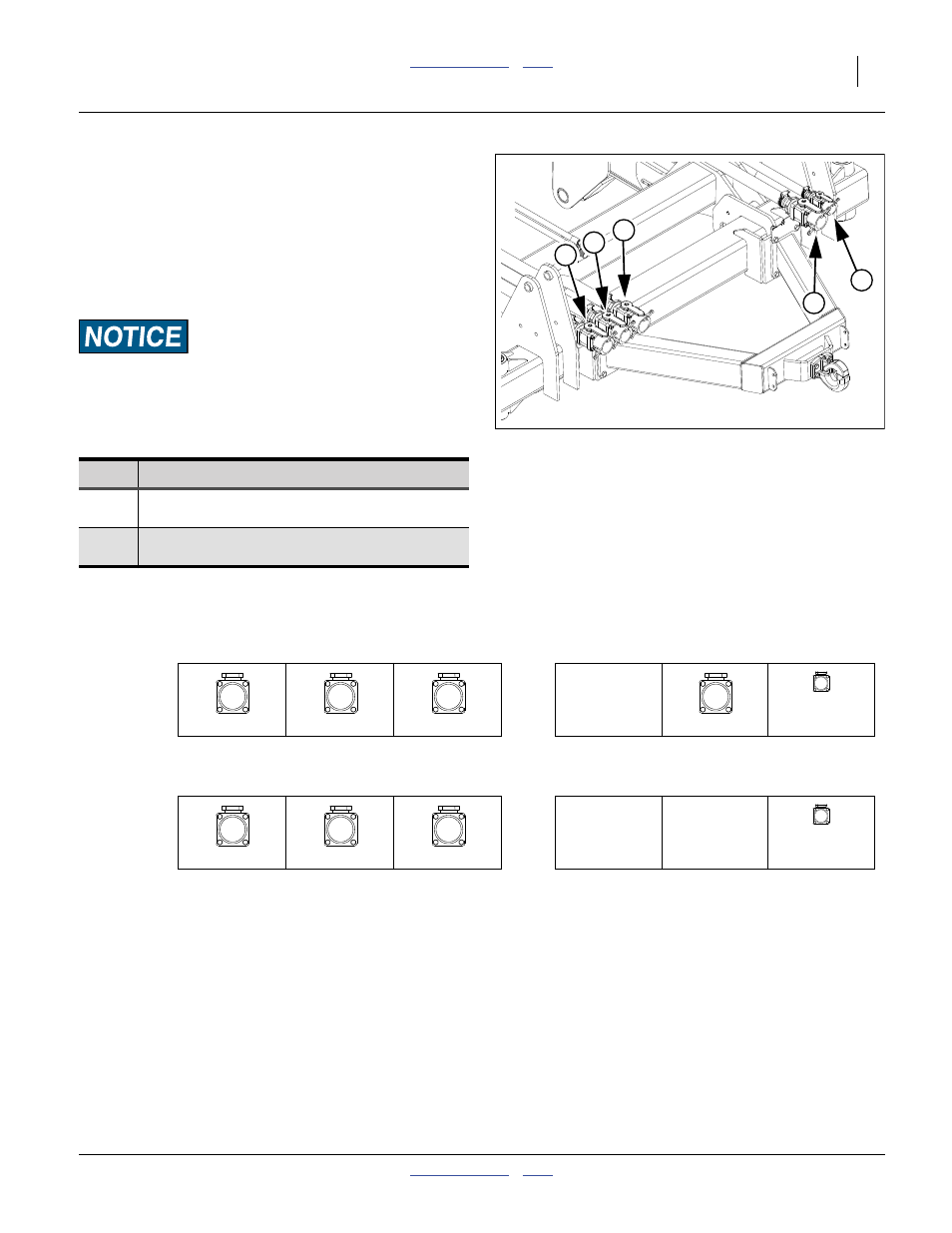

Figure 10
Fertilizer Cart Connections
29269
L
C
R
S
G
L C R S
G
L C R
G
