Refer to Figure 112
The container/funnel may be attached to the housing of
the seed meter, freeing your hands for other tasks during
clean-out. Normal use of the funnel is:
10. Close the seed inlet shutter on the meter (page 75).
This minimizes the seed volume at disc removal.
11. Remove the rain cover (page 75). The funnel cannot
be snapped in place with the cover installed.
12. Align the left (rear) end of the funnel lip with the
top of the lower (rear) cover latch ear. Place the right
(front) end of the funnel lip
between the meter
housing and the seed tube.
13. Rotate the funnel forward until the slot at lip center
engages a tab on the bottom center of the meter
housing.
14. Remove the seed disc (page 78).
15. Slowly open the seed shutter (page 75) to empty the
seed up to the wing tube.
16. If the air system is running, there may be more seed
than the funnel can hold (as a container). Use the
shutter to turn seed flow off, and empty funnel.
Refer to Figure 113
17. Clean seed from all brushes (shop vac
recommended).
18. Inspect brushes (page 97).
19. Rotate funnel clockwise, remove and empty.
20. For imminent operations:
Install next seed wheel for operations. Set inlet
shutter for next seed (page 75).
21. For storage:
Close seed inlet shutter. Leave disc out.
22. Re-install rain cover (page 75).
Seed Tube Clean-Out
The seed sensor in the seed tube can be obscured by
build-up of dust, dirt and seed treatments. This can
cause false low population alarms.
The planter includes a seed tube brush (Great Plains
part number 891-259C). If the seed meter is empty,
remove the seed disc and insert the brush into the seed
tube
from above. With the planter raised, you can also
insert the brush from below, whether the meter is empty
or not.

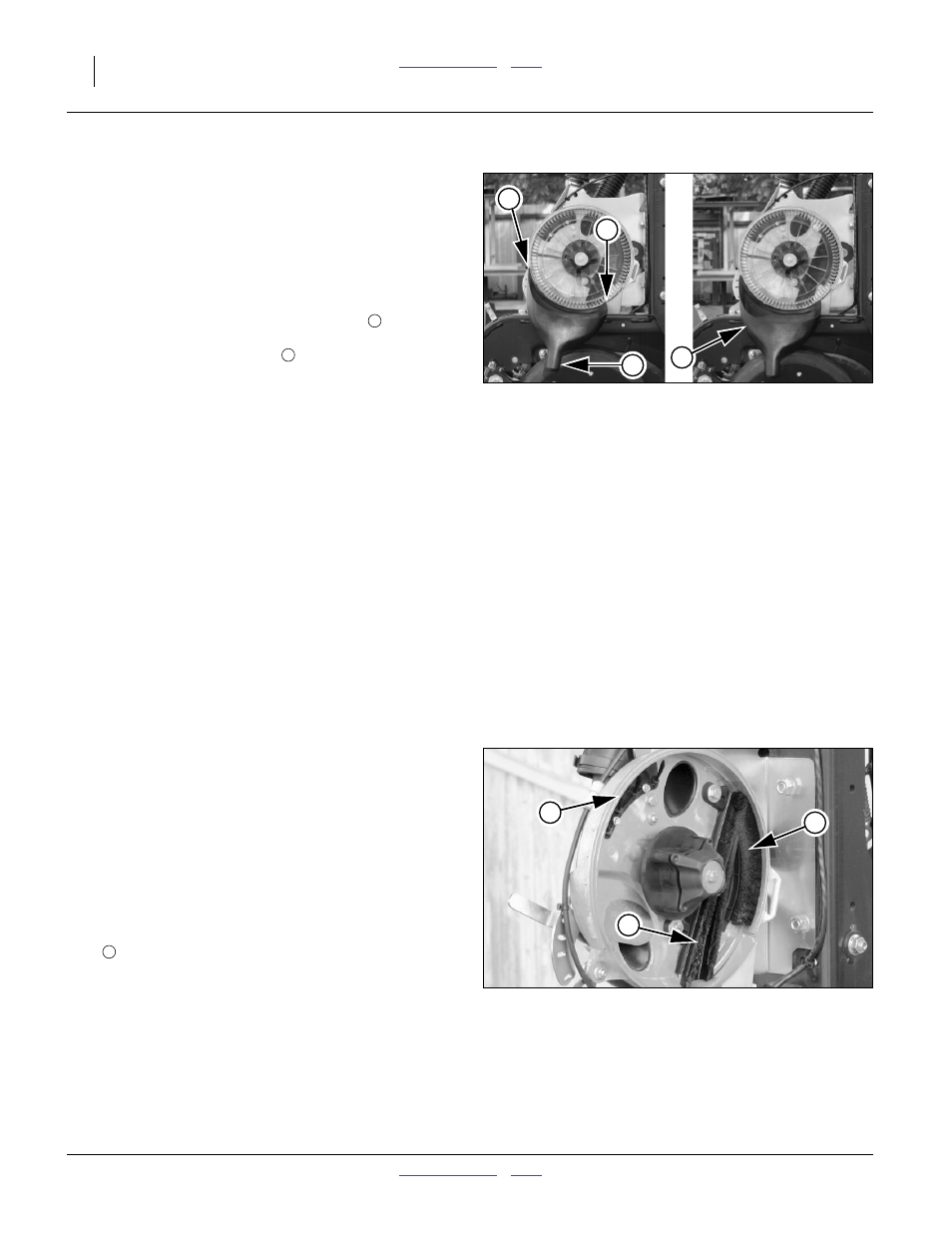

Figure 112
Funnel Positioned and Engaged
29612
1
2
3
4
3
4
Alternate Meter Clean-Out
To use a shop vacuum cleaner, with narrow hose nozzle,
to clean out a meter:
• Close the seed shutter.
• Release the meter clamp, hold the disc against the
meter.
• Tip the top of the disc away from the meter.
• Insert hose nozzle and remove seed.
• Open shutter to allow seeds in inlet and drop hose to
flow to vac nozzle.
Figure 113
Brush Inspection
29608
5
6
7
4
