Parking Stands
Store Main Parking Stand
Refer to Figure 8 (which depicts the similar YP40 hitch)
1.
Raise the tractor hitch slightly to lift parking stands
off ground.
2. Remove the lower pin and the upper pin
holding the parking stand .
3. Move the stand from under the tongue to an inverted
position in the bracket
on the left side on the
tongue. Pin in place.
Storing 3-Point Parking Stands
Refer to Figure 9 (shown without tractor for clarity)
1. For the standard 3-point hitch, store the two forward
stands
by either of the following methods:
• Remove the top pin , swing the stand out, up and
vertical around the bottom pin , and re-insert the top
pin , or
• Remove the bottom pin , swing the stand inward, to
a horizontal positional under the hitch, and insert the
removed pin at hole
under the stand.
Refer to Figure 8
2.
Adjust the top link of a 3-point long enough so the
ball swivel
does not bottom out when fully raised.
3. Secure hoses so they do not get caught in ball
swivel
. Failure to do so could cause hose to be
crushed requiring hose replacement.

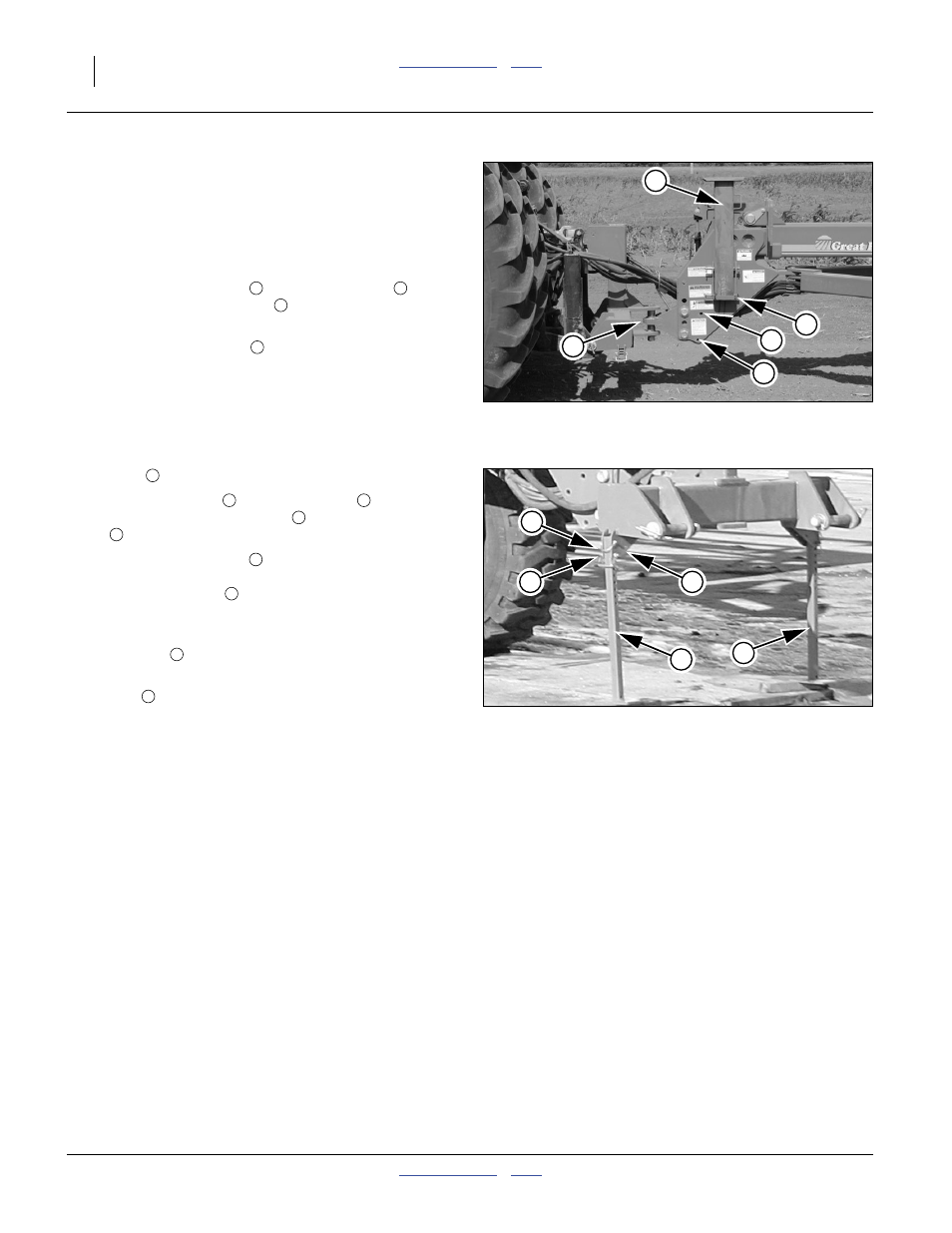

Figure 8
Main Parking Stand Stored
29242
2
1
3
4
5
1 2
3
4
Figure 9
Storing 3-Point Stands
26034
7
9 8
6
6
6
7 6
8
7
8
9
5
5
