Wing Leveling, Outboard End
Refer to Figure 124 on page 104 and Figure 126
1.
Measure from the bottom of the wing tool bar to the
ground at the outer end of each wing.
2. Compare to the measurement at the outer end of the
center tool bar, at the wing pivot location. All
measurements should be identical, and close to 26in
(66cm).
3. If measurements do not match, loosen upper gauge
wheel jam nut
, and adjust eyebolt link length with
adjuster nut .
4. If adjustments are needed on either side, re-check
the other side after each adjustment, and re-adjust it
as needed.
5. Once level, tighten the lock nut .

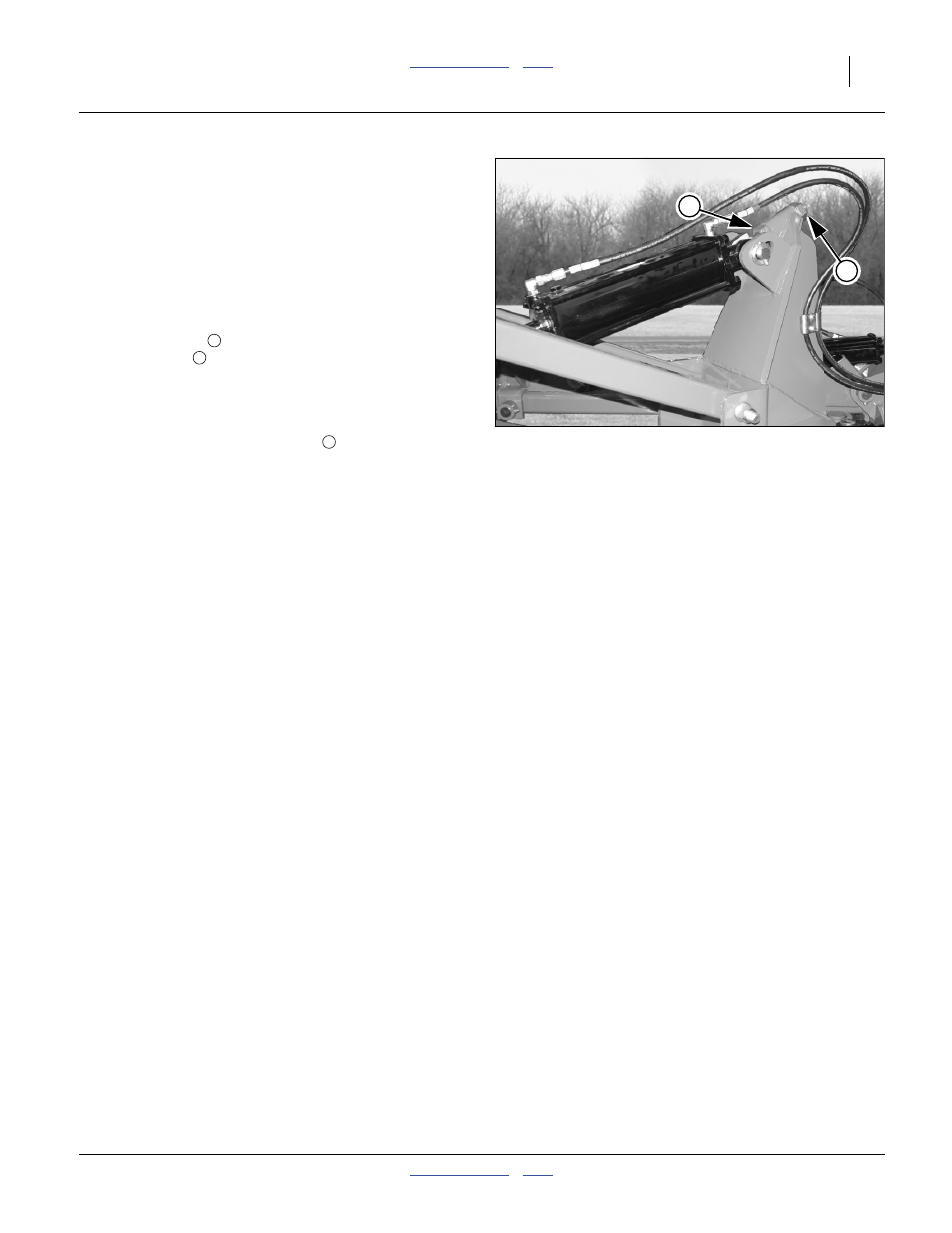

Figure 126
Leveling Outer Wing
29314
