Great Plains Manufacturing, Inc.
Options
123
2012-02-23
401-805M
Fertilizer Systems
The YP4425A supports several supply and distribution
systems for fertilizer application of one or two materials:
• planter on-board 400 gallon tanks (2x200 gal./1500
liters total), relying on a planter-mounted ground-drive
pump and Type 2 manifold.
• 1600 gallon (6050 liter) pull-behind cart and cart
pump, relying on Type 3 manifold,
• second 400 gallon tank on the PFC2000 cart, using
planter pump and Type 2 manifold, or as extra
capacity for the 1600 gallon tank,
• semi-mounted trailing fertilizer cart, using planter
pump and Type 2 manifold.
Liquid Fertilizer Systems

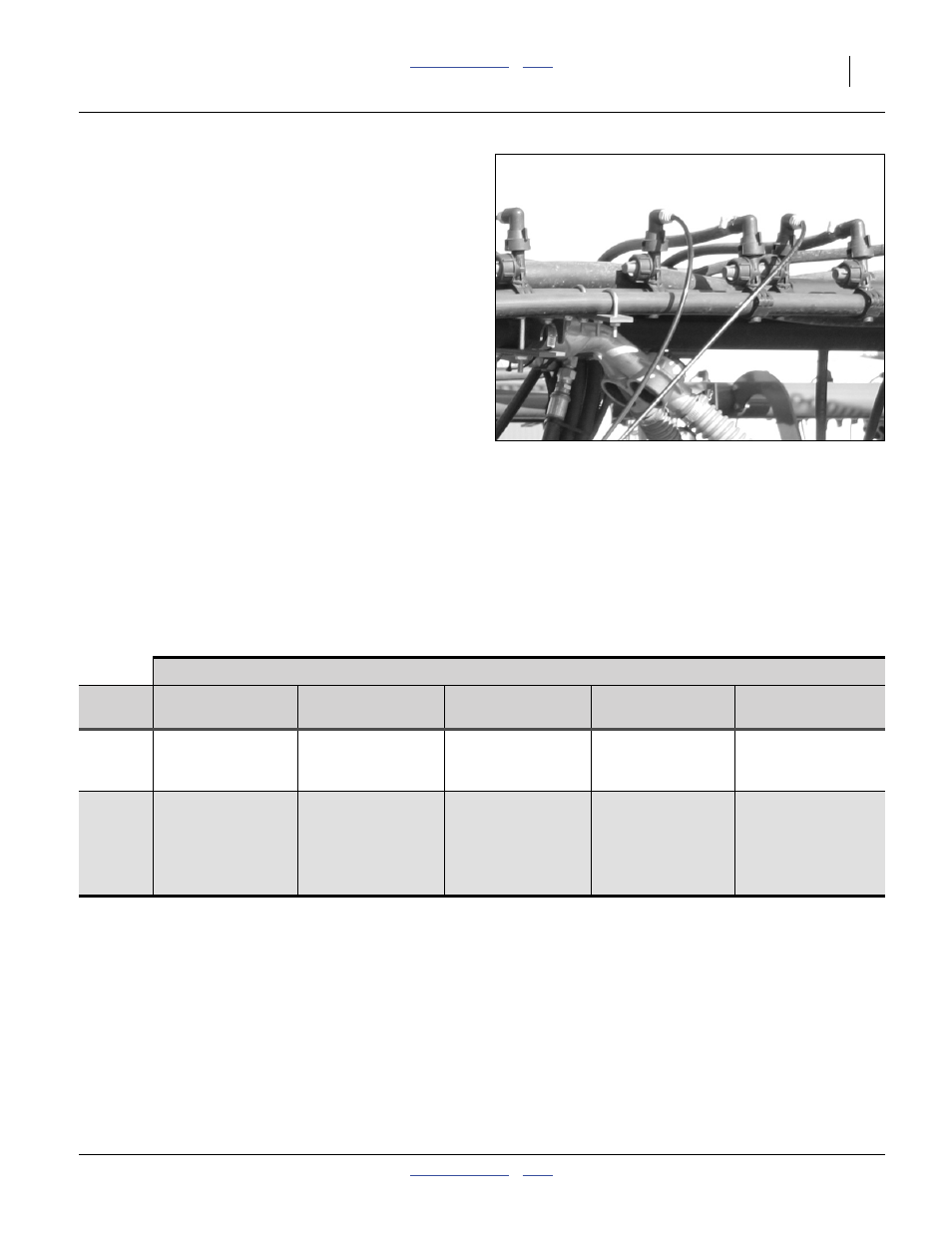

Boom (manifold) systems are factory-installed. All booms
have the same number of outlets. Unused outlets are
capped on wider row spacings.
The Type 3 boom is separately plumbed for each of the 3
planter sections, and relies on an off-planter pump and
supply manifold (which are standard on the PFC1600
and PFC2000 tank carts).
The Type 2 boom has a single inlet, and is optimized for
use with a planter-mounted ground-drive pump. The
base Type 2 system is plumbed to the on-board tanks.
The 407-243A kit extends it to the rear hitch, for use with
a semi-mounted cart or the smaller tank of the PFC2000.
For operations, see the Seed Rate manual.
Liquid System Configurations
Order one each (except where noted) of the parts listed for your configuration.
26077
Great Plains Material Supply System
Delivery
Systems
YP4425A
2x200 Gal.
YP44 2x200
Cart Only
Cart Only
SML Cart Only
Single
Boom
Cart
a. This presumes switching between cart tanks with same material (a standard PFC cart capability).
Twin
Boom
⎯⎯⎯⎯⎯
⎯⎯⎯⎯⎯
