Hitching Tractor to Planter
Crushing Hazard:
Do not stand or place any body part between planter and
moving tractor. You may be severely injured or killed by being
crushed between the tractor and planter. Stop tractor engine
and set parking brake before attaching cables and hoses.
Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines. Use
paper or cardboard, NOT BODY PARTS, to check for leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. Escaping fluid under pressure
can have sufficient pressure to penetrate the skin causing
serious injury. If an accident occurs, seek immediate medical
assistance from a physician familiar with this type of injury.
Only trained personnel should work on system hydraulics
Great Plains hydraulic hoses have color coded handle
grips to help you hookup hoses to your tractor outlets.
Hoses that go to the same remote valve are marked with
the same color.
Refer to Figure 3
To distinguish hoses on the same hydraulic circuit, refer
to the symbol molded into the handle grip. Hoses with an
extended-cylinder symbol feed a cylinder base end.
Hoses with a retracted-cylinder symbol feeds a cylinder
rod end.
For hydraulic fan and drive motors, connect the hose
under the retracted cylinder symbol to the pressure side
of the motor. Connect the hose under the extended
cylinder symbol to the return side of the motor.
The fan motor further requires hookup of a third line,
which returns hydraulic fluid from the fan motor case.
Machine Damage Risk:
Case Drain Hose must be attached first,
prior to inlet and return hoses being connected.
Case Drain Hose must be detached last,
to prevent damage to the fan motor.
Protecting Fan Hydraulic Motor Seals
Low Pressure (Case) Drain Connection
1. Attach case drain hose to low pressure drain
connection.
Note: Case drain hose has the smaller
1 ⁄
4
in I.D. hose
and small, flat-face, connector.
2. Connect low pressure motor return hose to low
pressure return connector. It is distinguished by a
large (1.06 in / 2.7 cm diameter) quick coupler.
Machine Damage Risk:
DO NOT connect the case drain line to a
power-beyond-port.
3. Connect hydraulic hoses to tractor remotes.
Color Hydraulic Function
Green Wing Fold / Marker Fold / Auxiliary
Blue Lift / (and Hitch if hydraulic tongue)
Black Fan
Yellow Hydraulic Drive

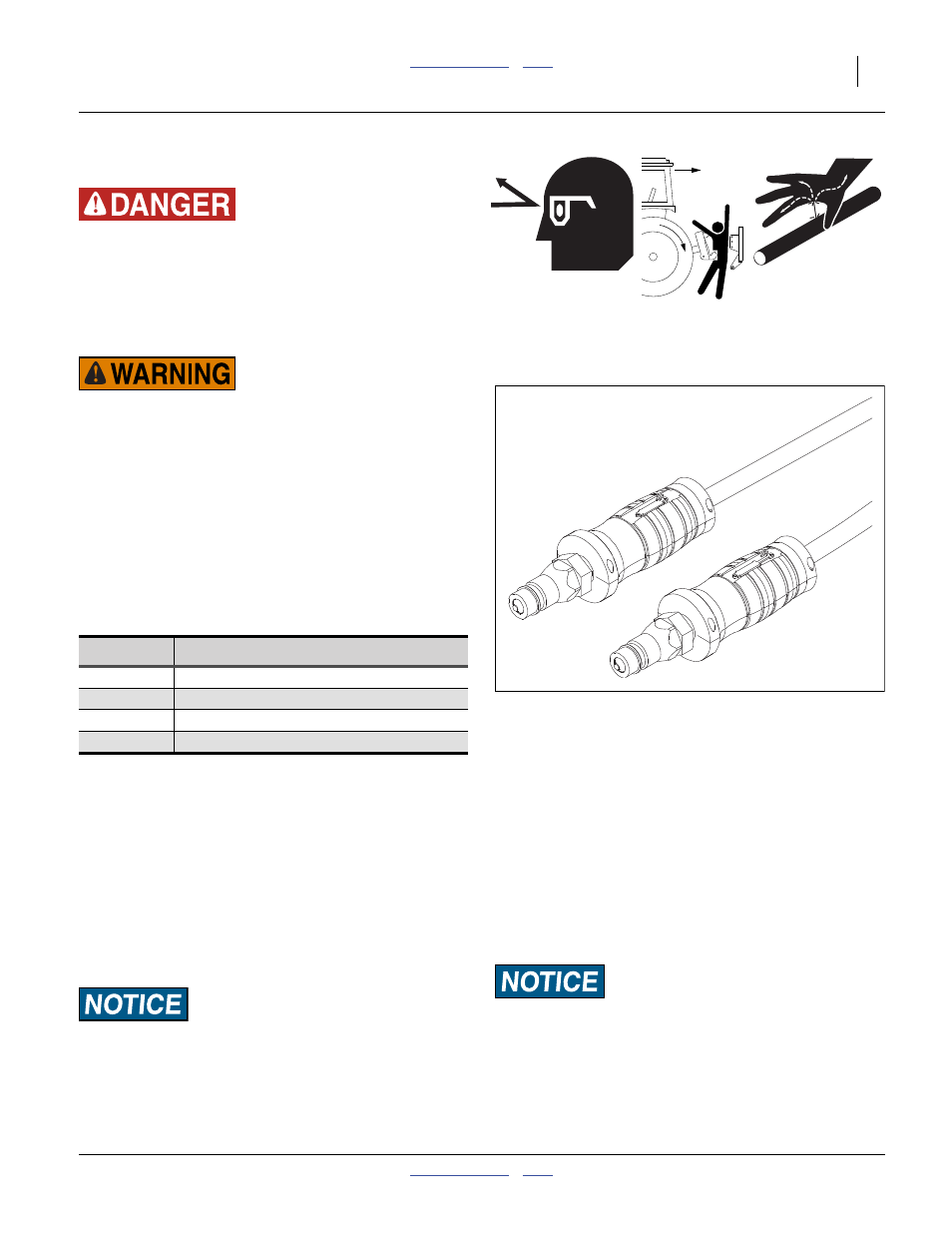

Figure 3
Hose Handles
31733
