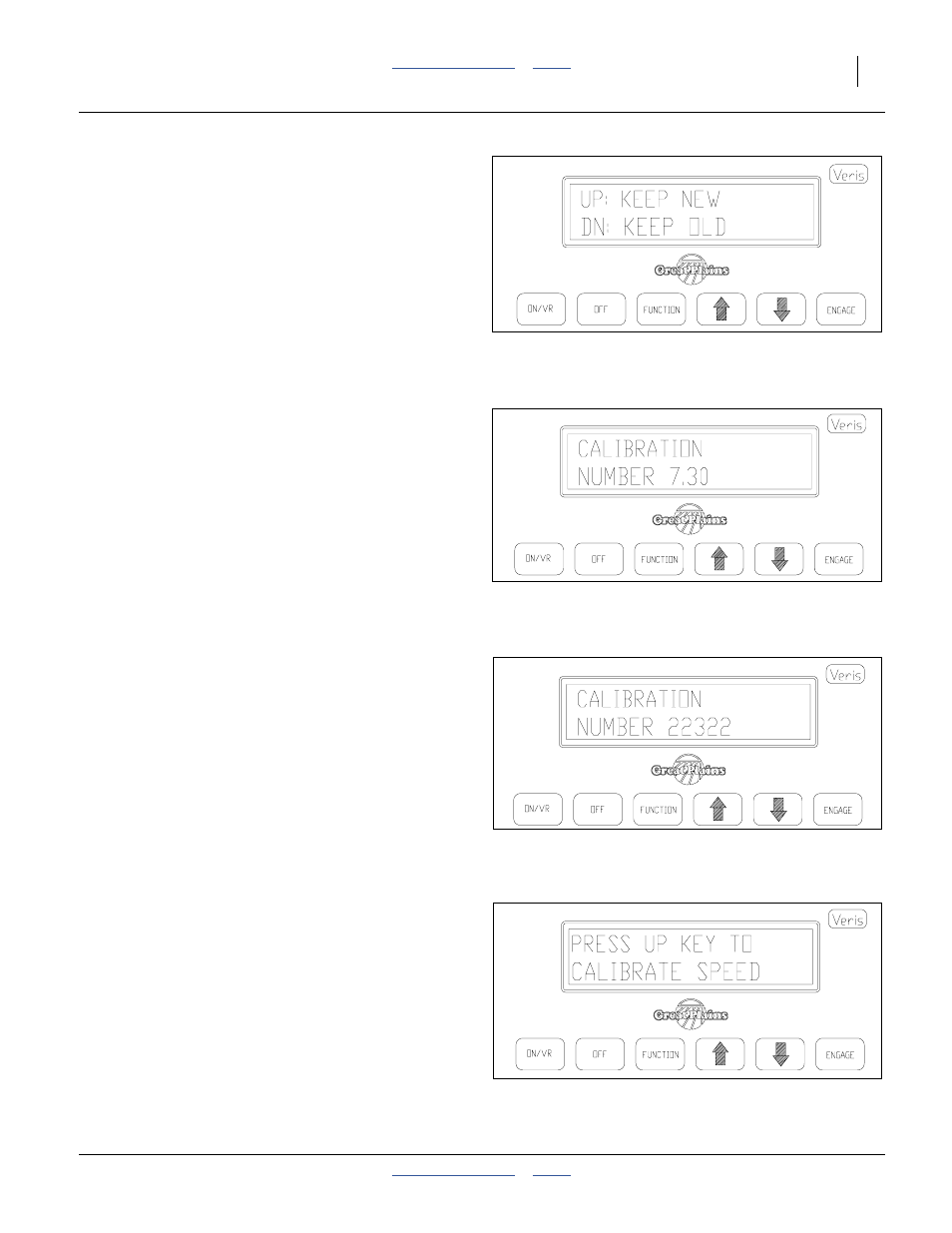

Refer to Figure 87
22. Press Function key to advance to window shown.
23. If you wish to keep the old number, perhaps to re-run
the calibration procedure, press the Down arrow key.
If you want to accept the New calibration number,
press the Up arrow key.
Refer to Figure 88
24. Console window now displays the calibration number
you have selected.
Refer to Figure 89
25. This returns you back to the beginning of Calibration
mode as shown. To re-run the Calibration procedure,
follow the steps outlined above. It is suggested that
you perform the calibration mode at least twice, and
additional replications may be needed if Target and
Actual amounts vary significantly.
Speed Calibration
In order to fine-tune the default speed calculation or to
convert to radar speed signal, the controller may be
calibrated as follows:
1.
Set two flags 400ft apart (100 meters if in metric
mode).
Refer to Figure 90
2.
To calibrate the Controller for speed, press the
Function key until the screen appears, as shown.
Figure 87
Calibration Number
22731
Figure 88
Calibration Number Accepted
22732
Figure 89
Cal. Mode Recycle
22733
Figure 90
Speed Cal. Mode
22788
