If the sensor is compatible, these cables share the signal between your existing tractor systems and the monitor.

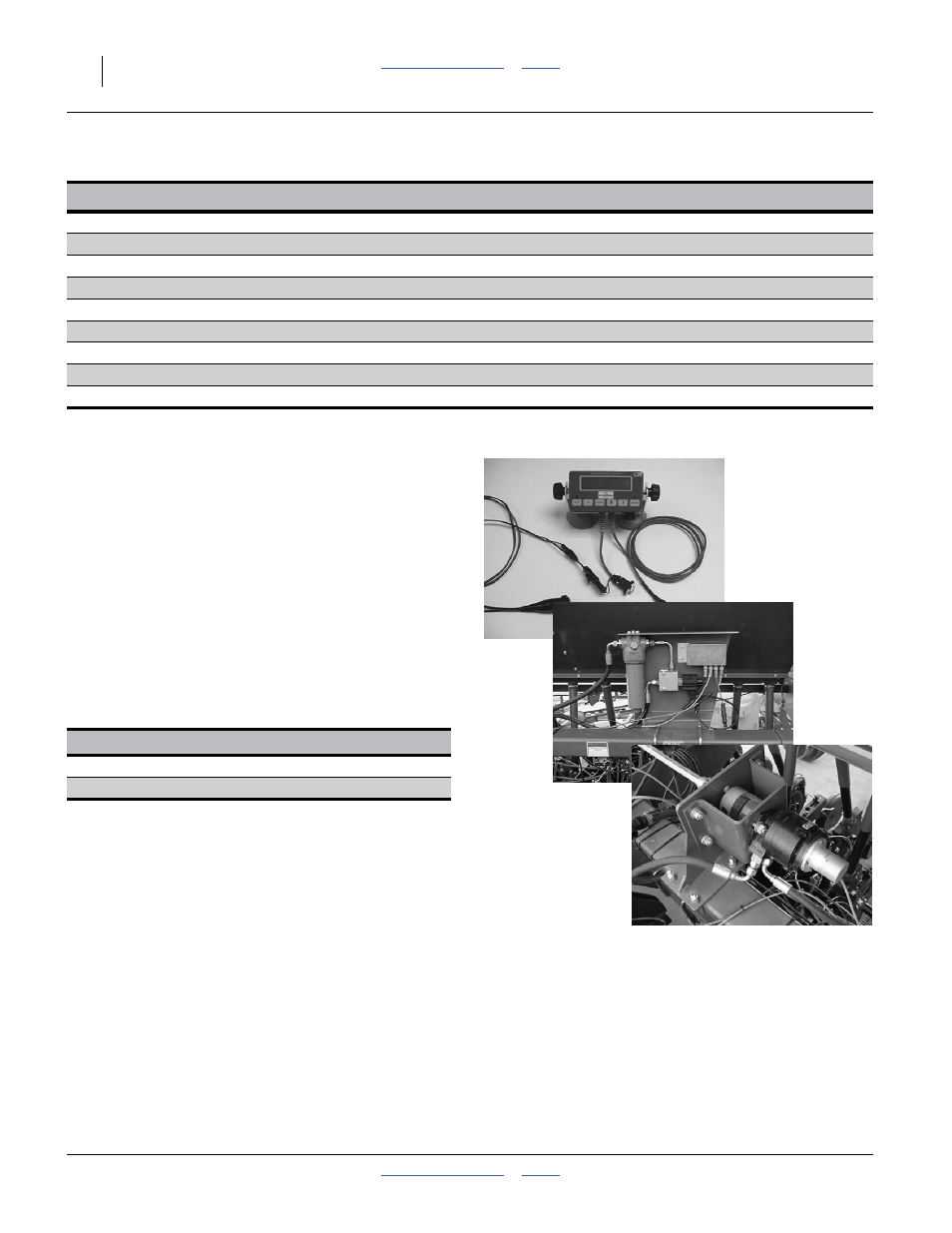

Hydraulic Meter Drive
This option provides direct and precise tractor cab
control of main box seed rate.
It replaces the ground drive Range and Transmission
chains with a hydraulic motor, motor controller and cab
console. The ground drive assemblies are left in place,
and are upgraded with speed sensors and a brake to
prevent freewheeling.
The hydraulic drive is dealer or field installed.
There are two models available. The “MT” (Min Till)
model is for drills hitched directly to tractors. The “NT”
(No Till) model includes longer hydraulic hoses, and is
intended for drills using accessory hitches.
Small Seeds and/or Fertilizer options are not presently
supported when a hydraulic drive is installed.
The hydraulic drive includes its own wheel-mounted
speed sensor, and does not use any radar installed. The
speed sensor included with the hydraulic drive is not
shared with the optional Seed Monitor.
For installation and use, see “Hydraulic Drive
Operation” starting on page 68.
Part Numbers
Comment
115-0159-432
TRW radar, Case IH
115-0159-519
DICKEY-john or Magnavox radar, John Deere 1990 or later
115-0159-518
DICKEY-john radar, Cat Challenger (Model 65 & 75)
115-0159-517
DICKEY-john radar, Case IH
115-0159-529
DICKEY-john radar, Ford/White
115-0159-627
DICKEY-john radar, Cat Challenger (Model 65C, 75C-Mod, D-Mod Row Crop 35,45,55)
115-0159-700
DICKEY-john or Magnavox radar, John Deere 7000/8000/9000 Series (2WD or MFWD)
117-0159-462
Magnavox radar, other than John Deere
117-0159-463
TRW radar, other than Case IH
Description
Part Number
VERIS VARI-RATE NO-TIL
120-296A
15P-20P-24P VERIS VARI-RATE MT
120-297A
19977
19974
19972
