152 1510HDP/2010HDP/2510HDP Table of Contents Index Great Plains Manufacturing, Inc.
118-245M Table of Contents Index 2013-10-21
2010HDP-2510 as “2010HDP-0740”
Baseline Span: 240in (609.6cm)
Active Span: 210in (533.4cm)
Swath: 280in (711.2cm)
Active Rows: 7 (18 unused)
Active Row Spacing: 30in (76.2cm)
Tire rotations: 229/acre; 566/hectare
2010HDP-25TRS Standard Spacing
Span: 240in (609.6cm)
Swath: 250in (635cm)
Rows: 25 (16 twin / 8 pairs, 9 splits, all used)
Swath-Averaged Row Spacing: 10in (25.4cm)
Twin Row Spacing: 30in (76.2cm) pair-to-pair on pair center
Twin Pair Spacing: 8in (20.3cm) row-to-row in pair
Skip Row Spacing: 11in 27.9cm) skip-row to a row of adjacent twin
Tire rotations: 257/acre; 635/hectare
160 160
2010HDP-2510
as -0740

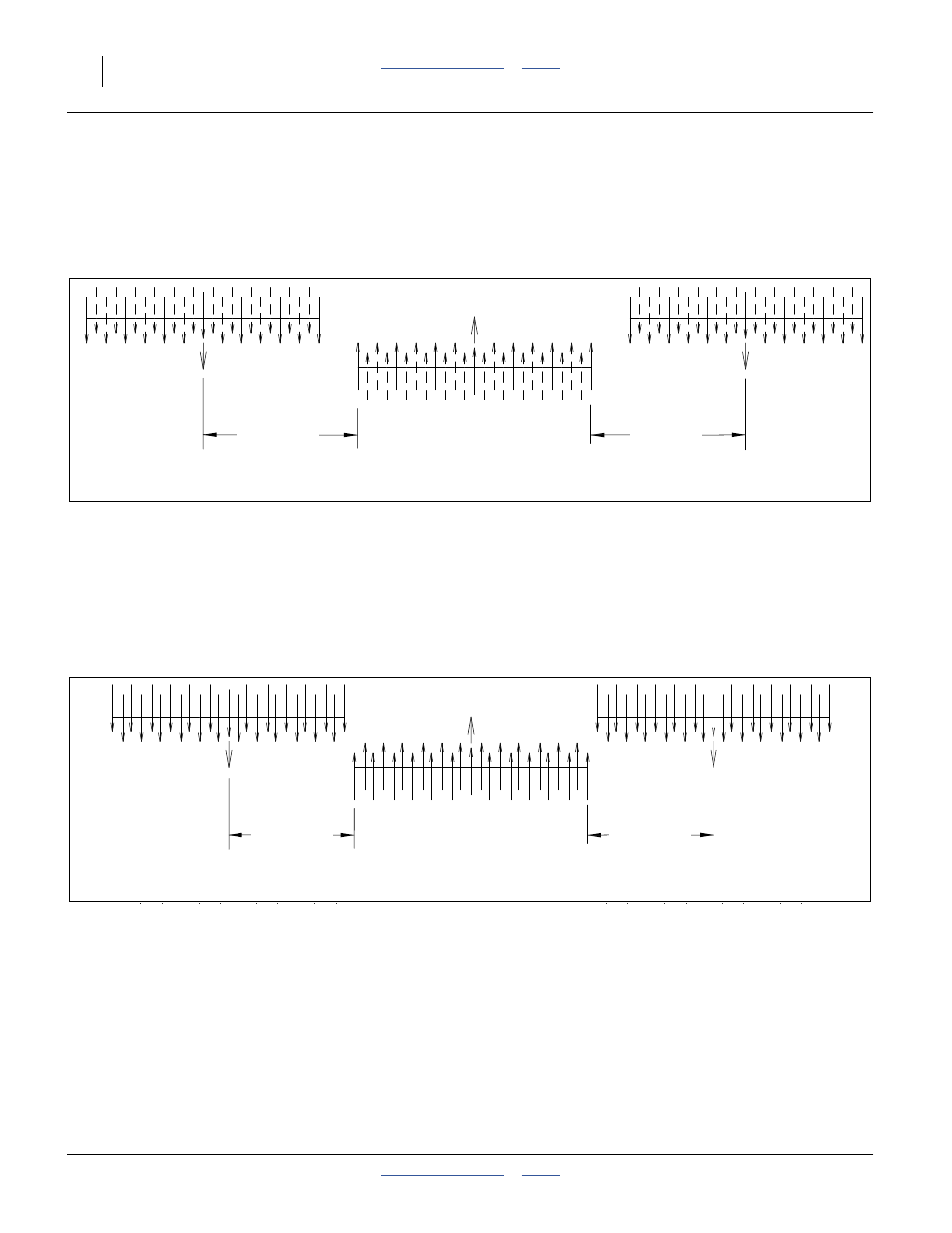

Figure 154: Model 2010HDP-2510 20ft 10HD Series
Non-standard spacing: 8 Single 30in Rows; 17 rows unused
27402
160 in
406.4 cm
160 in
406.4cm
plits
Gp)
-1))
s-1))
ow sp.)
130 130
2010HDP-25TRS
Standard Spacing
Figure 155: Model 2010HDP-25TRS 20ft 10HD Series
Standard spacing: 25 Rows (16 Twin 30 / 9 Split), 8in Pairs; all used
27419
130 in
330.2 cm
130 in
330.2 cm
