2510HDP-20TR30 as 2510HDP-1030
Baseline Span: 278in (706.1cm)
Active Span: 270in (685.8cm)
Swath: 300in (762cm)
Active Rows: 10 (10 unused)
Active Row Spacing: 30in (76.2cm)
Tire rotations: 214/acre; 529/hectare
2510HDP-2910 Standard Spacing
Span: 280in (711.2cm)
Swath: 290in (736.6cm)
Rows: 29 (all used)
Row Spacing: 10in (25.4cm)
Tire rotations: 221/acre; 546/hectare
2510HDP-2910 as “2510HDP-1520”
Span: 280in (711.2cm)
Swath: 300in (762cm)
Active Rows: 15 (14 unused)
Active Row Spacing: 20in (50.8cm)
Tire rotations: 214/acre; 529/hectare
169 153
2510HDP-20TR30
as -1030

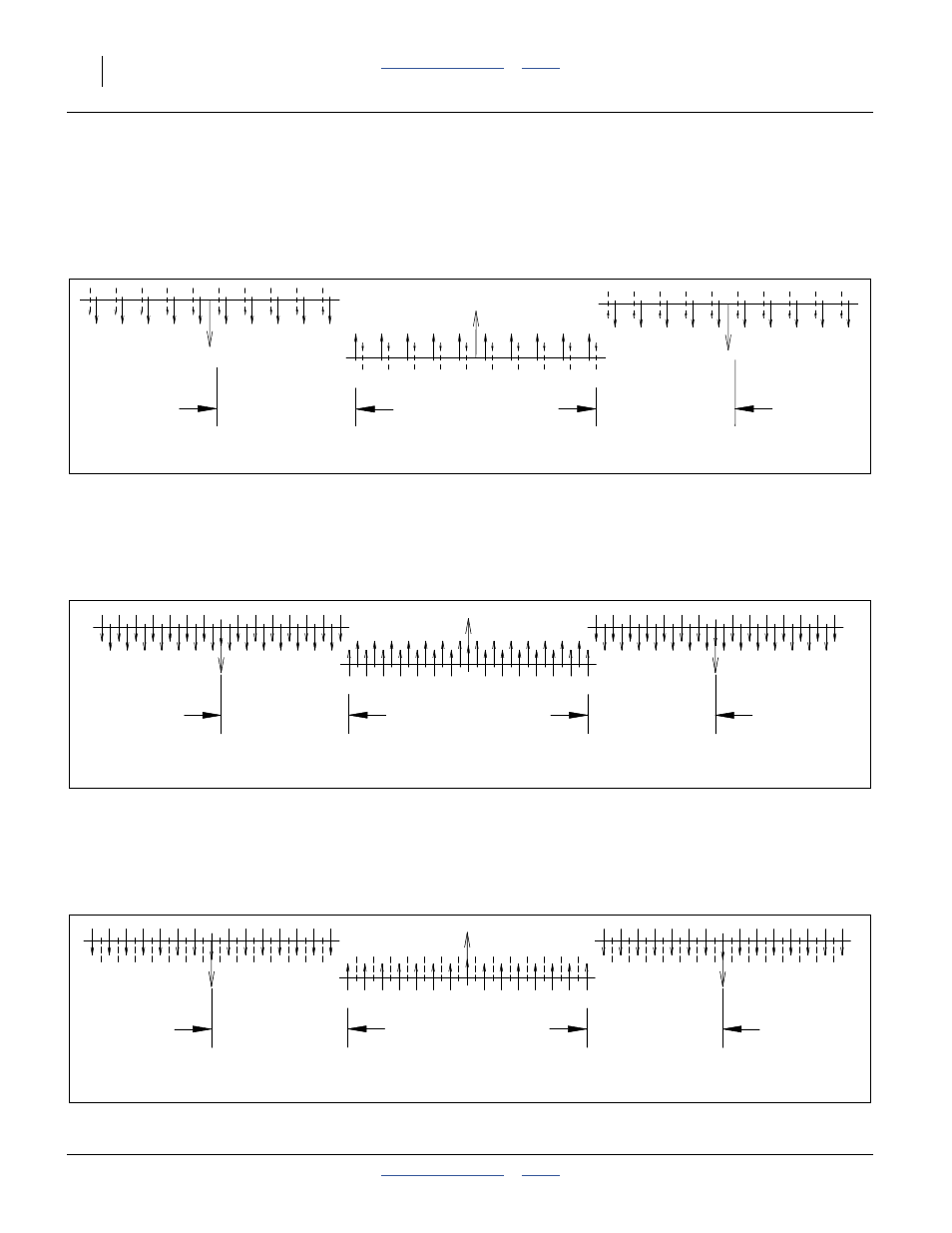

Figure 166: Model 2510HDP-20TR30 25ft 10HD Series
Non-standard spacing: 10 Single 30in Rows; 10 rows unused
27423
169 in
429.3 cm
153 in
388.6 cm
150.0 150.0
2510HDP-2910
standard spacing
Figure 167: Model 2510HDP-2910 25ft 10HD Series
Standard spacing: 29 Single 10in Rows; all rows used
27396
150 in
381 cm 150 in
381 cm
160.0 160.0
2510HDP-2910
as -1520
Figure 168: Model 2510HDP-2015 25ft 10HD Series
Non-standard spacing: 15 Single 20in Rows; 14 rows unused
27396
160 in
406.4 cm
160 in
406.4 cm
