Electrical Connections
Refer to Figure 7
9.
Plug drill electrical lead into tractor seven-pin
connector. If your tractor is not equipped with a
seven-pin connector, contact your dealer for
installation.
10. If the drill is equipped with the optional seed monitor,
mate the connector for the cab console.
See “Seed Monitor Cab Module” on page 22 for
installation.
See “Seed Monitor” on page 122 for ordering
information.
11. If the drill is equipped with the optional hydraulic
meter drive, mate the connector for the cab console.
See “Hydraulic Console Installation” on page 23 for
installation.
See “Hydraulic Meter Drive” on page 124 for ordering
information.
12. If the drill is equipped with one or more speed
sensors (radar and.or magnetic) mounted on the drill
mate the connectors for the cab displays.
See “Speed Sensor Installation” on page 22 for
installation.
See “Speed Sensors” on page 122 for ordering
information.

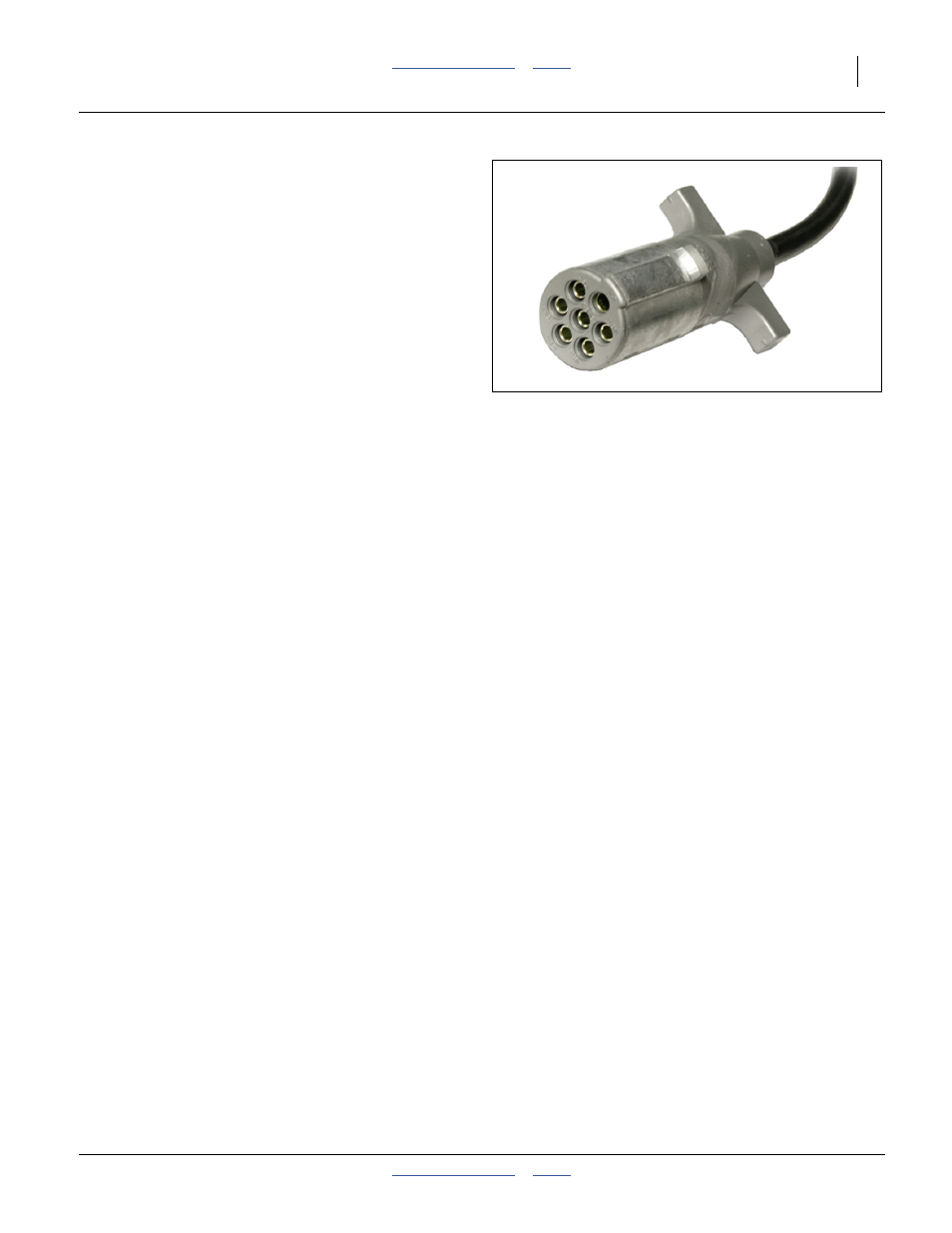

Figure 7
