1510HDP-2475 as “1510HDP-12TR30”
Baseline Span: 172.5in (438.2cm)
Active Span: 158in (401.3cm)
Swath: 180in (457.2cm)
Active Rows: 12 / 6 pair (12 rows unused)
Active Twin Row Spacing: 30in (76.2cm) pair-to-pair on pair centerline
Active Twin Pair Spacing: 7.5in (19.1cm) row-to-row in pair
Tire rotations: 365/acre; 902/hectare
1510HDP-2475 as “1510HDP-0630”
Baseline Span: 172.5in (438.2cm)
Active Span: 150in (381cm)
Swath: 180in (457.2cm)
Active Rows: 6 (18 unused)
Active Row Spacing: 30in (76.2cm)
Tire rotations: 365/acre; 902/hectare
1510HDP-2475
as -12TR30
93.75 93.75
93.75 in
238.1 cm

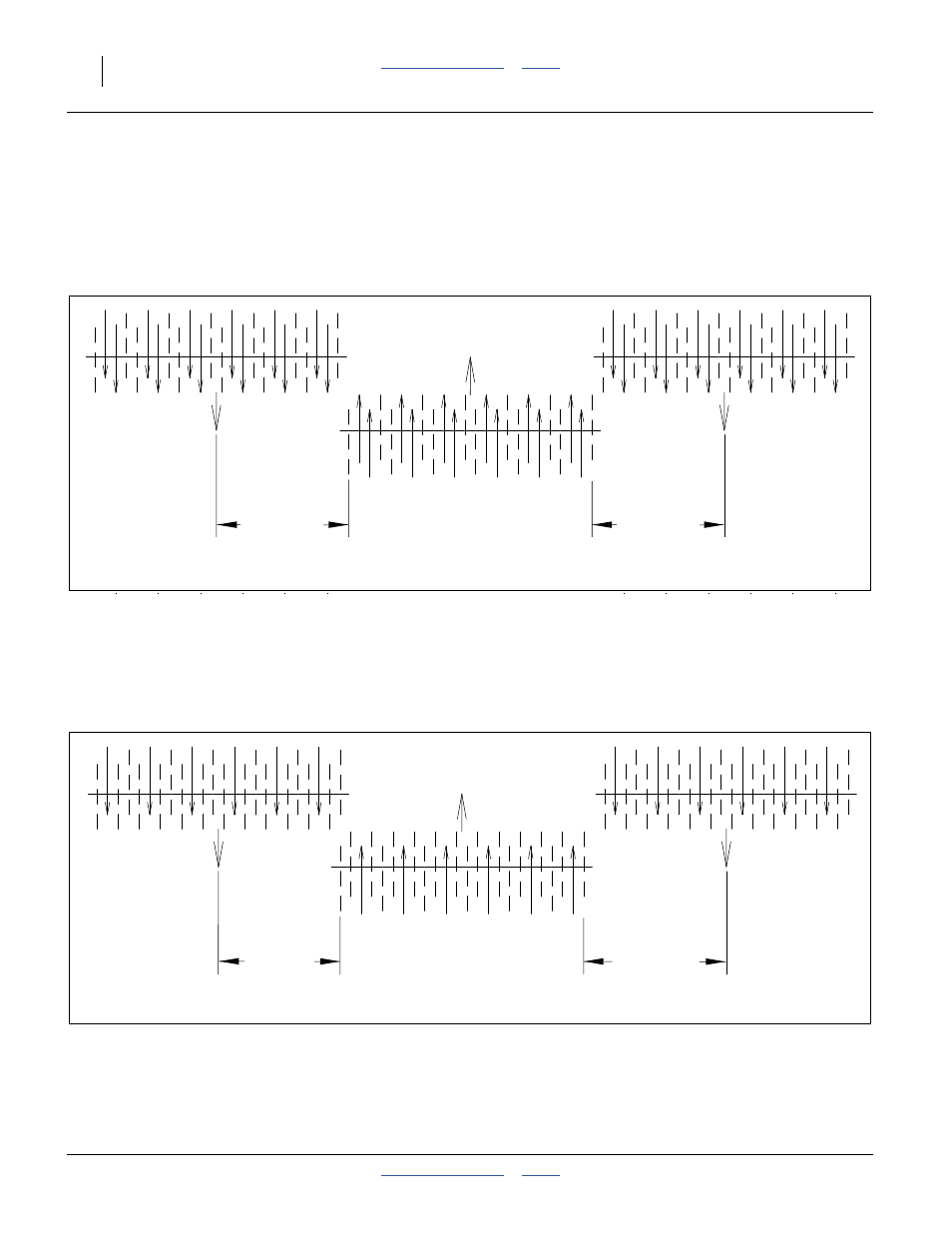

Figure 142: Model 1510HDP-2475 15ft 10HD Series
Non-standard spacing: 12 Twin 30in Rows; 12 rows unused
27400
93.75 in
238.1 cm
1510HDP-2475
as -0630
101.25 86.25
86.25 in
219.1 cm
Figure 143: Model 1510HDP-2475 15ft 10HD Series
Non-standard spacing: 6 Single 30in Rows; 18 rows unused
27400
86.25 in
219.1 cm
