68 1510HDP/2010HDP/2510HDP Table of Contents Index Great Plains Manufacturing, Inc.

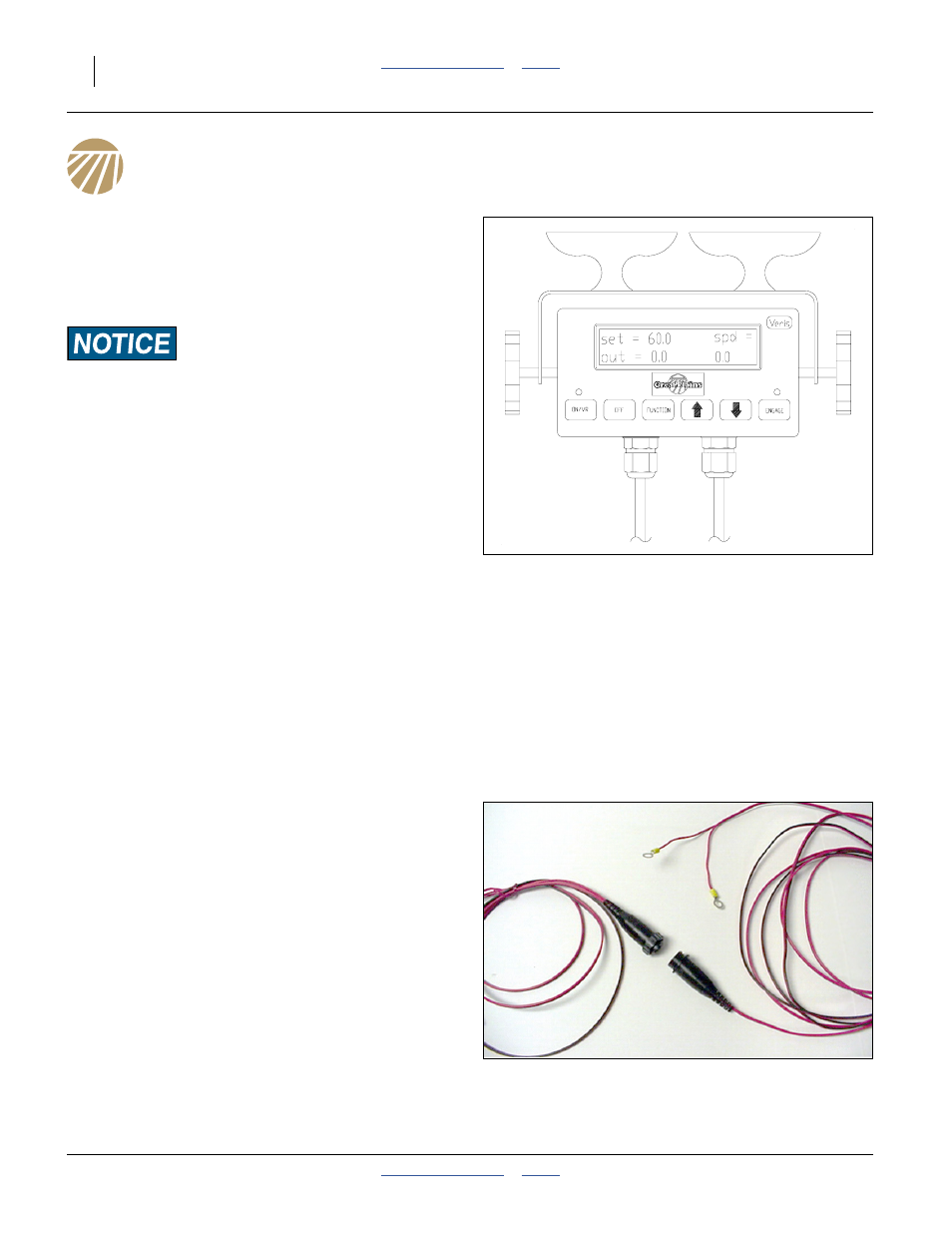

Hydraulic Drive Operation
Drive Operational Requirements
Hydraulic System:
Closed Center, pressure compensated or load sensed
systems only
Drive will not operate on Open-Center hydraulic systems
Electrical System:
Tractor Hookup
Hydraulics:
1. Connect pressure hose (P) to retraction outlet
2. Connect motor return hose (T) to motor return port (if
available) or to extension outlet.
3. Set flow rate at maximum required flow of 13 gpm.
4. If tractor is equipped with electro-hydraulic valves,
set timer to “constant” flow.
Electrical:
Refer to Figure 69
Power must be connected directly to the battery. Make
sure that eyelets are properly connected (red to positive,
black to negative). Connect female socket to power port
adapter.
Minimum Hydraulic Pressure 2250 psi
Maximum Hydraulic Pressure 3000 psi
Maximum Required Flow 8.5 gpm
Voltage 12 volt DC
Current 4 amperes
22715
Figure 69
Controller Electrical Connection
22714
