2010HDP-25TRS as “2010HDP-0830”
Baseline Span: 240in (609.6cm)
Active Span: 210in (533.4cm)
Swath: 240in (609.6cm)
Active Rows: 8 (left unit of twins; 17 rows unused)
Active Row Spacing: 30in (76.2cm)
Tire rotations: 268/acre; 662/hectare
2010HDP-3275 Standard Spacing
Span: 232.5in (590.6cm)
Swath: 240in (609.6cm)
Rows: 32 (all used)
Row Spacing: 7.5in (19.1cm)
Tire rotations: 268/acre; 662/hectare
109 109
2010HDP-25TRS
as -0830

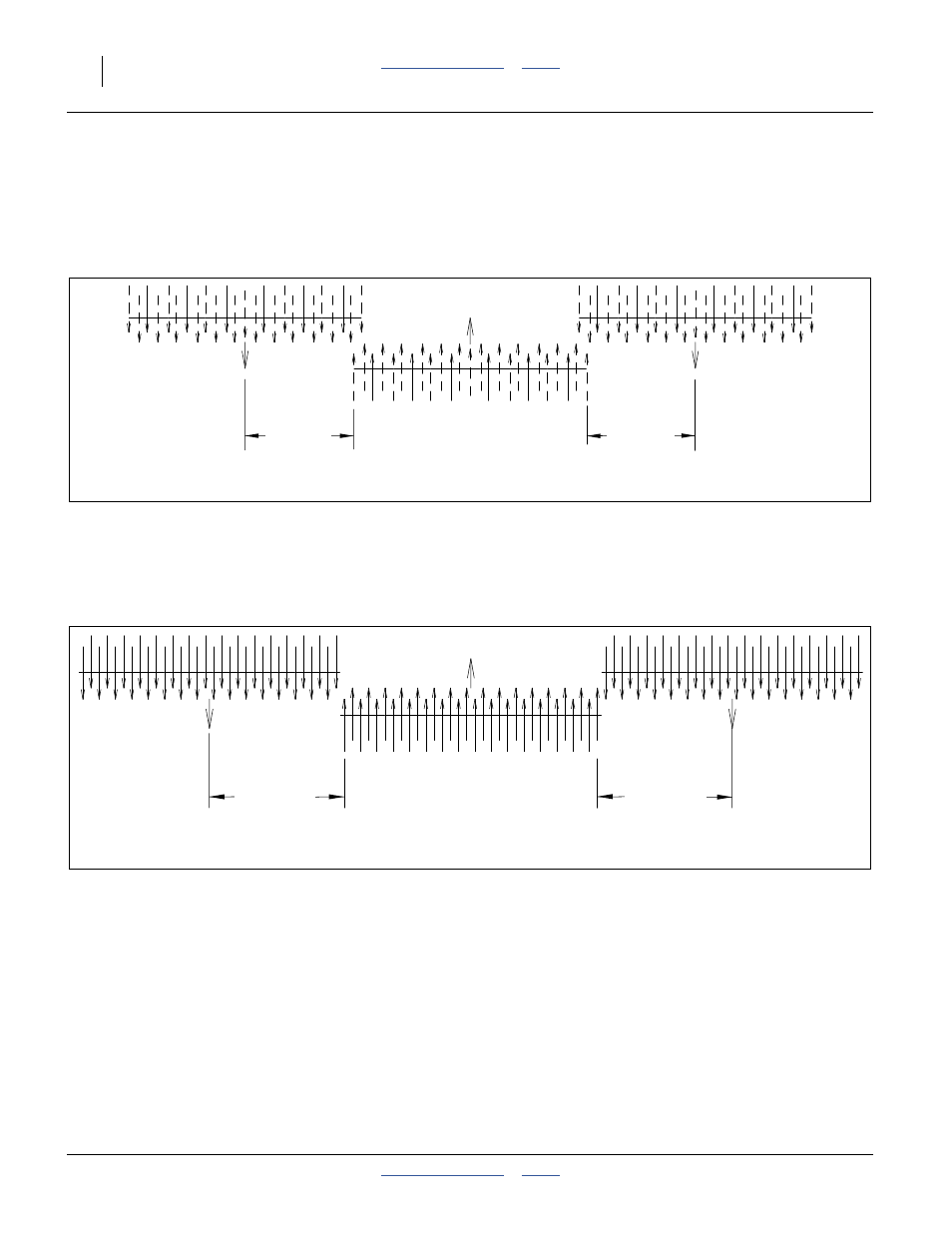

Figure 158: Model 2010HDP-25TRS 20ft 10HD Series
Non-standard spacing: 8 Single 30in rows; 17 rows unused
27419
109in
276.9cm
109in
276.9cm
123.75 123.75
2010HDP-3275
Standard Spacing
Figure 159: Model 2010HDP-3275 20ft 10HD Series
Standard spacing: 32 Single 7.5in Rows; all used
27403
123.75in
314.3cm
123.75in
314.3cm
