2510HDP-2910 as “2510HDP-1420”
Baseline Span: 280in (711.2cm)
Active: Span: 260in (660.4cm)
Swath: 280in (711.2cm)
Active Rows: 14 (15 unused)
Active Row Spacing: 20in (50.8cm)
Tire rotations: 229/acre; 566/hectare
2510HDP-2910 as “2510HDP-1030”
Baseline Span: 280in (711.2cm)
Active Span: 270in (685.8cm)
Swath: 300in (762cm)
Active Rows: 10 (19 unused)
Active Row Spacing: 30in (76.2cm)
Tire rotations: 214/acre; 529/hectare
2510HDP-2910 as “2510HDP-0840”
Span: 280in (711.2cm)
Swath: 320in (812.8cm)
Active Rows: 8 (21 unused)
Active Row Spacing: 40in (101.6cm)
Tire rotations: 201/acre; 497/hectare
140.0 140.0
2510HDP-2910
as -1420

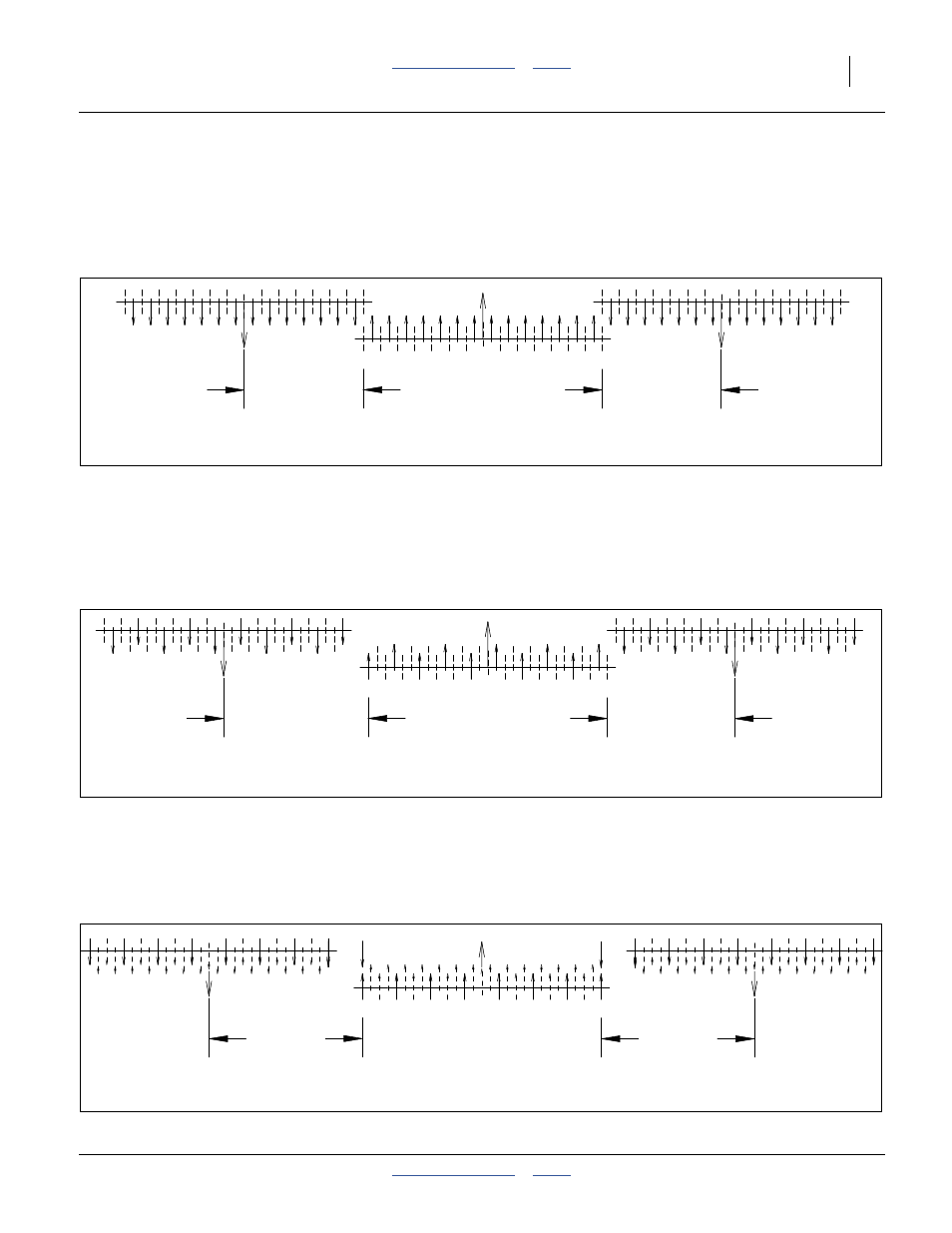

Figure 169: Model 2510HDP-2015 25ft 10HD Series
Non-standard spacing: 14 Single 20in Rows; 15 rows unused
27396
140 in
355.6 cm
140 in
355.6 cm
170.0 150.0
2510HDP-2910
as -1030
Figure 170: Model 2510HDP-2015 25ft 10HD Series
Non-standard spacing: 10 Single 30in Rows; 19 rows unused
27396
170 in
431.8 cm
150 in
381 cm
180.0 180.0
2510HDP-2910
as -0840
Figure 171: Model 2510HDP-2015 25ft 10HD Series
Non-standard spacing: 10 Single 30in Rows; 19 rows unused
27396
180in
457.2cm
180in
457.2cm
