Great Plains Manufacturing, Inc.
Preparation and Setup
19
2014-09-09
401-312M
Raise Parking Stands

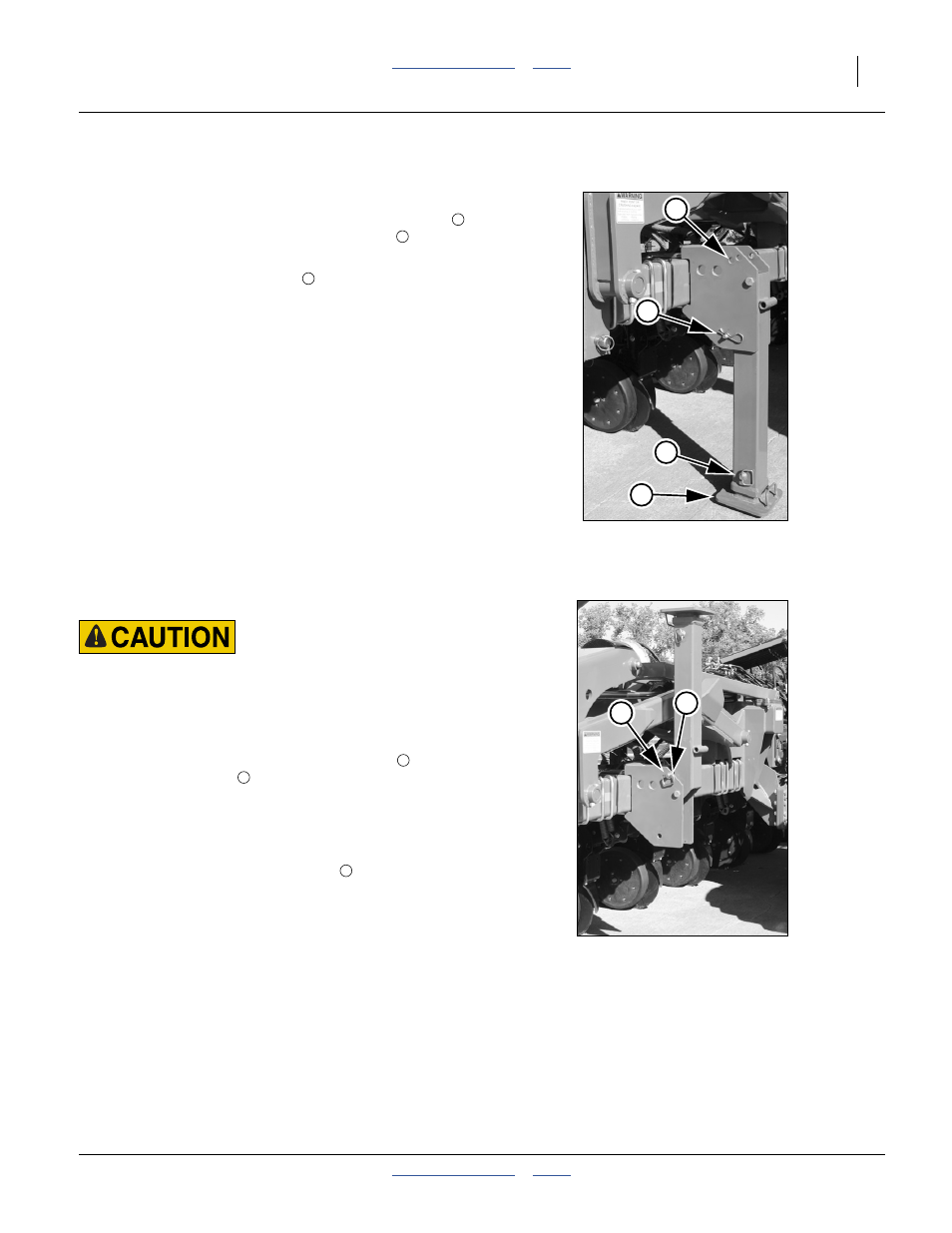

Refer to Figure 12
1.
If not already at minimum length, remove lower pin
of parking stand, fully retract the inner leg
, and
re-insert pin.
2.
Remove upper (holding) pin
of parking stand (at
bottom of hinge bracket).
Refer to Figure 13
Falling Object Hazard:
Do not stand directly in front of the stand while raising it. You
need to have one hand free to insert the pin, and if you lose
your grip on the stand, it can swing down and inflict injury.
3.
Swing the parking stand forward and up until it is
above the rear hole. Place the holding pin
in the
rear-most top hole
of the hinge plate. This is the
parking stand position for transport and field
operation.
Note: If 3PYP is equipped with row cleaners, the stand
may not be able to get fully vertical. It may be
necessary to use front top hole
.
4.
Secure hoses and cables to that they have sufficient
slack for hitch movements, but cannot get caught
between moving parts of planter. Failure to safely
route and secure hoses and cables could result in
damage requiring component repair/replacement,
and lost field time.
Figure 12
Raising Parking Stand
25240
1
2
3
4
1
2
3
Figure 13
Parking Stand Raised
25241
4
5
1
4
5
