TRANSMIG VAF4

Manual 0-5231

3-19

INSTALLATION, OPERATION AND SETUP

Removing Euro MIG Torch Adaptor

1. Remove the top cover from the base.

a. Open side door to access door earth wire.
b. Disconnect the earth wire from the door and then close the door again.
c. Remove the six screws on the top cover and the four screws on the side of the cover, then remove the

cover. Keep the screws for future use.

Art # A-11519

Earth Wire

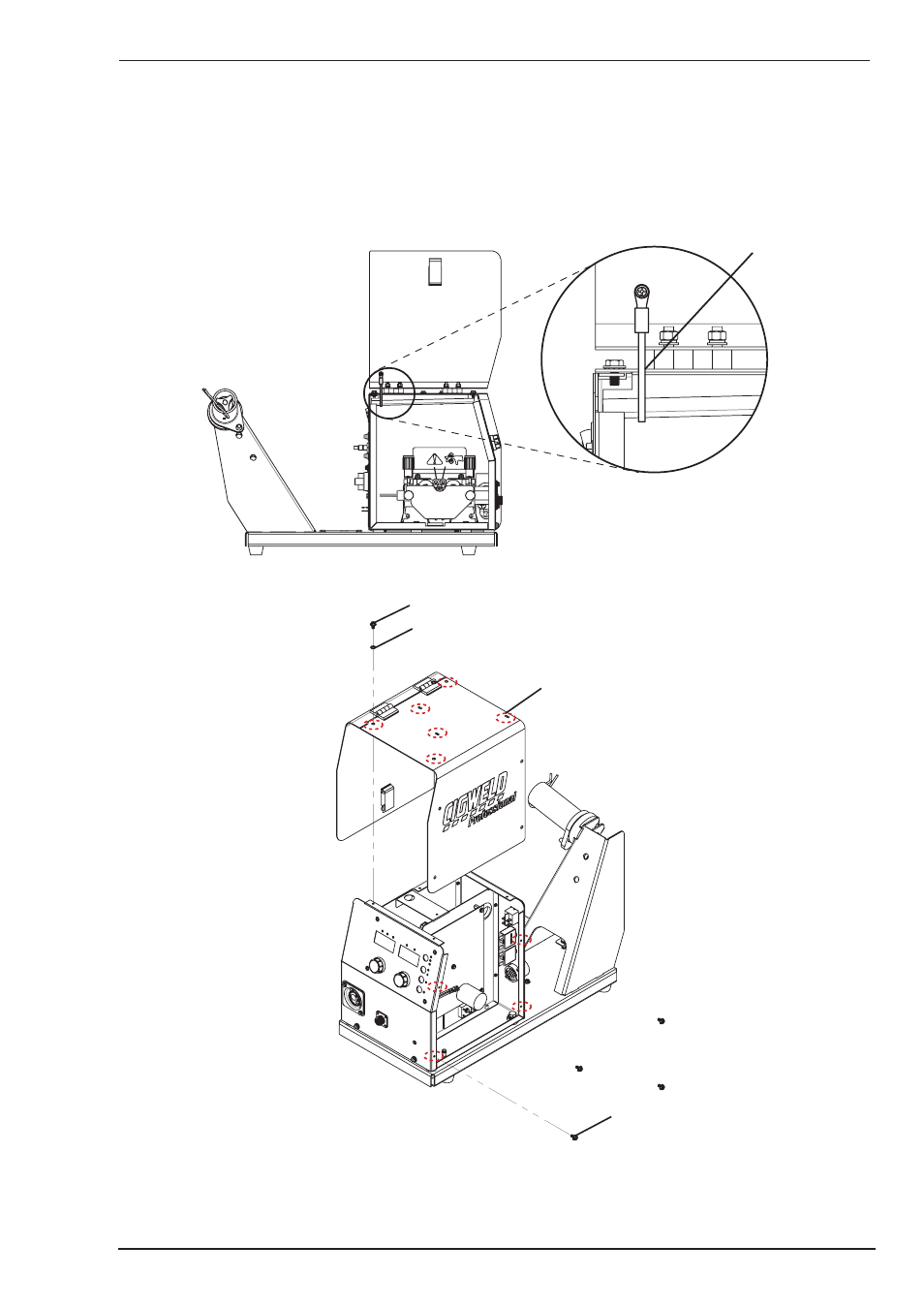

Figure 3-11 Removing Earth Wire

Screw

Star Washer

Screw

Art # A-11520

(Note: For clarity of picture, some

screws are not shown.)

Screw Hole

Figure 3-12 Removing the Cover
