TRANSMIG VAF4
Manual 0-5231 3-17 INSTALLATION, OPERATION AND SETUP

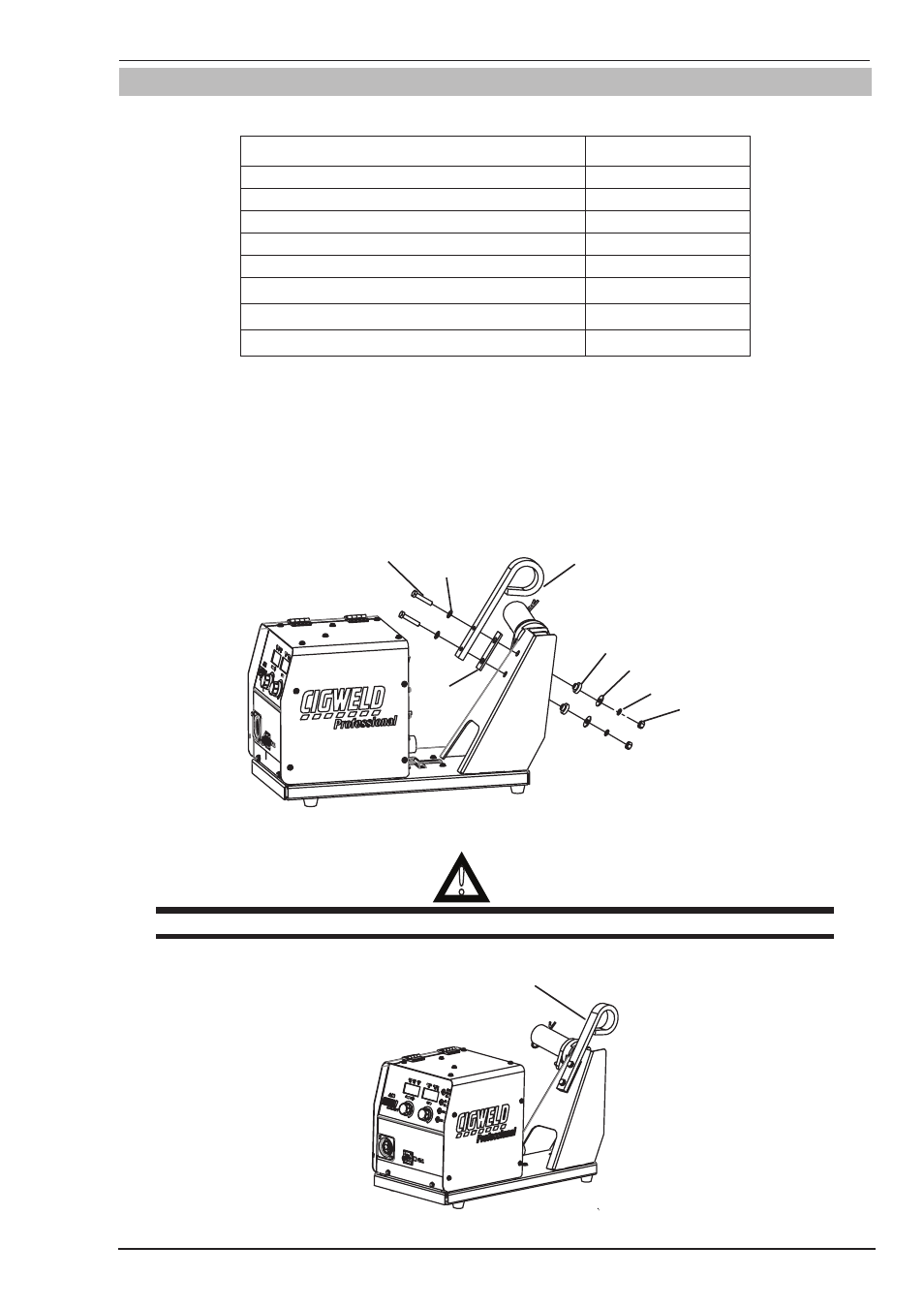

3.12 Installing Lifting Eye Kit (Optional)
The following components are included:
Description Quantity
Lifting Eye 1
Insulator Plate 1
Bolt, M8 × 40 (with torque 45~59 N.m.) 2
Flat Washer (smaller), M8 (with torque 45~59 N.m.) 2
Flat Washer (larger), M8 (with torque 45~59 N.m.) 2
Insulator Washer, M8 (with torque 45~59 N.m.) 2
Spring Washer, M8 (with torque 45~59 N.m.) 2
Nut, M8 (with torque 45~59 N.m.) 2
Table 3-7 Lifting Eye Kit
Install the lifting eye as below:
1. Loosen the M10 x 50 Bolts, M10 Flat Washers, M10 Spring Washers and M10 Nuts with 17mm wrench
that secure the handle assembly and remove the handle assembly and fixings from the base assembly.
Refer to Figure 3-7.
2. Use 14mm wrench to secure the lifting eye and insulator plate to the base assembly using the M8 x 40
Bolts, M8 Flat Washers, M8 insulator washers, M8 Spring Washers and M8 Nuts as supplied with this kit.
Lifting Eye
Art # A-11473_AB
Bolt, M8 × 40 Flat Washer
(smaller), M8
Insulator Washer, M8
Flat Washer (larger), M8
Spring Washer, M8
Nut, M8
Insulator Plate
Figure 3-9 Installing Lifting Eye
!
WARNING
Fully tighten all the fasteners with torque 45~59 N.m.
Refer to the figure below for the assembled lifting eye.
Lifting Eye
Art # A-11474_AB
Figure 3-10 Assembled Lifting Eye
