TRANSMIG VAF4
Manual 0-5231
3-13
INSTALLATION, OPERATION AND SETUP
Advanced Feature
Left Display
Feature Description
Right Display
Parameter / Selection

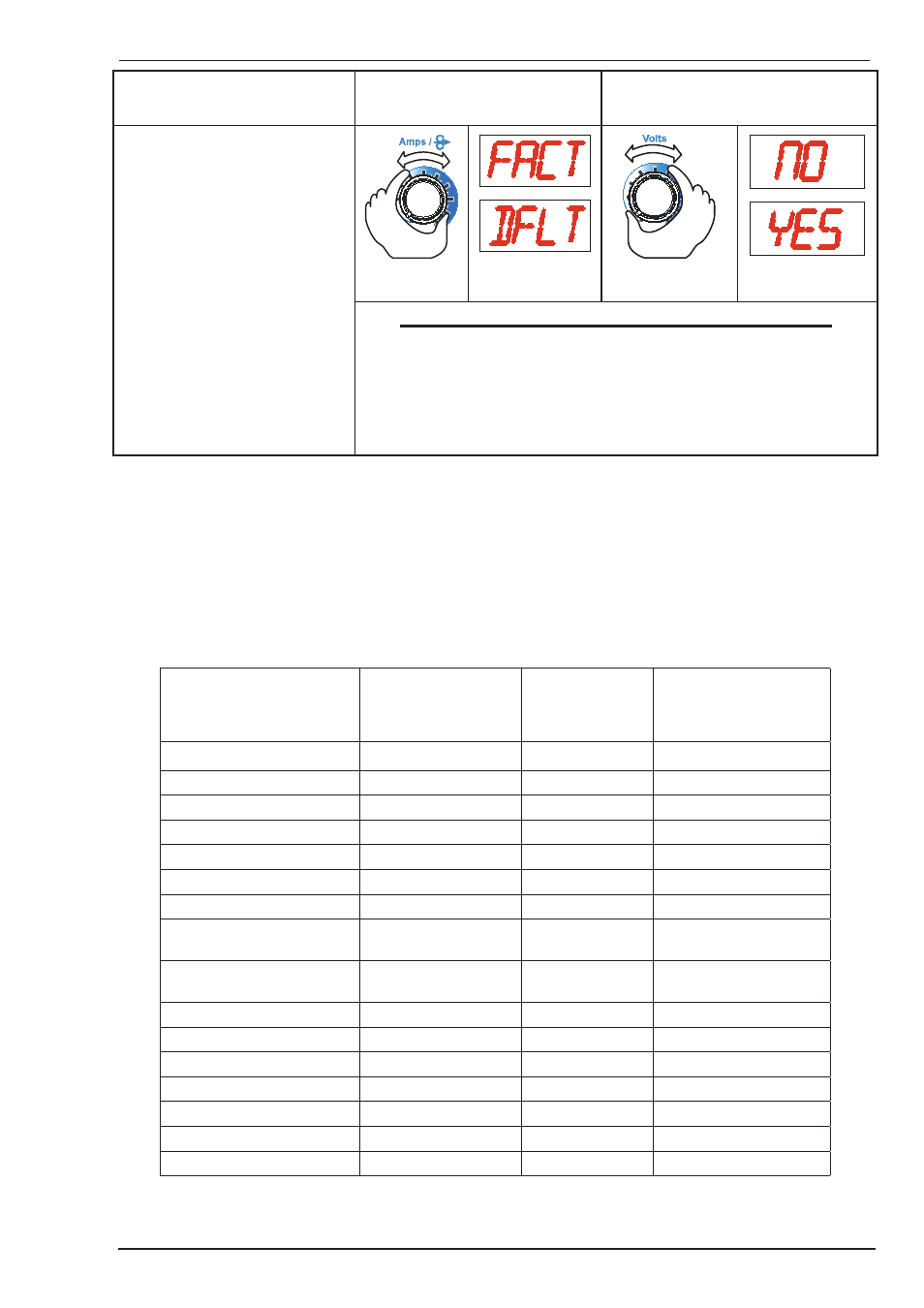

Restore Factory Defaults
1
This resets all the user adjustable
values in this table (except Arc
Hour Accumulated Runtime) to the
Factory Default Values.
Restore Factory
Default No / YES
caution
Schedule SCH1 & SCH2 settings will be reset to factory default
settings when YES is selected with Restore Factory Defaults.
Exit Advanced Features Mode: by pressing both the left knob and right knob at the
same time for more than 1.2 seconds to Save the Settings and exit advanced features
mode. Note if there has been no user input for 30 seconds, the VAF4 will save settings
and automatically exit advanced programming mode.
Table 3-3 Advanced Features
Factory Default Setting
Factory Default Setting of Non-Schedule: Trigger mode: 2T; Wirefeed speed: 14.0 MPM; Voltage: 26.0V.
Suits Autocraft LW1-6, 0.9mm Hard Wire with Shielding Gas:- 91.9% Ar, 5% CO
2
, 3.1% O
2
.
Factory Default Setting of Schedule 1: Wirefeed speed: 11.5 MPM; Voltage: 29.0V.
Suits Autocraft LW1-6, 1.2mm Hard Wire with Shielding Gas:- 75 - 80% Ar, 20 - 25% CO
2
.
Factory Default Setting of Schedule 2: Wirefeed speed: 9.0 MPM; Voltage: 29.0V.
Suits Verti-Cor 3XP, 1.6mm Flux Cored Wire with Shielding Gas:- 75 - 80% Ar, 20 - 25% CO
2
.
Advanced Feature
Left Display
Feature
Description
Right Display
(Default)
Comments
MIG Control
MIG/CNTR
LOCL
Pre Flow
PRE/FLOW
0.1
Run In
RUN/IN
70
Ramp Time
RAMP/TIME
0.2
Post Flow
POST/FLOW
0.1
Burn Back
BURN/BACK
0.15
Crater
CRAT
OFF
Only in 4T Mode
Crater Volts
CRAT/ VOLT
70
Only when in 4T Mode
and Crater is ON
Crater Wirefeed Speed
CRAT/ WFS
70
Only when in 4T Mode
and Crater is ON
Spot Time
SPOT/TIME
2.0
Only in Spot Mode
Stitch Mode
STCH
OFF
Only in 2T & 4T Modes
Stitch Time
STCH/TIME
2.0
Only when Stitch is ON
Dwell Time
DWEL/TIME
0.5
Only when Stitch is ON
Wirefeed Speed Units
WFS/UNIT
MPM
Left Display Type
LEFT/DISP
AMPS
Right Display Type
RGHT/DISP
VARC
Table 3-4 Factory Default Setting
