HMC-410
A-8 July 27, 2005

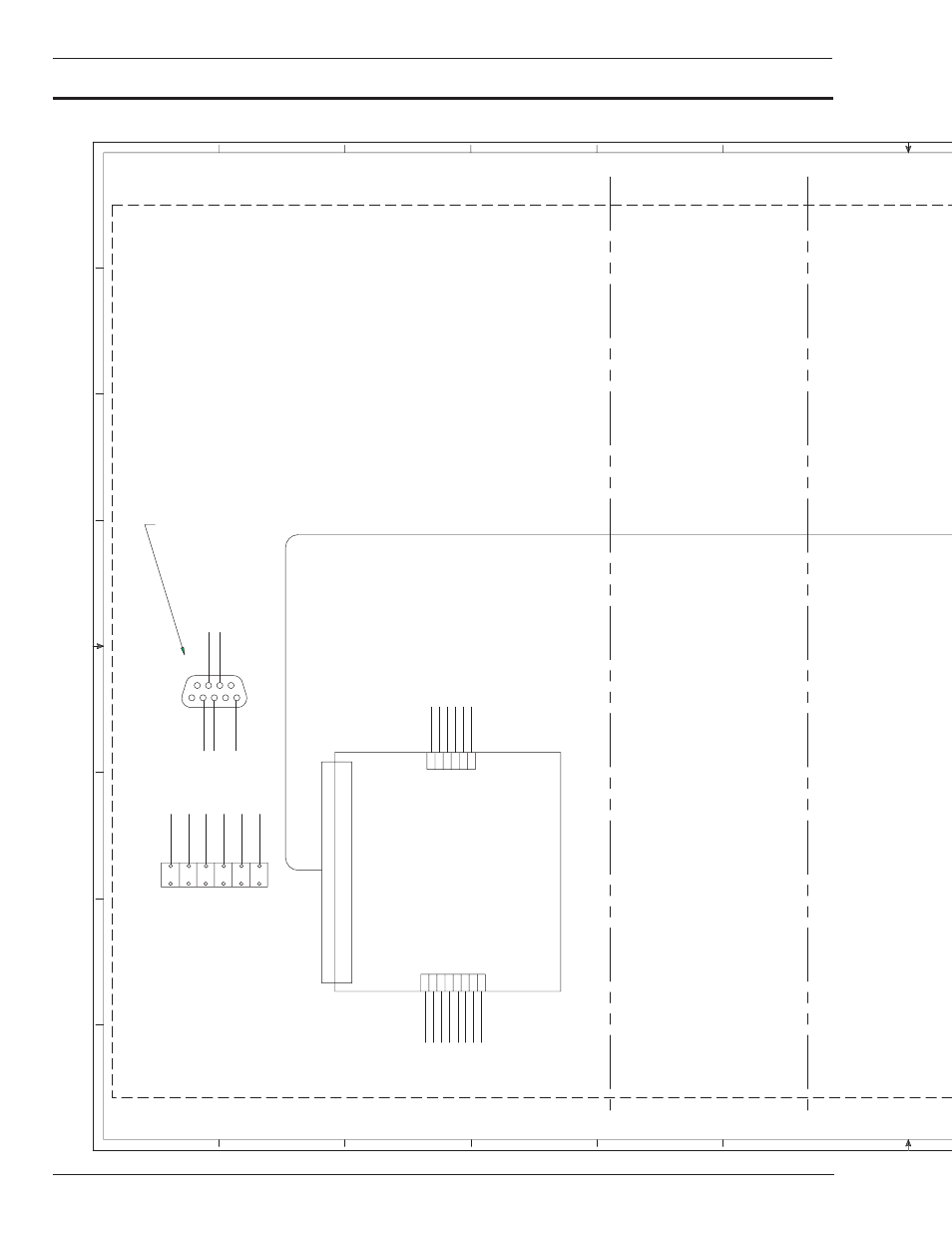

APPENDIX 5: SCHEMATIC DIAGRAM 4 OF 4
29
28
27
31
30
OPTIONAL (ROBOTIC INTERFACE OPTIONS SHOWN ONLY)
SEE SHEETS 1 AND 2 FOR STANDARD UNIT.
BOTTOM REAR
22
1
70 BR 68 RD 69 YL 65 BK 64 WT 63 GY 66 OR 67 BL
22 22 22 22 22 22 22
6 3 2 4 5 8 7
AMPHENOL
P.C. BOARD
J1
J4
71 YL 75 OR 74 BL 73 GY 72 BR 76 VT
J3
1 2 4 3 6 5
31 31 31 31 31 31
6 TB-1 5 3 4 1 2
76 VT
27
75 OR
27
73 GY 74 BL
27 27
72 BR 71 YL
27 27
47 RD
24
49 OR
24
50 VT 48 BK
24 24
51 GY
24
J11
1 2 3 4 5
6 9 7 8
100050-2 ONLY
J11 USED ON SPEC.
12 11 10 9 8 7
7 8 9 10 11 12
A
B
C
D
E
F
G
H
Art # A-05058
