IMPORTANT INFORMATION:
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact
Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
1. Slide 5/16 carriage bolts into extrusion t-slots. Place mounting foot
onto slots and tighten foot with washer and nut, ensuring the use of
either a lock washer or lock nut
2. Temporarily place lightbar in its correct position on the roof of the
vehicle. The bar should be positioned about the center of the vehicle B
pillar. Determine the appropriate position of the mounting feet brack-
ets on the lightbar to the vehicle roof and reposition mounting feet as
needed.
3. Install supplied vehicle specific hook brackets using supplied 1/4"-
20 x 2.5 Hex Head bolts onto the bar mounting foot as shown. Nut is
attached to mounting foot to prevent turning and improve ease of instal-
lation. If bolt ends come in contact with the mounting feet, reposition
the mounting feet.
4. Using the vehicle specific hook brackets as a template, drill 4
pilot holes using a #30 (.128 dia.) drill bit on each side of the vehicle.
5. Secure each vehicle specific hook brackets by using the 8 supplied
#8 x 1/2" Truss Head Sheetmetal screws, 4 per side.
6. Tighten each vehicle specific hook bracket to mounting foot by turn-
ing the 1/4" -20 x 2.5 Hex head bolt clockwise until bar is snug and no
side to side or fore to aft movement occurs. Tighten to 50 in lbs max
7. Route cables into vehicle. Use supplied rubber grommet in roof for
sealing/ protection of wires. It is recommended that silicone be placed
around grommet to ensure roof sealing.

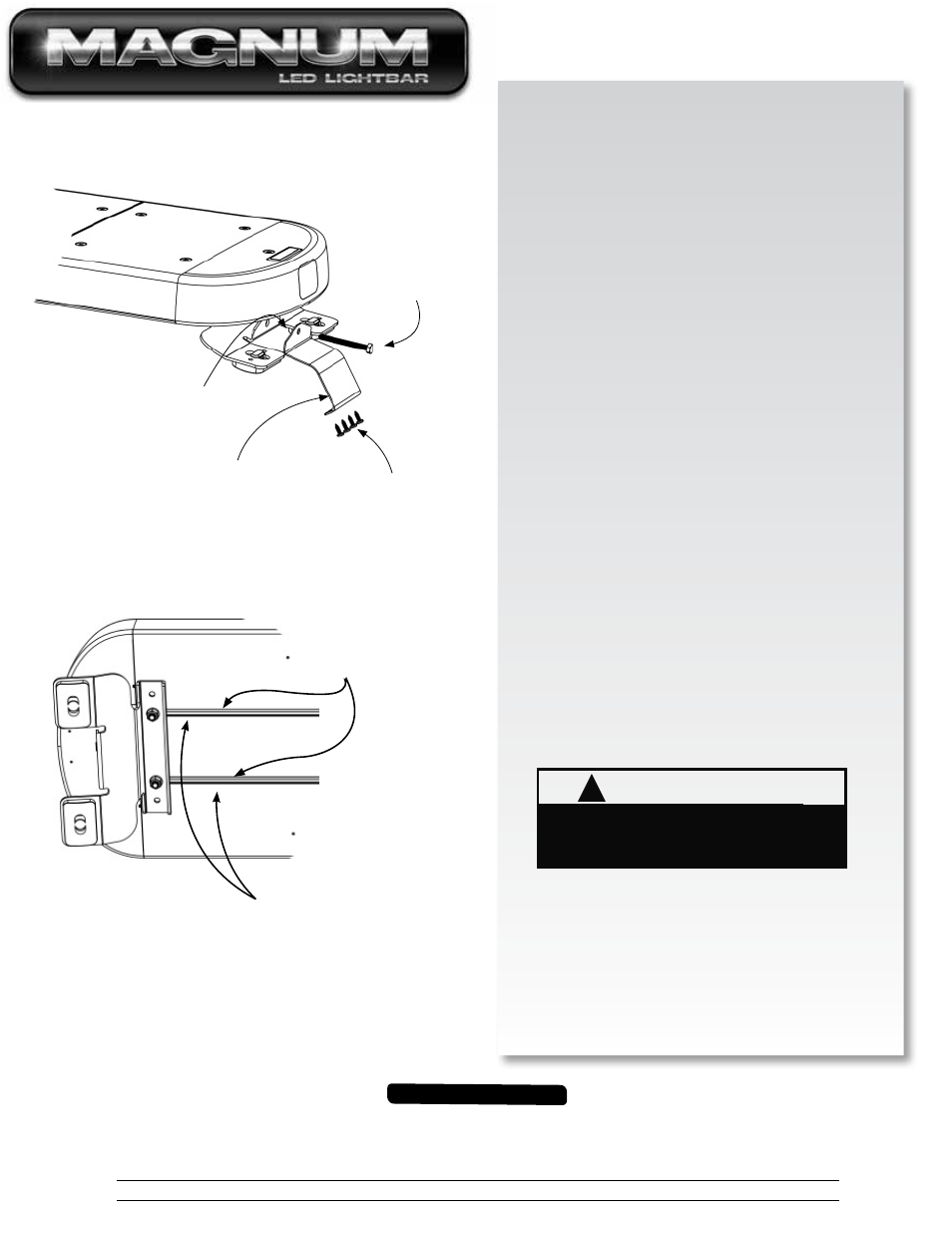

FIXED HEIGHT BRACKETS AND HOOK MOUNTING
1/4"-20 PEM nut
Vehicle Specific
Hook Bracket
1/4"-20 x 2.5" Hex
Head Bolt
#8 x 1/2" Truss Head
Sheet metal screws
!
WARNING
Route wires only in locations that are not subjected to
potential wear. Make sure to avoid routing wires in the
deployment area of your air bag. Refer to your vehicle’s
owner’s manual for airbag deployment zone.
#EMG2000 MAGNUM™ LED Lightbar
Low Profile Mounting Foot
T-slots for adjustability
for correct roof fit
T-Slot Gasket location
