SoundOff Signal Magnum LED - Manual (Page 3)

IMPORTANT INFORMATION:
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to [email protected].
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
POWER SPECIFICATIONS
Input Voltage Range: 10 -16 Vdc
Light Bar
Component
Current Draw
(Average = Flashing)
Power Consumption
(Watts)
Standby Current .022 Amps .28 Watts
Reverse Polarity Fuse Protected
Load Dump Protected
Wiring
Power Cable 15ft 10 AWG Wires, (+) Red, (-) Black
Data Cable 15ft RJ-45 Type
TECHNICAL SPECIFICATIONS
Material:
Aluminum Base, Nylon base end
caps, polycarbonate outer lenses,
acrylic inner lenses .
Roof Attachments: 1/4" bolt Stainless A2
Operating Temperature: -40º to +65º C
LENGTH # OF INBOARDS DIMENSIONS
23" 2
12.4"D x 2.3H
inboard
35.5" 4
41.8" 5
48" 6
54.3" 7
60.5" 8
73" 10
Wire Exit Holes
5/16 Carriage Bolts for
Mounting Feet of Lightbar

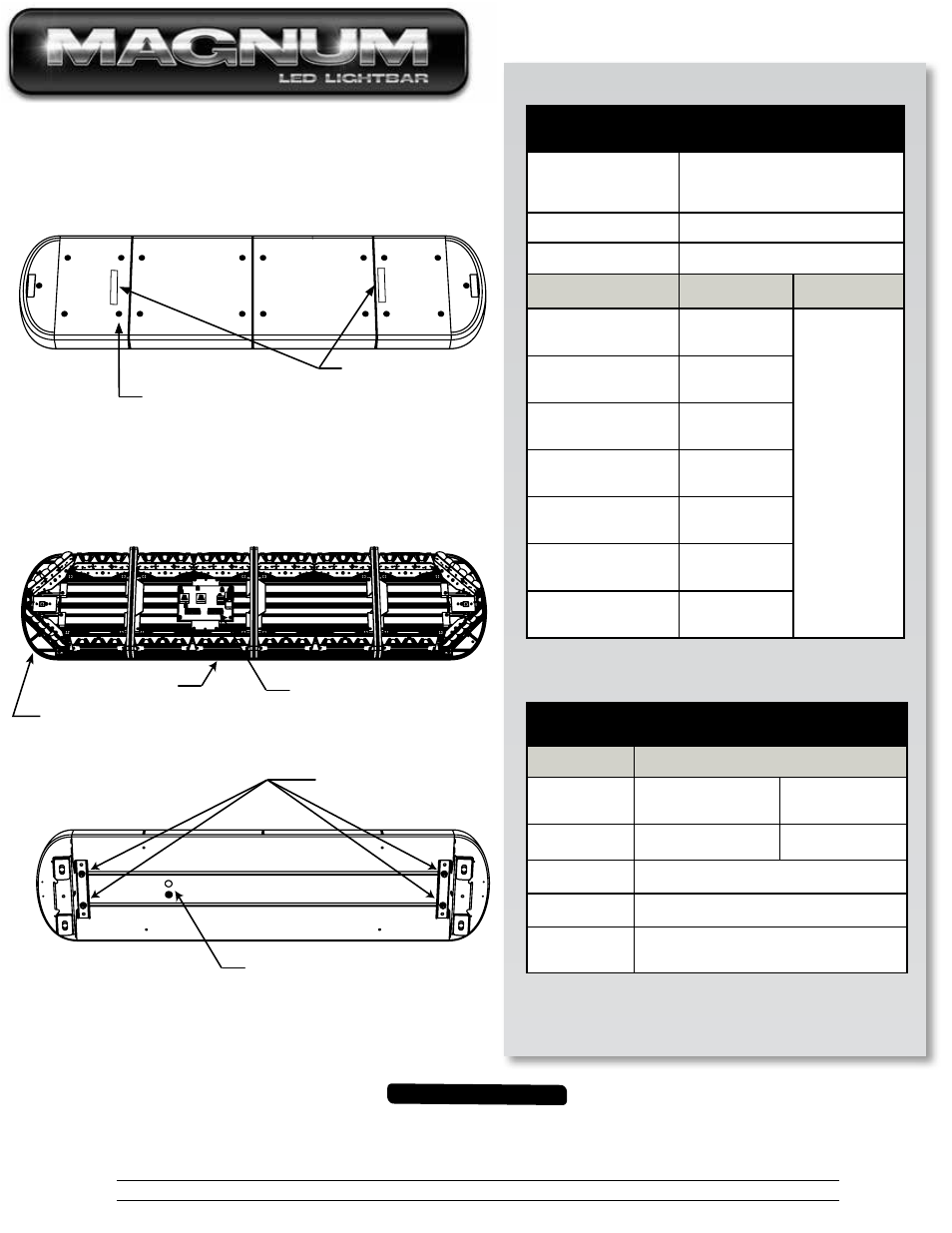

BOTTOM VIEW
TOP VIEW WITH COVERS OFF
TOP VIEW WITH COVERS ON
TOP COVER SCREWS
MODEL NUMBER
& SERIAL NUMBER
LOCATIONS
INBOARD LED MODULES
MAIN ELECTRICAL
BOARD
#EMG2000 MAGNUM™ LED Lightbar
CORNER MODULE
