Camera Mounting Bracket Dimensions (continued)

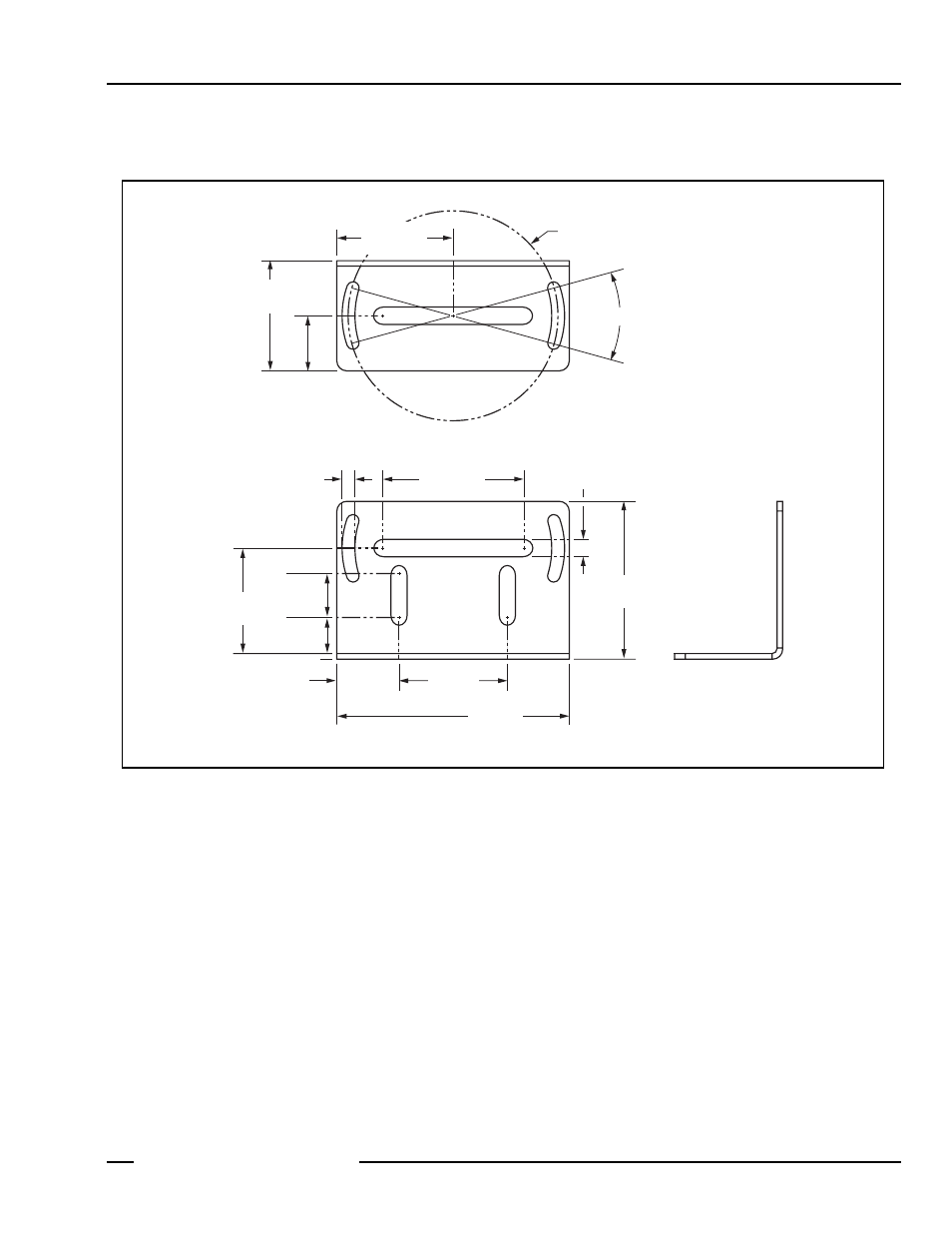

Bracket Model SMBPPRA (P/N 69381) Dimensions
43.5 mm)
( 1.69")
8 x 4.4 mm
(0.17")
65.0 mm
( 2.56")
30.0 mm
( 1.18")
2 x 40.0 mm
( 1.57")
17.5 mm
( 0.69")
15.0 mm
( 0.59")
30.0 mm
( 1.18")
4 x 3.50 mm
(0.14")
2 x ø58.5 mm
( ø2.30")
4 x 30°
29.0 mm
( 1.14")
12.0 mm
( 0.47")
10.0 mm
( 0.39")
2 x 32.5 mm
( 1.28")
